Product Description

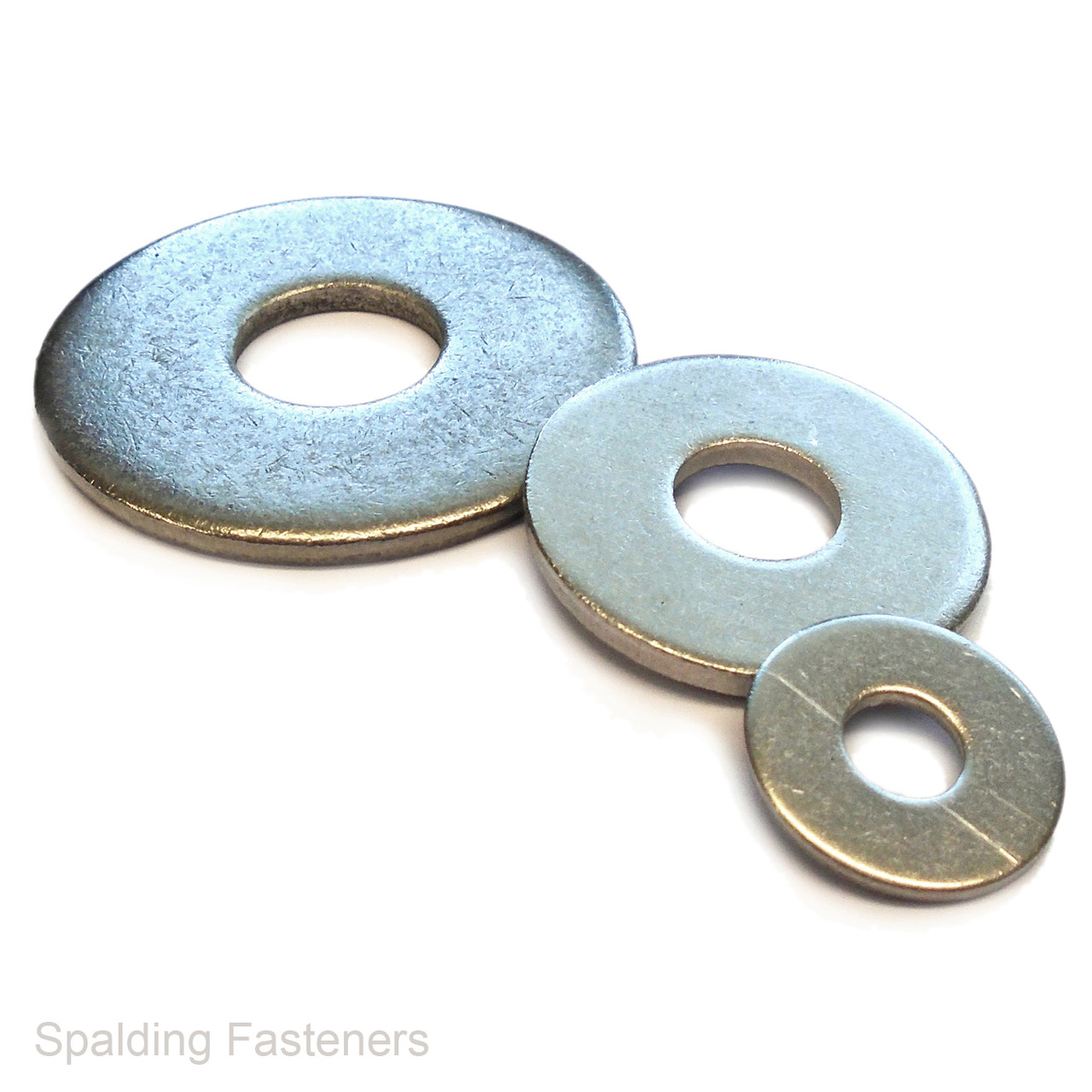

196 Assorted A2 Stainless Steel Form G Flat Washers – M3 to M16
A 196-piece assortment of A2 stainless steel Form G flat washers, covering nine metric sizes from M3 to M16. Their broad bearing surface helps spread the clamping load beneath a bolt head or nut.
Specifications
- Material: A2 stainless steel.
- Type: Form G flat washers.
- Sizes included: M3, M4, M5, M6, M8, M10, M12, M14 and M16.
- Total quantity: 196 washers.
- Available as a boxed set or refill pack.
Contents and Dimensions
The M size identifies the nominal screw or bolt size, not the measured washer hole diameter. Dimensions below are in millimetres and are provided as a guide.
| Nominal Size | Outside Diameter | Thickness | Quantity |
|---|---|---|---|
| M3 | 8.7 | 0.8 | 30 |
| M4 | 12 | 1.0 | 30 |
| M5 | 15 | 1.2 | 30 |
| M6 | 18 | 1.6 | 40 |
| M8 | 24 | 2.0 | 35 |
| M10 | 30 | 2.5 | 15 |
| M12 | 36 | 3.0 | 10 |
| M14 | 44 | 3.0 | 4 |
| M16 | 50 | 3.0 | 2 |
| Total | 196 | ||
Packaging Options
- Boxed set: supplied in a clear storage box with a clip-down lid.
- Refill pack: supplied without a storage box.
Selecting the Correct Washer
Select the washer to suit the bolt diameter and check that its outside diameter fits the available space. Allow for the washer thickness when choosing the bolt length. If dimensions are critical to your application, please confirm them before ordering.
Browse our washer range and nuts, or consult our washer size guide for help choosing suitable components.
