Product Description
150-Piece A2 Stainless Steel Penny Repair Washer Assortment

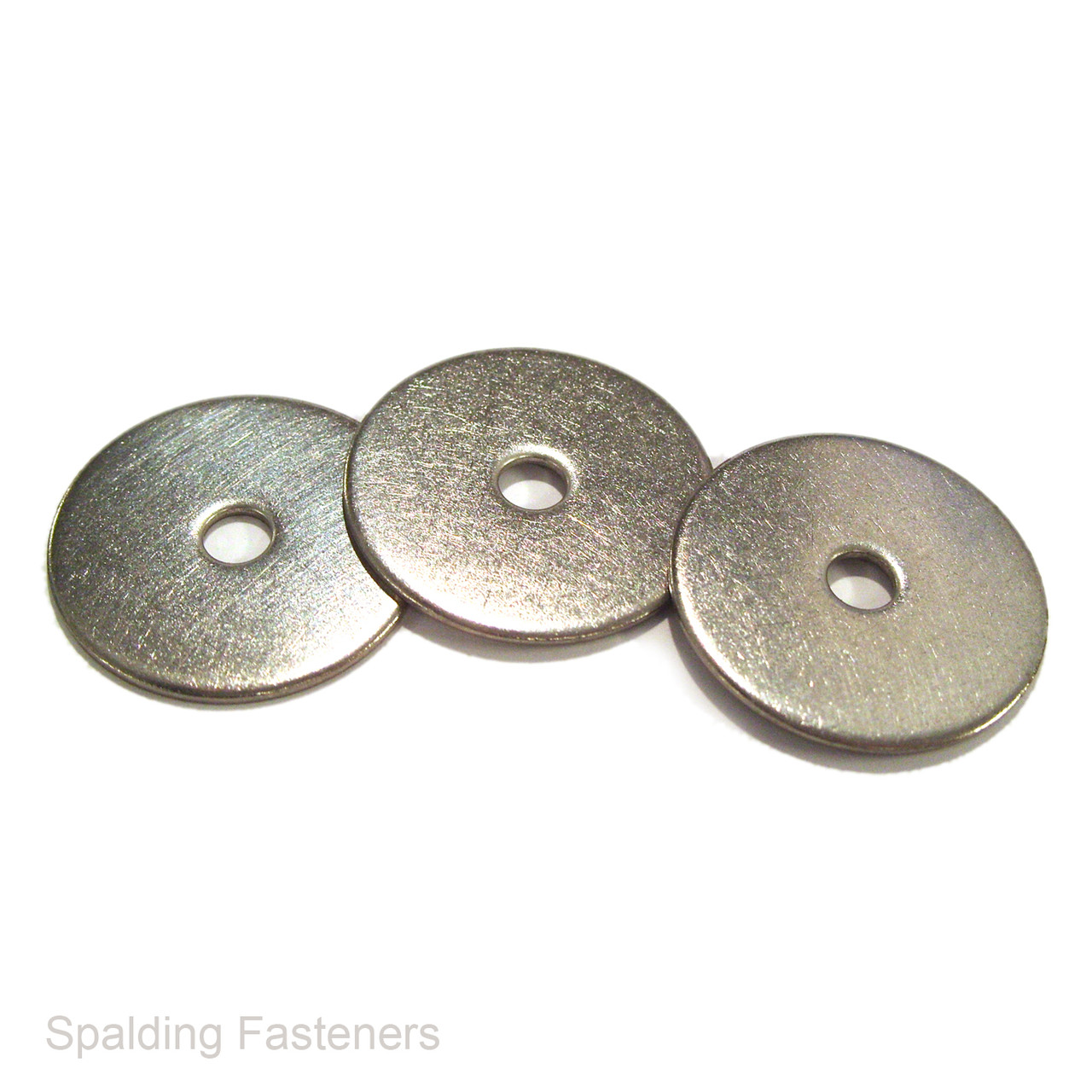

A selection of large diameter penny repair washers and M8 Form C flat washers in A2 stainless steel. Their broad bearing surface helps spread the clamping load around a fixing hole.
Specifications
- Material: A2 stainless steel.
- Types: penny repair washers and Form C flat washers.
- Suitable nominal fixing sizes: M4, M5, M6, M8 and M10.
- Total quantity: 150 washers.

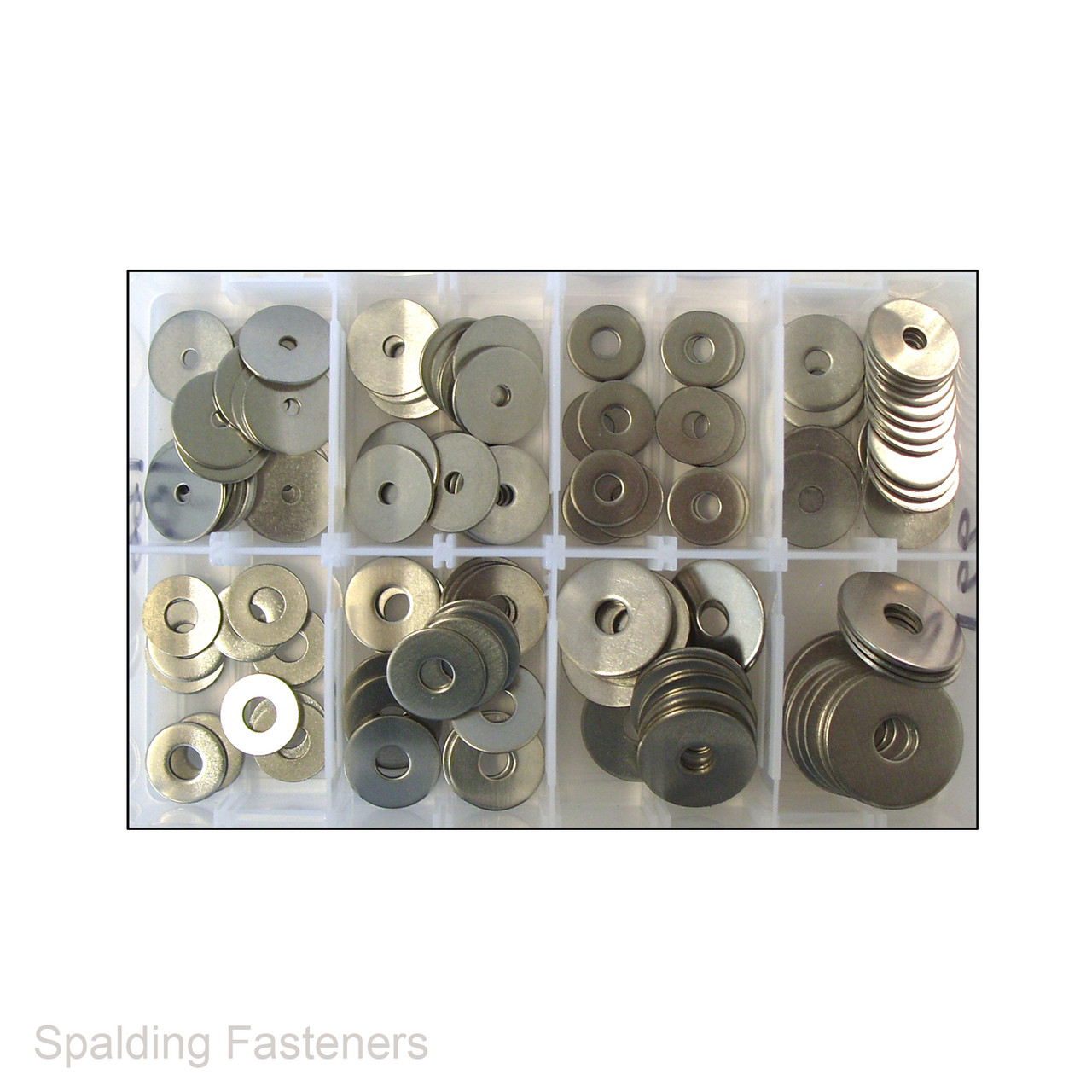

Pack Contents
| Nominal Fixing Size | Washer Type | Outside Diameter | Quantity |
|---|---|---|---|
| M4 | Penny repair | 25mm | 22 |
| M5 | Penny repair | 25mm | 20 |
| M6 | Penny repair | 20mm | 40 |
| M8 | Form C flat | 21mm nominal | 18 |
| M8 | Penny repair | 25mm | 18 |
| M8 | Penny repair | 30mm | 17 |
| M10 | Penny repair | 35mm | 15 |
Dimensional Reference
Reference dimensions for the corresponding washer sizes. All measurements are in millimetres. The M8 Form C dimensions follow BS 4320.
| Washer Size | Inside Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| M4 x 25 | 4.30–4.50 | 25 | 1.25–1.50 |
| M5 x 25 | 5.30–5.50 | 25 | 1.30–1.50 |
| M6 x 20 | 6.40–6.70 | 20 | 1.30–1.50 |
| M8 Form C | 8.40–8.70 | 20.50–21.00 | 1.40–1.80 |
| M8 x 25 | 8.40–8.70 | 25 | 1.30–1.50 |
| M8 x 30 | 8.40–8.70 | 30 | 1.30–1.50 |
| M10 x 35 | 10.50–10.90 | 35 | 1.30–1.50 |
Packaging Options

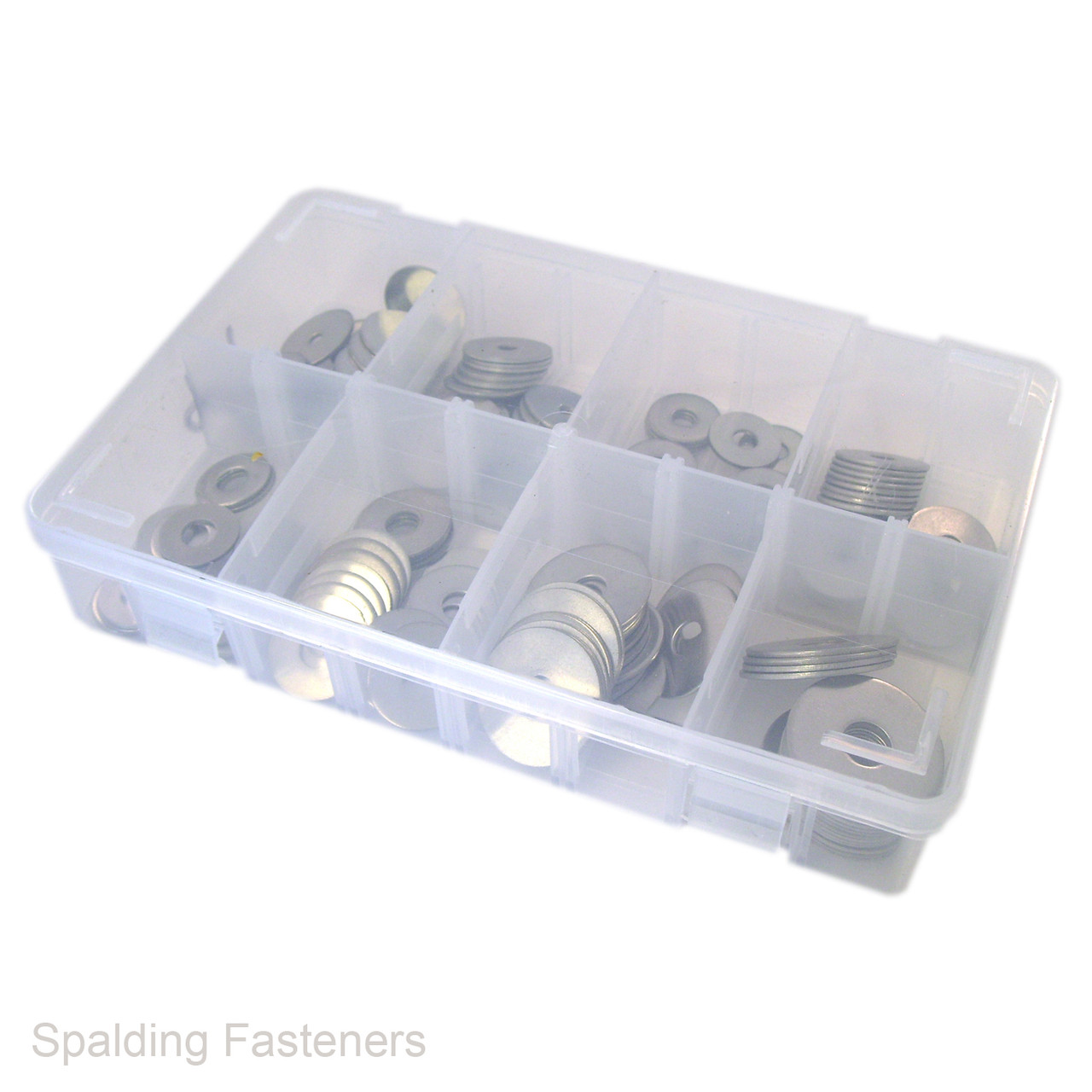

Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
Choosing a Washer
The M size identifies the nominal bolt or screw size. Check that the outside diameter provides sufficient coverage and that the washer sits flat against the workpiece.
