Product Description

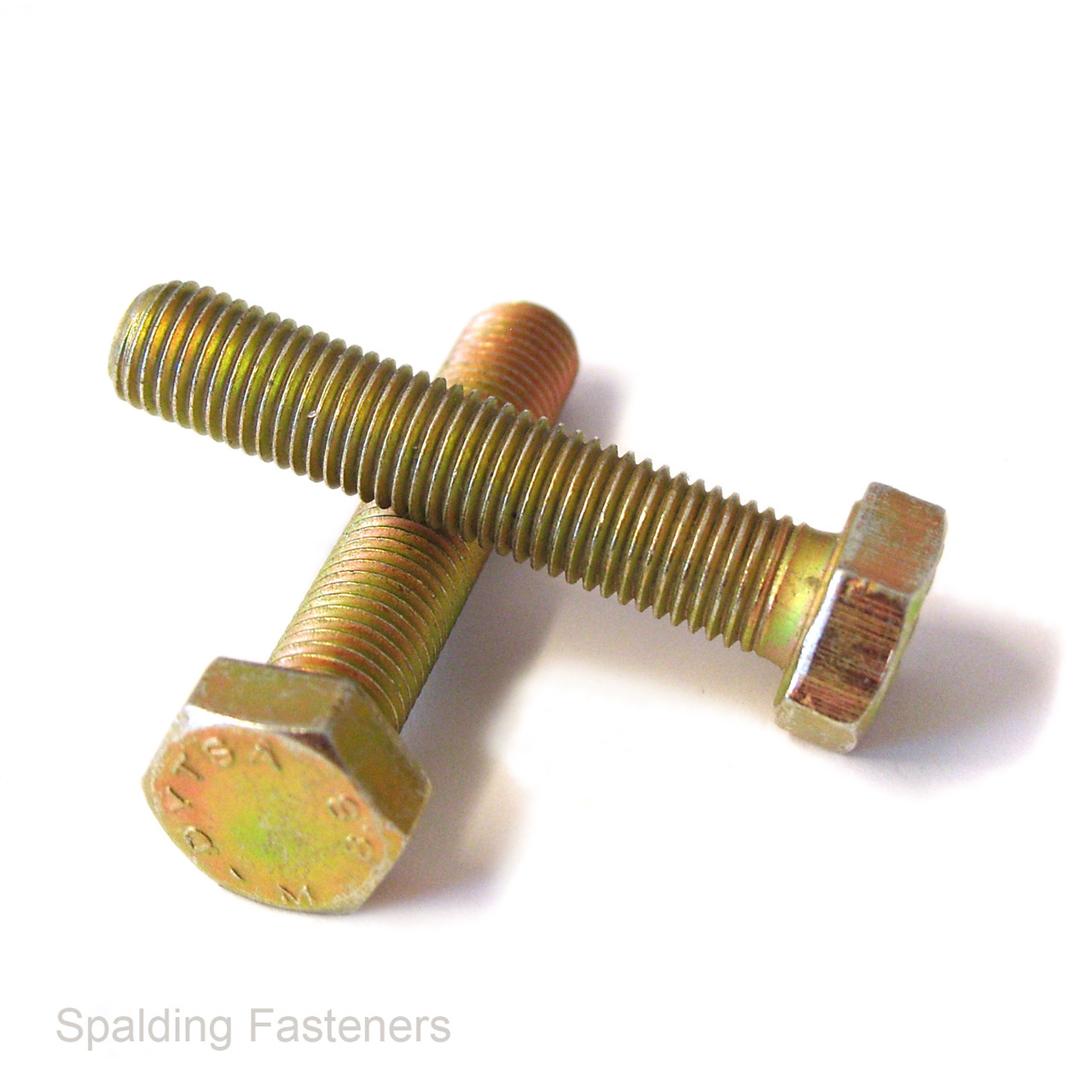

1/2" UNF Grade 8 Hex Head Set Screws – Yellow Zinc
These 1/2" UNF Grade 8 hex head set screws are made from high tensile steel with a yellow zinc plated finish. Their fully threaded shank provides thread engagement along the screw length, and the hexagon head can be tightened with a 3/4" spanner or socket.
The thread is 1/2"-20 UNF, with 20 threads per inch. Choose from four lengths: 3/4", 1 1/4", 1 1/2" or 1 3/4". Length is measured from the underside of the head to the tip.
Key Features
- SAE Grade 8 high tensile steel
- Yellow zinc plated finish
- 1/2"-20 UNF fine thread, 20 TPI
- Fully threaded shank
- External hexagon head for a 3/4" spanner or socket
- Four imperial length options and several pack quantities
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Fully threaded hexagon head set screw |
| Material | High tensile steel |
| Strength grade | SAE Grade 8 |
| Finish | Yellow zinc plated |
| Thread size | 1/2"-20 UNF |
| Threads per inch | 20 TPI |
| Thread pitch equivalent | 1.27 mm |
| Nominal thread diameter | 1/2" / 12.7 mm |
| Thread coverage | Fully threaded |
| Spanner or socket size | 3/4" across flats |
| Length measurement | Underside of head to tip |
Available Lengths
| Length | Approximate Metric Equivalent | Thread Coverage |
|---|---|---|
| 3/4" | 19.05 mm | Fully threaded |
| 1 1/4" | 31.75 mm | Fully threaded |
| 1 1/2" | 38.10 mm | Fully threaded |
| 1 3/4" | 44.45 mm | Fully threaded |
Metric equivalents are provided as a guide. Select the required imperial length from the product options.
Applications
For machinery, equipment assembly, vehicle restoration and maintenance work where a 1/2"-20 UNF Grade 8 fully threaded fastener is specified. Check the joint requirements and use a matching UNF thread.
Related Products and Thread Information
For a matching nut, see our 1/2" UNF Grade 8 yellow zinc hexagon full nuts. You can also view our 3/8" UNF Grade 8 yellow zinc hex head set screws or use the thread data guide to check UNF sizes and pitches.
