Product Description
M5 A2 Stainless Steel Socket Button Screw, Nut & Washer Kit – 165 Pieces
A 165-piece assortment of M5 A2 stainless steel fasteners, combining socket button head screws in six lengths with matching plain nuts, nyloc nuts and flat washers. A practical selection for assembly, maintenance and workshop repairs.

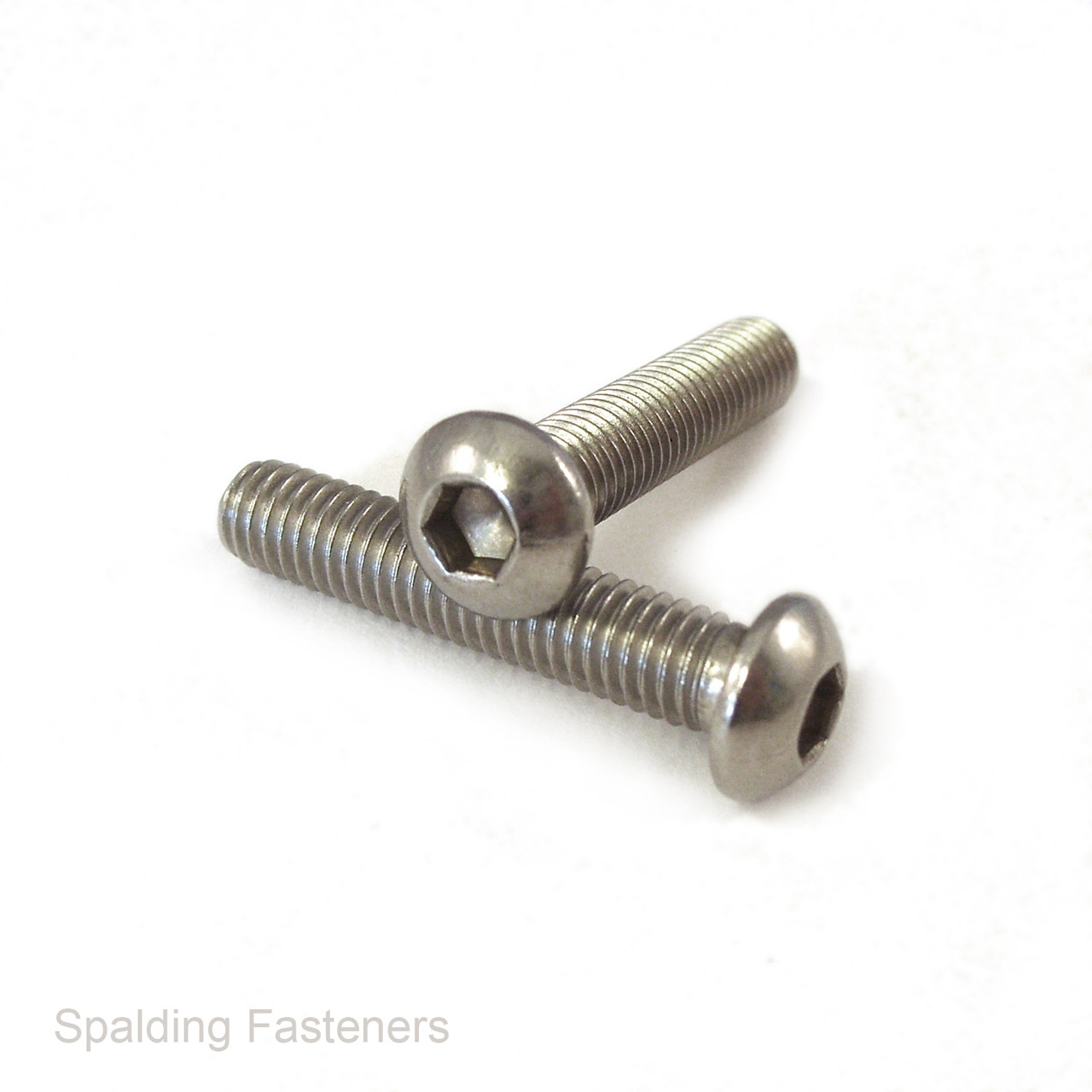

The rounded button heads provide a low profile finish, with an internal hexagon drive for a 3mm hex key. All screws and nuts have an M5 x 0.8mm metric coarse thread.
Specifications
- Material: A2 stainless steel for corrosion resistance.
- Thread size: M5.
- Thread pitch: 0.8mm metric coarse.
- Screw type: Hexagon socket button head, ISO 7380-1.
- Hex key size: 3mm.
- Head diameter: 9.14–9.50mm.
- Head height: 2.50–2.75mm.
- Screw lengths: 10mm to 50mm, measured from beneath the head.

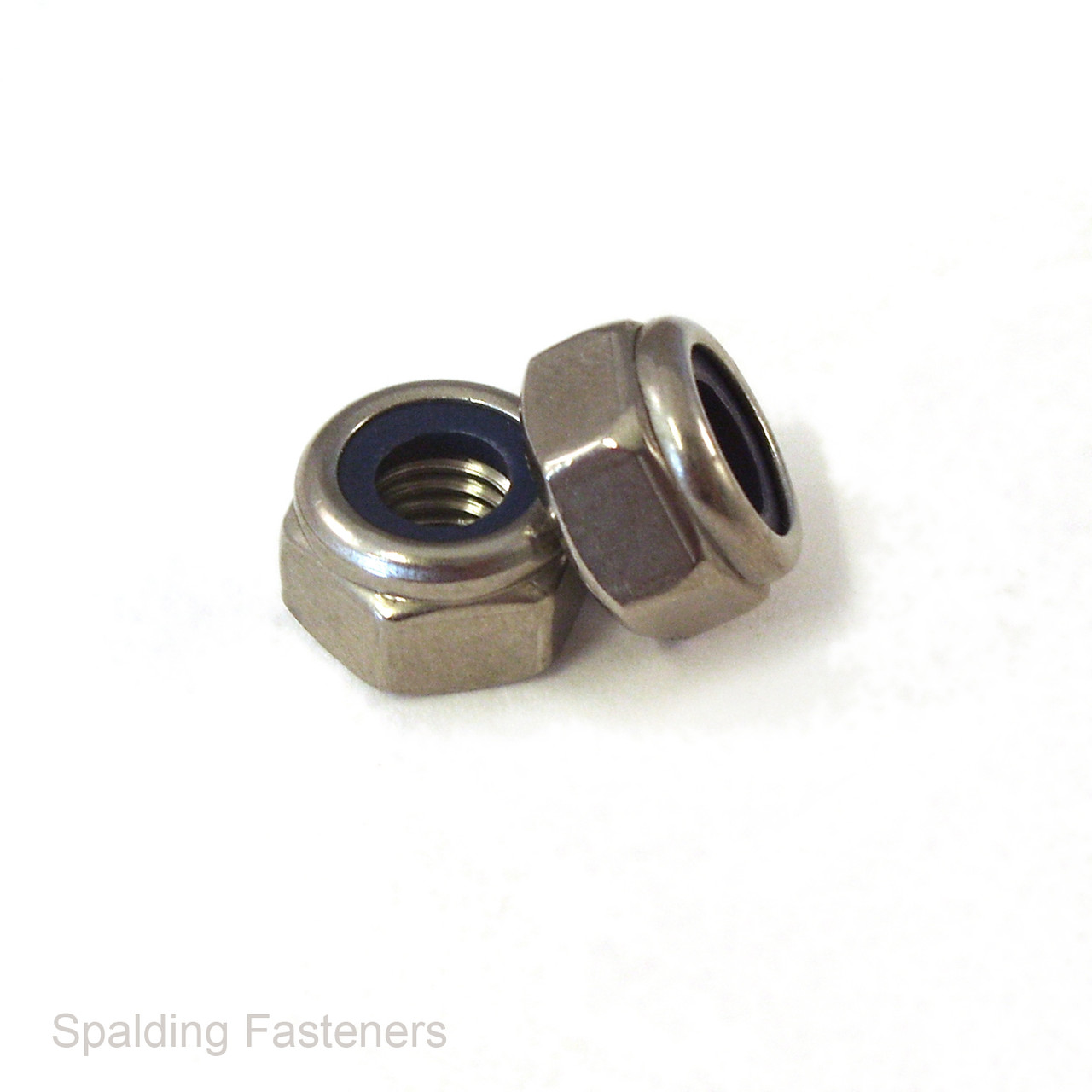

- Nut types: Plain hexagon nuts and nylon insert locking nuts.
- Washer type: Flat washers.
- Total quantity: 165 pieces.
Kit Contents
| Component | Size | Quantity |
|---|---|---|
| Socket button head screws | M5 x 10mm | 15 |
| Socket button head screws | M5 x 20mm | 10 |
| Socket button head screws | M5 x 25mm | 10 |
| Socket button head screws | M5 x 30mm | 8 |
| Socket button head screws | M5 x 40mm | 6 |
| Socket button head screws | M5 x 50mm | 6 |
| Plain hexagon nuts | M5 x 0.8mm | 28 |
| Nyloc nuts | M5 x 0.8mm | 27 |
| Flat washers | M5 | 55 |
Packaging Options
- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

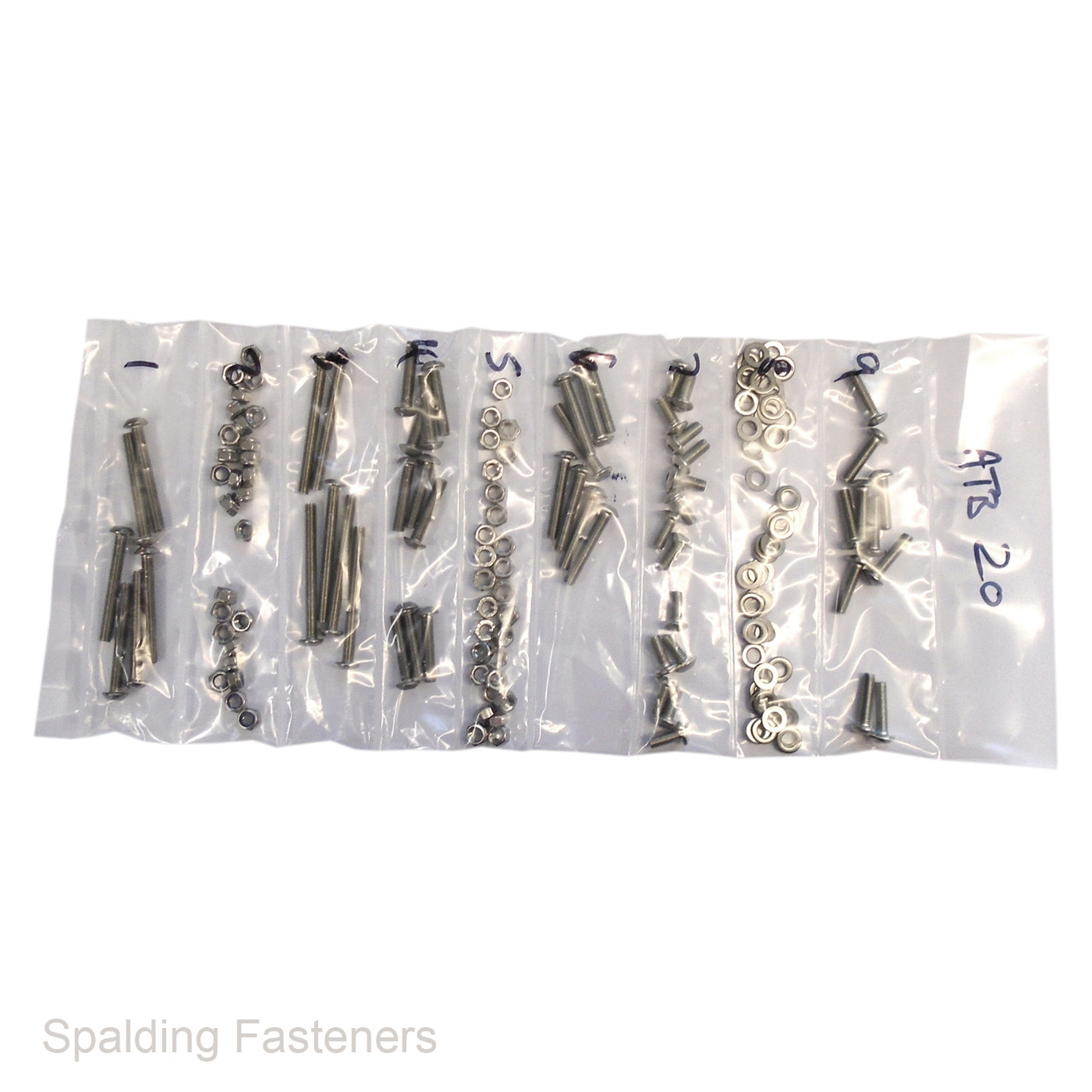

- Refill pack: Supplied without a storage box.
Select the boxed kit or refill pack when ordering.
