Product Description
A2 Stainless Steel Raised Countersunk Pozi Self Tapping Screw Kit – 300 Pieces
This 300-piece assortment contains A2 stainless steel raised countersunk Pozi self tapping screws in No.6, No.8 and No.10 sizes. Each diameter is supplied in three lengths, providing a useful selection for maintenance, repairs and general assembly.

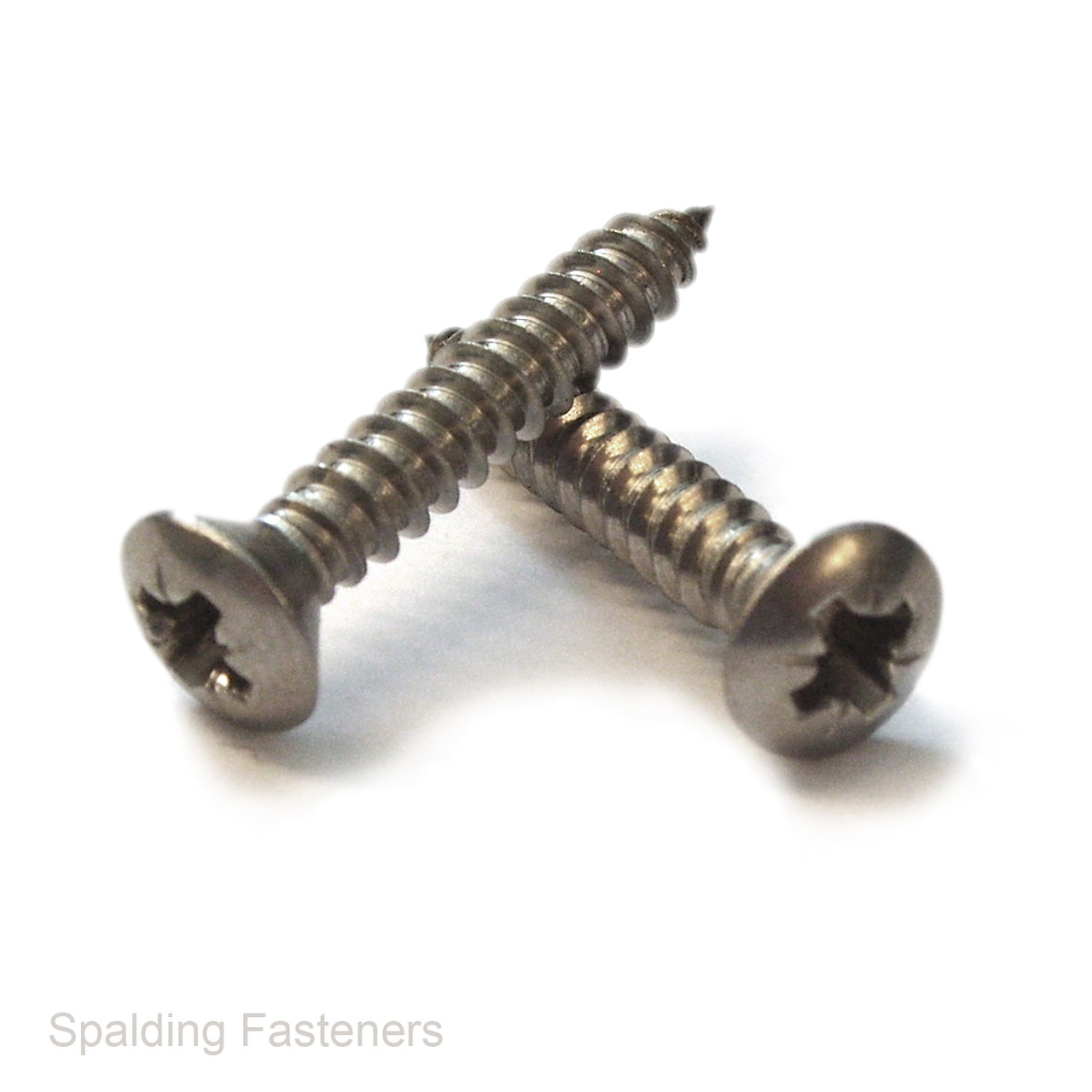

The raised countersunk head combines a tapered underside with a gently domed top for a neat, visible finish on trims, panels and fittings. A2 stainless steel provides corrosion resistance for general indoor and outdoor applications.
Product Specifications
- Material: A2 stainless steel
- Head type: Raised countersunk / oval head
- Drive: Pozi / Pozidriv
- Driver size: PZ2 throughout the assortment
- Thread type: Self tapping
- Size range: No.6, No.8 and No.10
- Nominal diameters: 3.5mm, 4.2mm and 4.8mm
- Lengths: 13mm, 19mm and 25mm
- Total quantity: 300 screws across nine sizes
- Packaging: Divided plastic box with clip-down lid, or refill pack without a box
Kit Contents
| Screw Size | Metric Size | Quantity |
|---|---|---|
| No.6 × 1/2" | 3.5 × 13mm | 50 |
| No.6 × 3/4" | 3.5 × 19mm | 50 |
| No.6 × 1" | 3.5 × 25mm | 40 |
| No.8 × 1/2" | 4.2 × 13mm | 40 |
| No.8 × 3/4" | 4.2 × 19mm | 40 |
| No.8 × 1" | 4.2 × 25mm | 35 |
| No.10 × 1/2" | 4.8 × 13mm | 15 |
| No.10 × 3/4" | 4.8 × 19mm | 15 |
| No.10 × 1" | 4.8 × 25mm | 15 |
DIN 7983 Head and Drive Dimensions
Reference dimensions for raised countersunk Pozi self tapping screws are shown below. Dimensions are in millimetres.
| Size | Head Diameter | Raised Crown Height | Pozi Drive |
|---|---|---|---|
| No.6 / 3.5mm | 6.44–6.80 | 1.20 | PZ2 |
| No.8 / 4.2mm | 7.74–8.10 | 1.40 | PZ2 |
| No.10 / 4.8mm | 9.14–9.50 | 1.50 | PZ2 |
Installation
Prepare a suitable pilot hole for the screw diameter, material and thickness being fastened. Form a matching countersink so the tapered underside seats correctly, leaving the rounded crown above the surface.
Use a correctly fitting PZ2 Pozidriv screwdriver or bit and tighten carefully to avoid damaging the recess or stripping the mating thread.

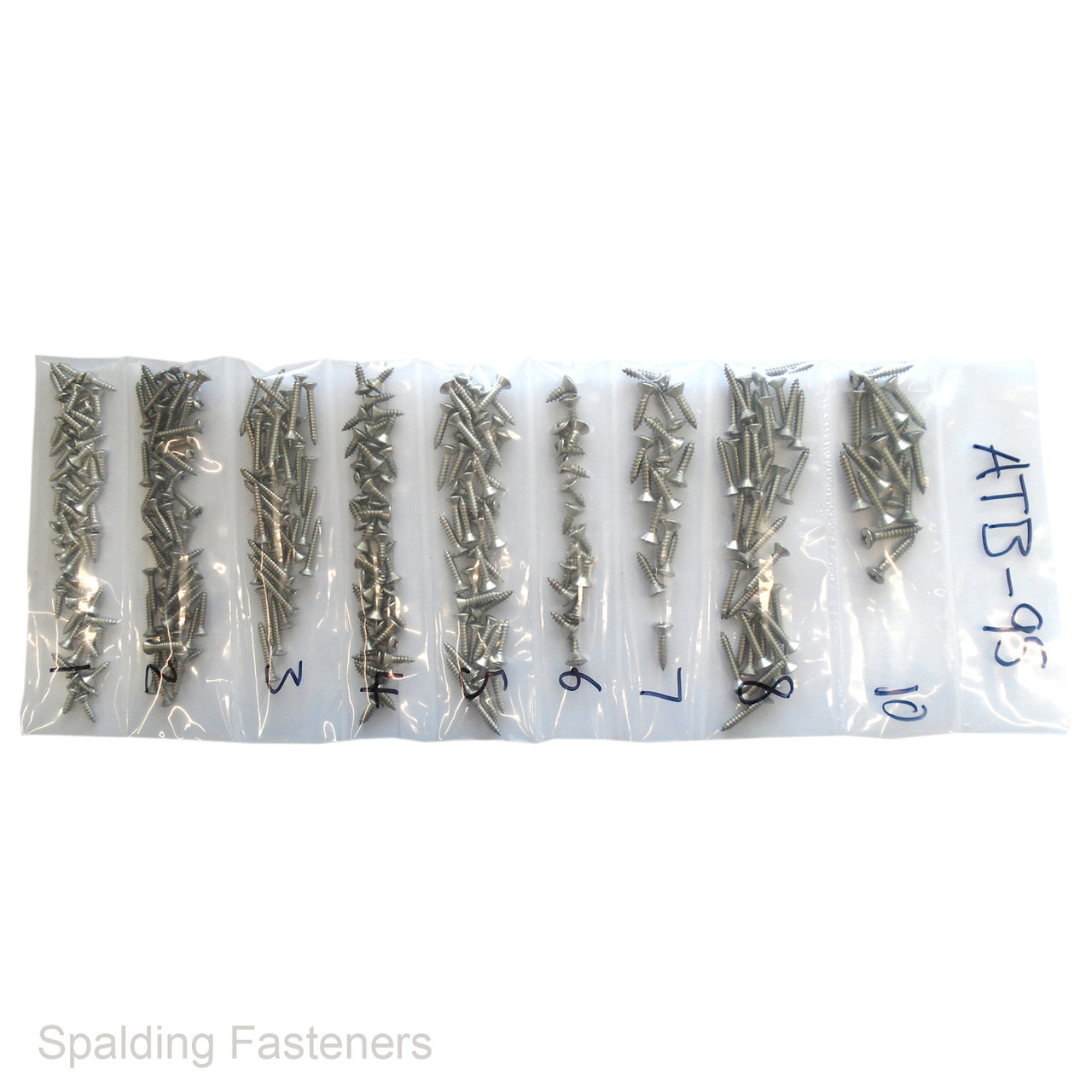

Boxed Kit or Refill Pack
Choose the boxed assortment to keep the nine sizes separated and easy to identify, or select the refill pack to replenish your existing organiser. Refill packs are supplied without a box.
