Product Description

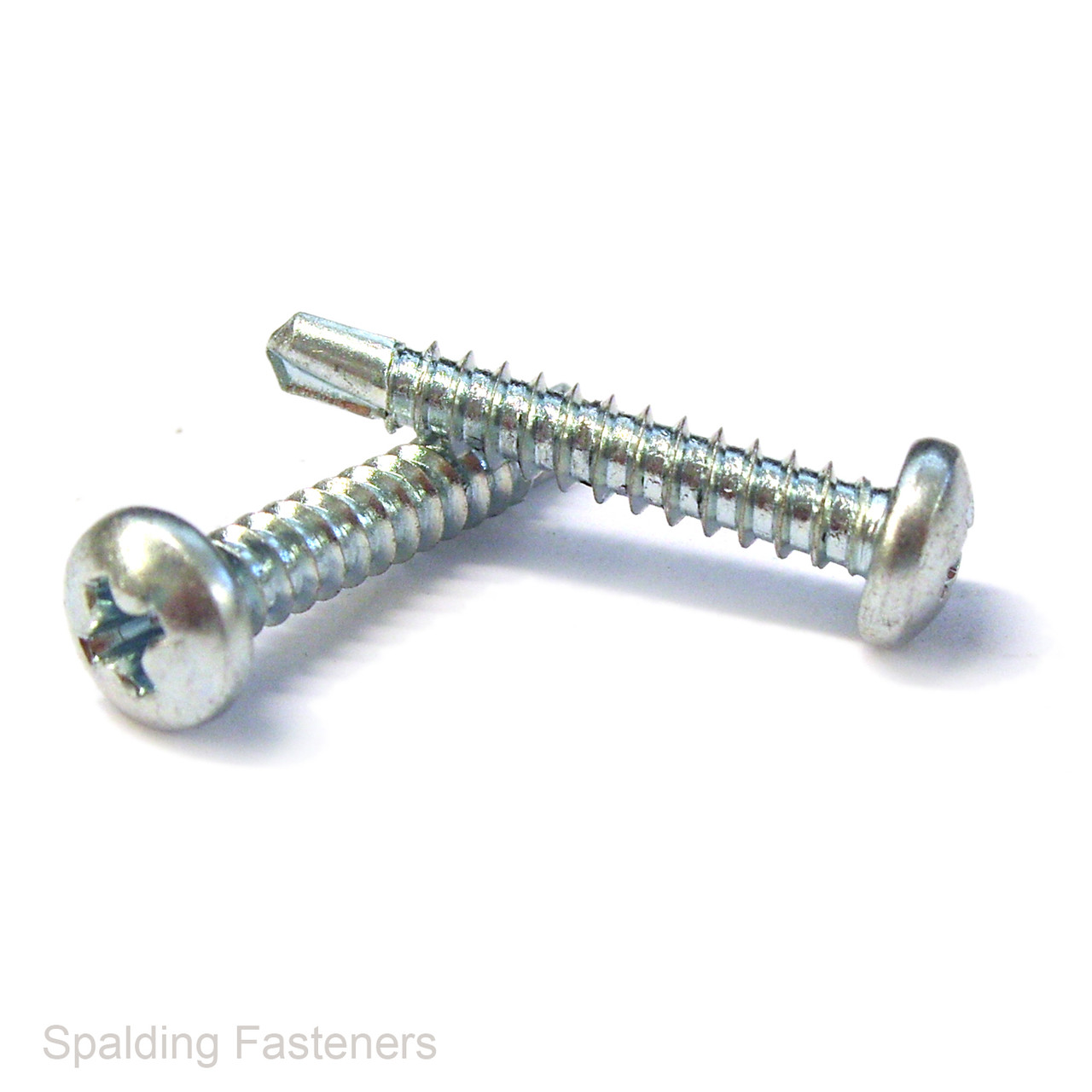

No.14 Zinc Plated Pan Phillips Self Drilling Screws – DIN 7504
No.14 (6.3mm) pan head self drilling screws manufactured from case-hardened steel with a zinc plated finish. These Phillips drive fasteners combine a drill point with a self-tapping thread for wood-to-steel fixing and compatible sheet-metal applications.
Product Specifications
| Screw Size | No.14 |
|---|---|
| Nominal Thread Diameter | 6.3mm |
| Listed Length | 1", approximately 25mm |
| Material | Case-hardened steel |
| Finish | Zinc plated |
| Standard | DIN 7504 – pan head pattern |
| Head Style | Pan |
| Drive Type | Phillips |
| Drill Point | No.3 |
| Listed Head Diameter | 12.5mm |
| Listed Head Height | 4.55mm |
Length is measured from beneath the head to the tip. Listed dimensions are provided as a guide.
Key Features
- Self drilling point drills the pilot hole in suitable steel.
- Self-tapping thread forms the mating thread during installation.
- Pan head provides a raised bearing surface above the fixture.
- Zinc plating provides added corrosion protection.
Selection and Installation
Use a matching Phillips driver bit. Check that the screw length and drill point suit the combined material thickness and required engagement in the steel.
The drill point must pass through the steel before the thread engages. A No.3 point designation alone does not specify the permissible steel thickness.
Select your required pack quantity before ordering.
