Product Description
M8 Zinc Plated Steel Pan Pozi Machine Screws – DIN 7985

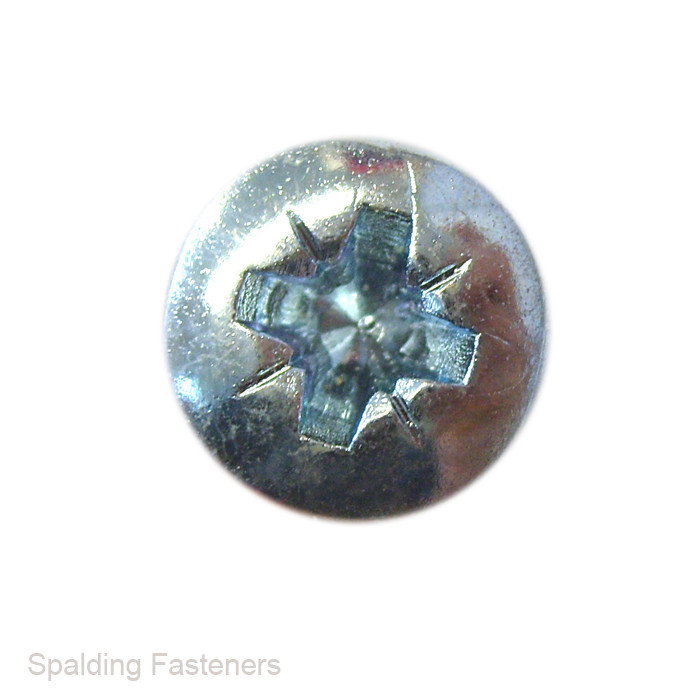

M8 x 25mm pan head machine screws manufactured from zinc plated steel. These screws feature a rounded pan head with a flat bearing surface and a PZ4 Pozidriv recess for installation using a matching screwdriver or bit.
The M8 x 1.25mm metric coarse thread fits matching tapped holes or compatible M8 nuts. Zinc plating provides a protective finish to help resist corrosion.
Technical Specifications
| Thread size | M8 |
|---|---|
| Thread pitch | 1.25mm – metric coarse |
| Screw length | 25mm |
| Material | Steel |
| Finish | Zinc plated |
| Head style | Pan head |
| Drive type | Pozi / Pozidriv |
| Driver size | PZ4 |
| Head diameter | 16mm maximum |
| Head height | 6.15mm maximum |
| Dimensional standard | DIN 7985, Type Z recess |
| Length measurement | From beneath the head to the tip |
Key Features
- Pan head provides a flat bearing surface against the component.
- PZ4 drive for use with a matching Pozidriv tool.
- Zinc plated steel construction.
- M8 standard metric coarse thread.
Typical Applications
Suitable for panels, brackets, enclosures, equipment assembly and general repairs where an M8 pan head machine screw is required.
Ordering Information
Available in M8 x 25mm, in packs of 5, 10, 20, 50 or 100 screws. Length is measured from beneath the head.
