Product Description
1/4" UNF A2 stainless steel socket cap set screws, fully threaded for general engineering, automotive, machinery, fabrication, repair and maintenance applications. These imperial fine thread fasteners are manufactured from A2 stainless steel, giving good corrosion resistance for general indoor, outdoor and damp environments.

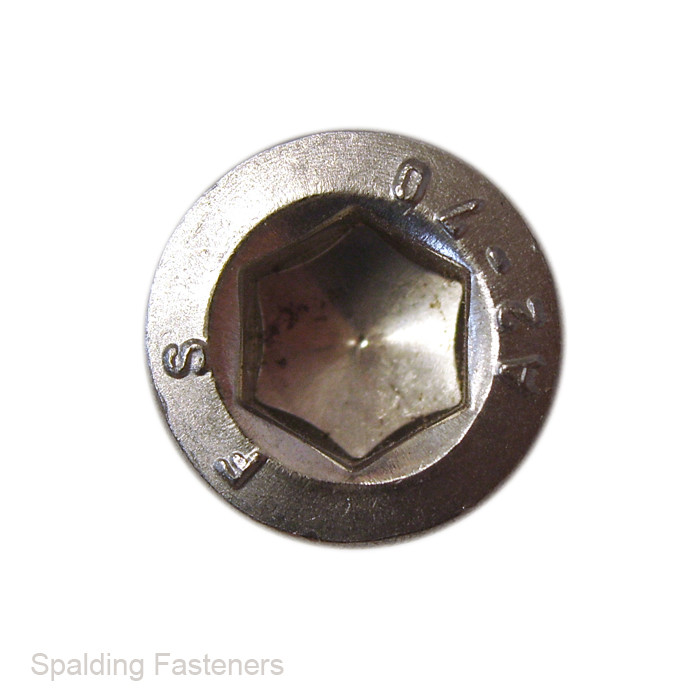

The cylindrical socket cap head uses a hex socket / Allen key drive, allowing secure installation and good tool engagement where a strong socket head fixing is required. These 1/4" UNF socket cap screws have a 28 TPI Unified National Fine thread and use a 3/16" Allen key size.
For imperial UNF socket cap screws, the suitable standard reference is ASME B18.3 for socket cap screw dimensions, with ASME B1.1 covering the UNF thread form.
- 1/4" UNF socket cap set screws
- A2 stainless steel
- Fully threaded
- 28 TPI UNF fine thread
- Hex socket / Allen key drive
- 3/16" Allen key size
- ASME B18.3 / ASME B1.1 style
- Lengths from 1/2" to 1 1/4"
- Available in small and bulk pack sizes
Also known as UNF socket cap screws, stainless Allen bolts, imperial fine thread socket screws, cap head screws, hex socket screws and A2 stainless UNF cap screws.
| A | B | C | D | E | F |
| 1/4" | 1 1/4" | 0.37" | 0.27" | 3/16" | 28 |
| 1/4" | 1" | 0.37" | 0.27" | 3/16" | 28 |
| 1/4" | 5/8" | 0.37" | 0.27" | 3/16" | 28 |
| 1/4" | 1/2" | 0.37" | 0.27" | 3/16" | 28 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
