Product Description

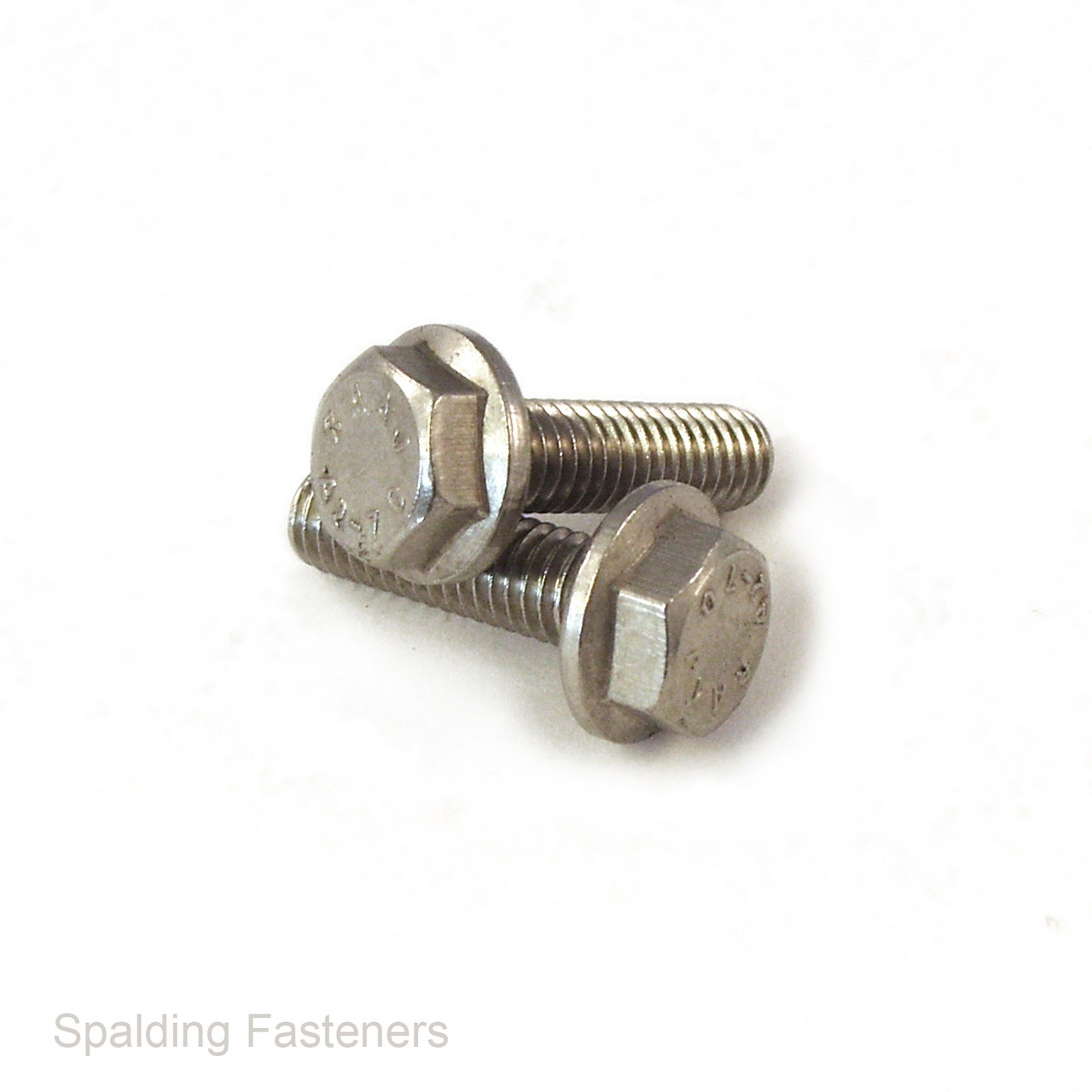

M5 metric A2 stainless steel hexagon flange set screws, fully threaded and manufactured to DIN 6921. These flange head set screws are made from A2 stainless steel, giving good corrosion resistance for general indoor, outdoor and damp applications.

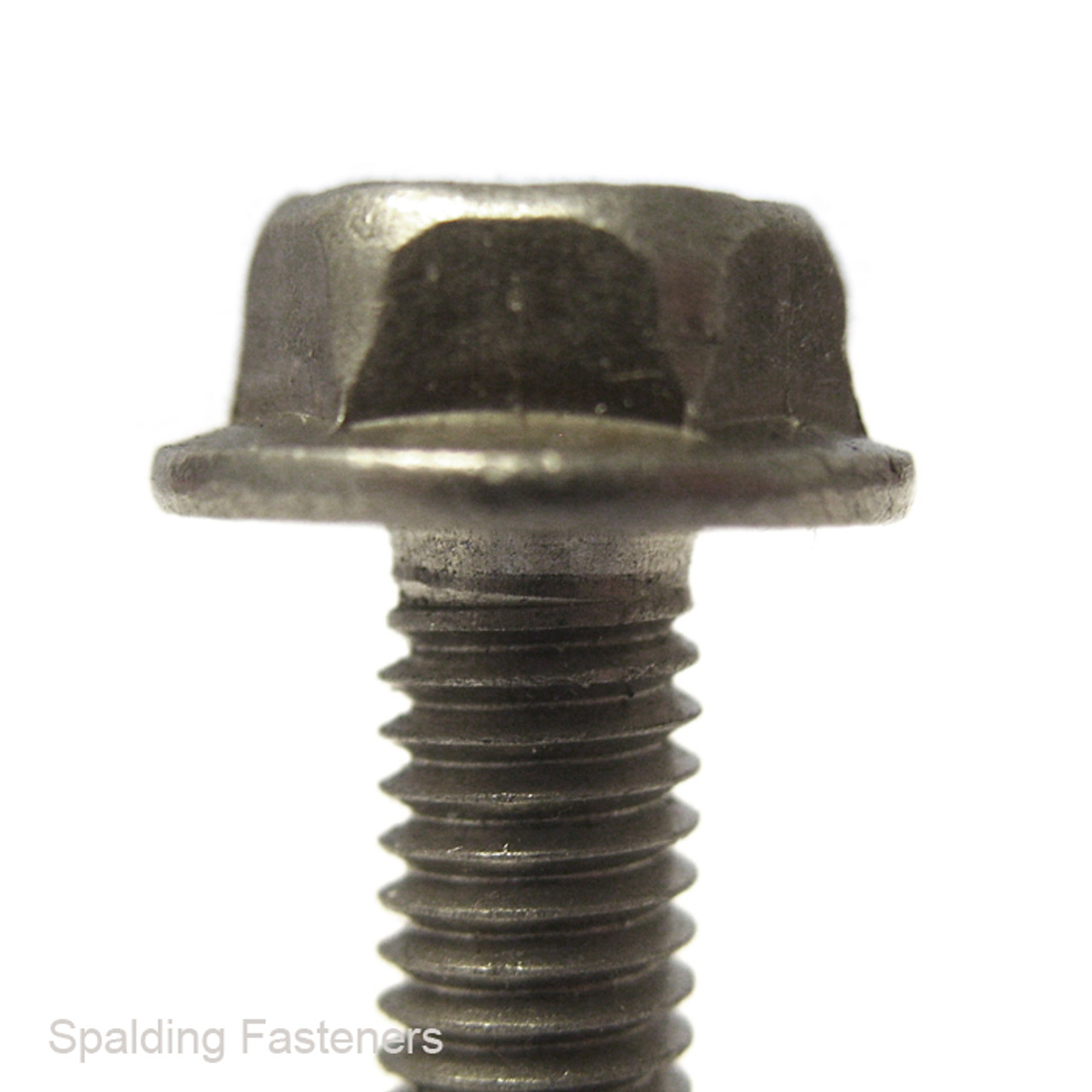

The hexagon head allows installation with a standard spanner or socket, while the integrated flange provides a wider bearing surface under the head. This helps spread load and can reduce the need for a separate washer in many applications.
These M5 flange set screws have a standard metric coarse M5 x 0.8mm thread pitch and use an 8mm spanner size. Available in lengths from 10mm to 50mm, with pack sizes suitable for single repairs, workshop use and bulk stock.
- M5 metric hexagon flange set screws
- A2 stainless steel
- Fully threaded
- DIN 6921 standard
- Metric coarse thread
- M5 x 0.8mm pitch
- 8mm spanner size
- Integrated flange head
- Lengths from 10mm to 50mm
- Available in small and bulk pack sizes
| A | B | C | D | E | F |
| 5mm | 10mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 16mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 20mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 25mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 30mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 35mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 40mm | 10.7mm | 5.4mm | 8mm | 0.8 |
| 5mm | 50mm | 10.7mm | 5.4mm | 8mm | 0.8 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
