Product Description

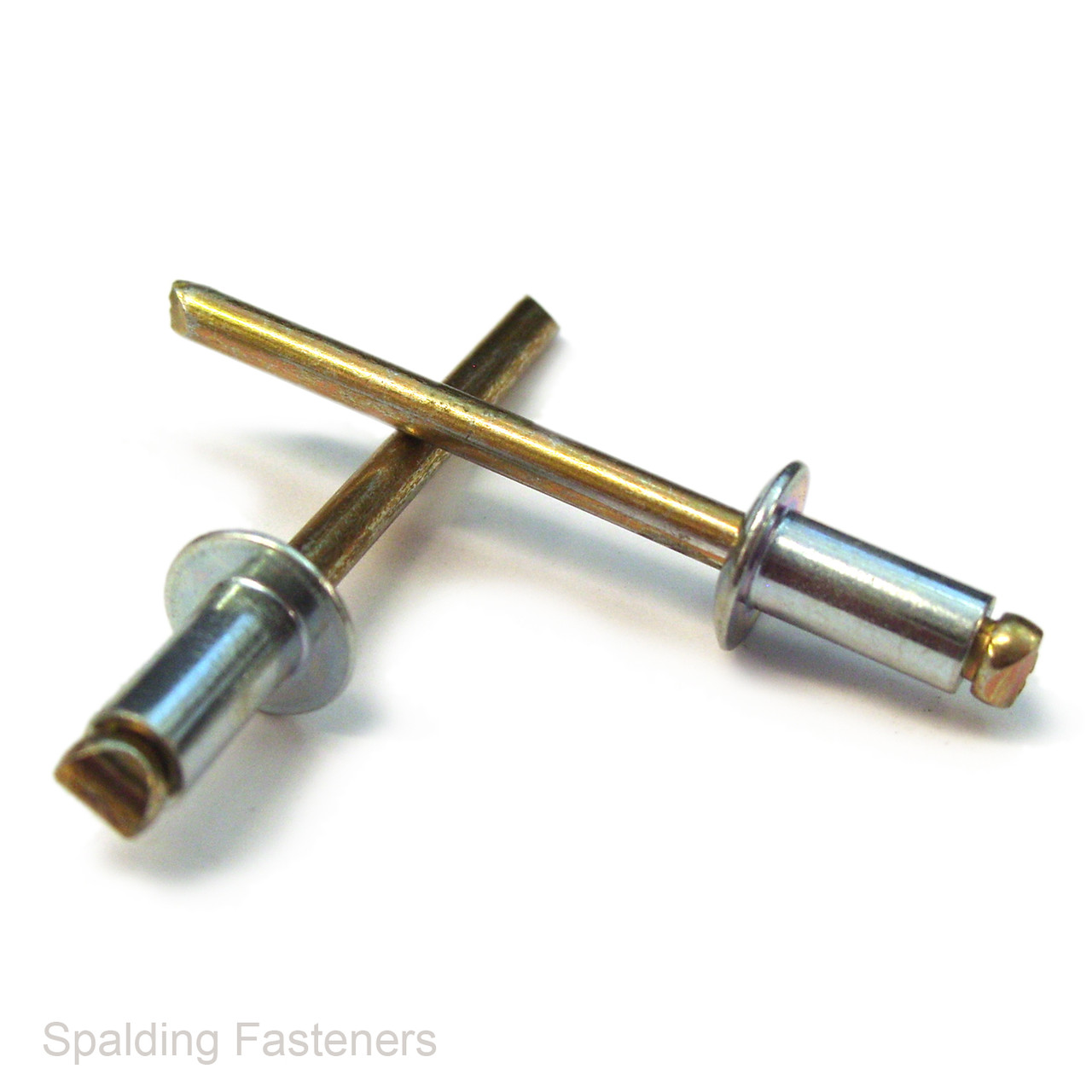

6.4mm Steel/Steel Dome Head Blind Pop Rivets – Zinc Plated
6.4mm standard dome head blind rivets with a steel body and steel mandrel, finished with zinc plating. Suitable for permanent fastening in sheet metal, fabrication and general engineering assemblies where access is available from one side of the joint.
Available in six listed body lengths from 12mm to 30mm. Choose the correct length using the grip range table, which identifies the combined material thickness each rivet is designed to join.
Specifications
| Nominal rivet diameter | 6.4mm |
|---|---|
| Rivet type | Standard open end blind rivet |
| Head style | Dome head |
| Body material | Steel |
| Mandrel material | Steel |
| Finish | Zinc plated |
| Nominal head diameter | 12.7mm |
| Recommended drill hole | 6.5mm |
| Listed body lengths | 12, 15, 18, 22, 26 and 30mm |
| Installation access | One side of the joint |
| Length measurement | Rivet body length measured beneath the head |
Sizes and Grip Ranges
| Diameter | Body Length | Minimum Grip | Maximum Grip |
|---|---|---|---|
| 6.4mm | 12mm | 3mm | 6mm |
| 6.4mm | 15mm | 6mm | 9mm |
| 6.4mm | 18mm | 9mm | 12mm |
| 6.4mm | 22mm | 12mm | 16mm |
| 6.4mm | 26mm | 16mm | 20mm |
| 6.4mm | 30mm | 20mm | 24mm |
Grip range is the total thickness of the materials being joined. Measure the complete material stack and select a rivet whose grip range includes that thickness. Body length and grip range are different measurements.
Key Features
- Steel body and steel mandrel construction.
- Zinc plated finish for corrosion protection.
- Dome head provides a raised bearing surface.
- Blind installation where rear tool access is unavailable.
- Six lengths covering listed grip ranges from 3mm to 24mm.
Typical Applications
Suitable for sheet metal assemblies, brackets, panels, enclosures, fabrication and equipment repairs where a standard steel blind rivet is specified.
Installation
Prepare aligned 6.5mm holes and remove burrs. Insert the rivet fully through the joint with the head seated against the surface. Set using a rivet tool rated for 6.4mm steel/steel rivets and fitted with the correct nosepiece.
Hold the tool square to the joint and complete the setting cycle until the mandrel breaks. Check that the rivet has formed correctly and clamps the materials securely.
Ordering
Select the required body length using the grip range table, then choose your pack quantity from the available product options.
Standards
No specific DIN, ISO or BS product standard has been verified for this listing.
