Product Description

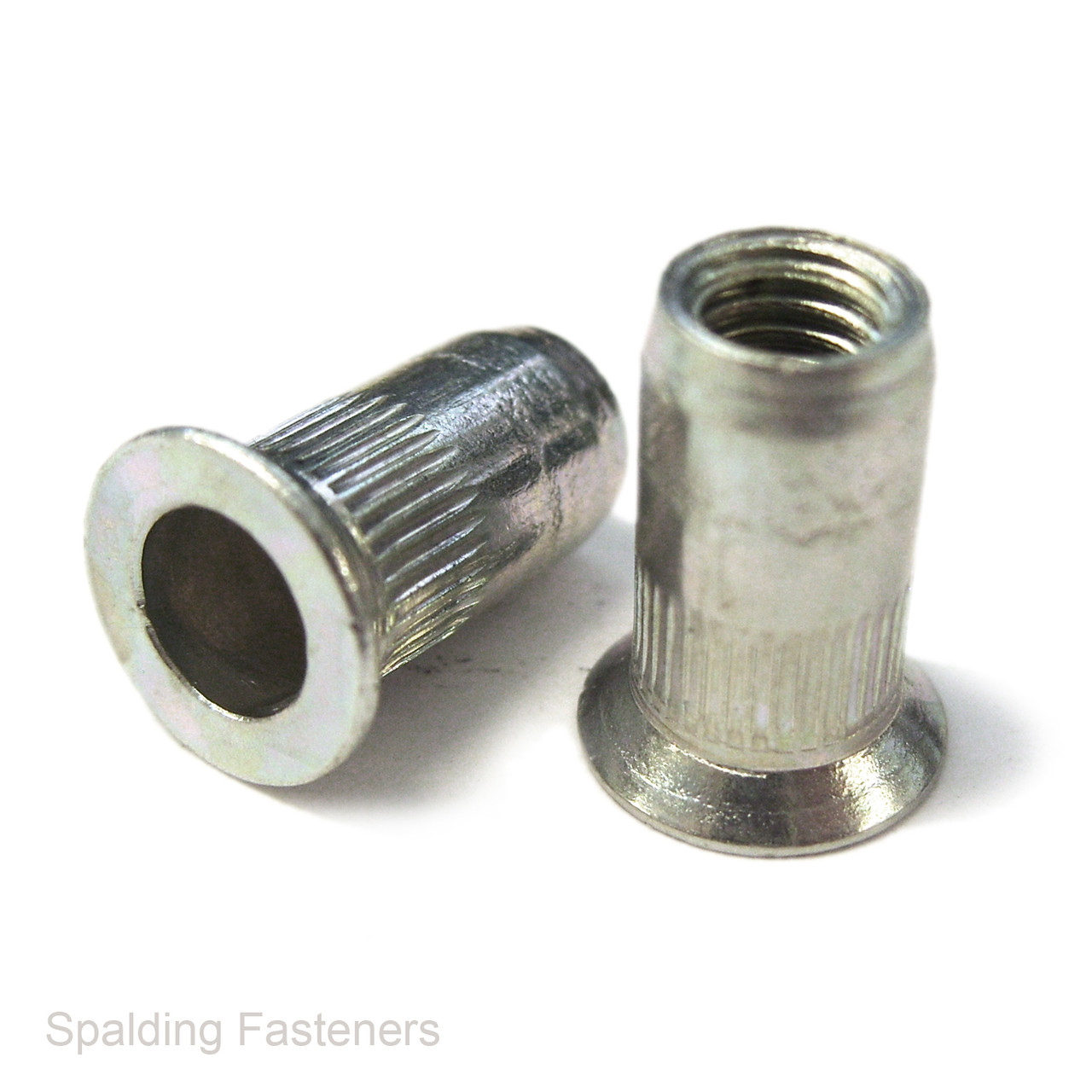

Metric zinc plated steel countersunk rivnut rivet nuts for creating strong internal threads in thin sheet materials where a flush finish is required. These countersunk flat head open end nut rivets are ideal for adding a reusable threaded fixing point in sheet metal, panels, box section and other thin materials.
Manufactured from zinc plated steel with a 90 degree countersunk flat head and open end body, these rivet nuts are suitable for automotive, fabrication, electrical and general engineering applications. Available in thread sizes from M4 to M10, with multiple pack quantities for workshop, trade and bulk use.
Please select the required thread size and pack quantity from the dropdown options. Specifications are intended as a guide only, so if dimensions are critical it is best to check before ordering.
Product Type: Rivnut / Rivet Nut / Nutsert
Material: Zinc Plated Steel
Head Type: Countersunk Flat Head
Head Angle: 90°
End Type: Open End
Thread Range: M4 to M10
Application: Automotive / Fabrication / Electrical / Engineering
| A | B | C | D | E | F |
| 4mm | 11mm | 8.5mm | 1.5mm | 0.7 | 1.5mm - 3mm |
| 5mm | 13mm | 10mm | 1.5mm | 0.8 | 1.5mm - 4mm |
| 6mm | 16mm | 12mm | 1.5mm | 1.0 | 1.5mm - 4mm |
| 8mm | 18.5mm | 13.5mm | 1.5mm | 1.25 | 2mm - 4.5mm |
| 10mm | 22mm | 16mm | 1.5mm | 1.5 | 1.5mm - 4.5mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
