Product Description

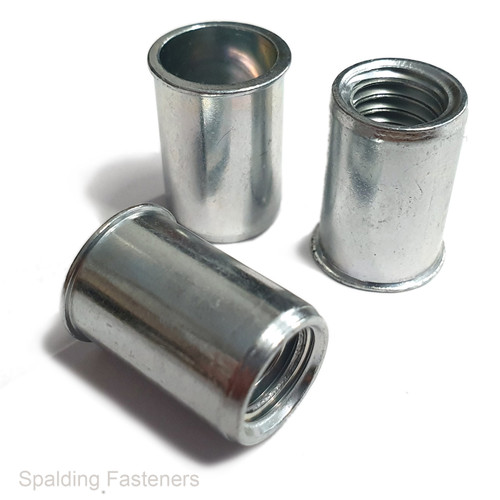

UNC Reduced Head Zinc Plated Steel Rivet Nuts
Imperial UNC rivet nuts manufactured from zinc plated steel with a reduced head profile. These threaded inserts provide a fixing point in suitable thin sheet materials where access is available from one side.
Specifications
| Product type | Blind rivet nut / threaded insert |
|---|---|
| Material | Steel |
| Finish | Zinc plated |
| Head style | Reduced head |
| Thread series | UNC – Unified National Coarse |
| Available threads | 1/4"-20, 5/16"-18 and 3/8"-16 UNC |
Thread Sizes, Grip Ranges and Fitting Holes
| Thread | TPI | Grip Range | Approx. Metric Grip Range | Fitting Hole Diameter |
|---|---|---|---|---|
| 1/4"-20 UNC | 20 | 0.030–0.165" | 0.76–4.19mm | 0.375" / 9.525mm |
| 5/16"-18 UNC | 18 | 0.019–0.200" | 0.48–5.08mm | 0.499" / 12.675mm |
| 3/8"-16 UNC | 16 | 0.040–0.200" | 1.02–5.08mm | 0.499" / 12.675mm |
Grip range refers to the material thickness the rivet nut can clamp. Thread size identifies the mating screw or bolt, rather than the installation hole diameter. Metric values are conversions of the listed imperial dimensions.
Typical Applications
- Vehicle panels and bodywork.
- Sheet metal fabrication and enclosures.
- Repairs requiring an imperial threaded attachment point.
Selection and Installation
Select a rivet nut whose grip range covers the material thickness. Prepare the correct fitting hole and install using a suitable rivet nut tool with the matching UNC mandrel. Check the setting on a sample before completing the assembly.
Pack Sizes
Available individually or in packs of 5, 10, 20, 50 or 100. Select the required thread size and quantity from the options above.
Standards
Thread reference: ASME B1.1 – Unified inch screw threads, UNC series. No specific rivet nut dimensional standard has been verified for this range.
