Product Description

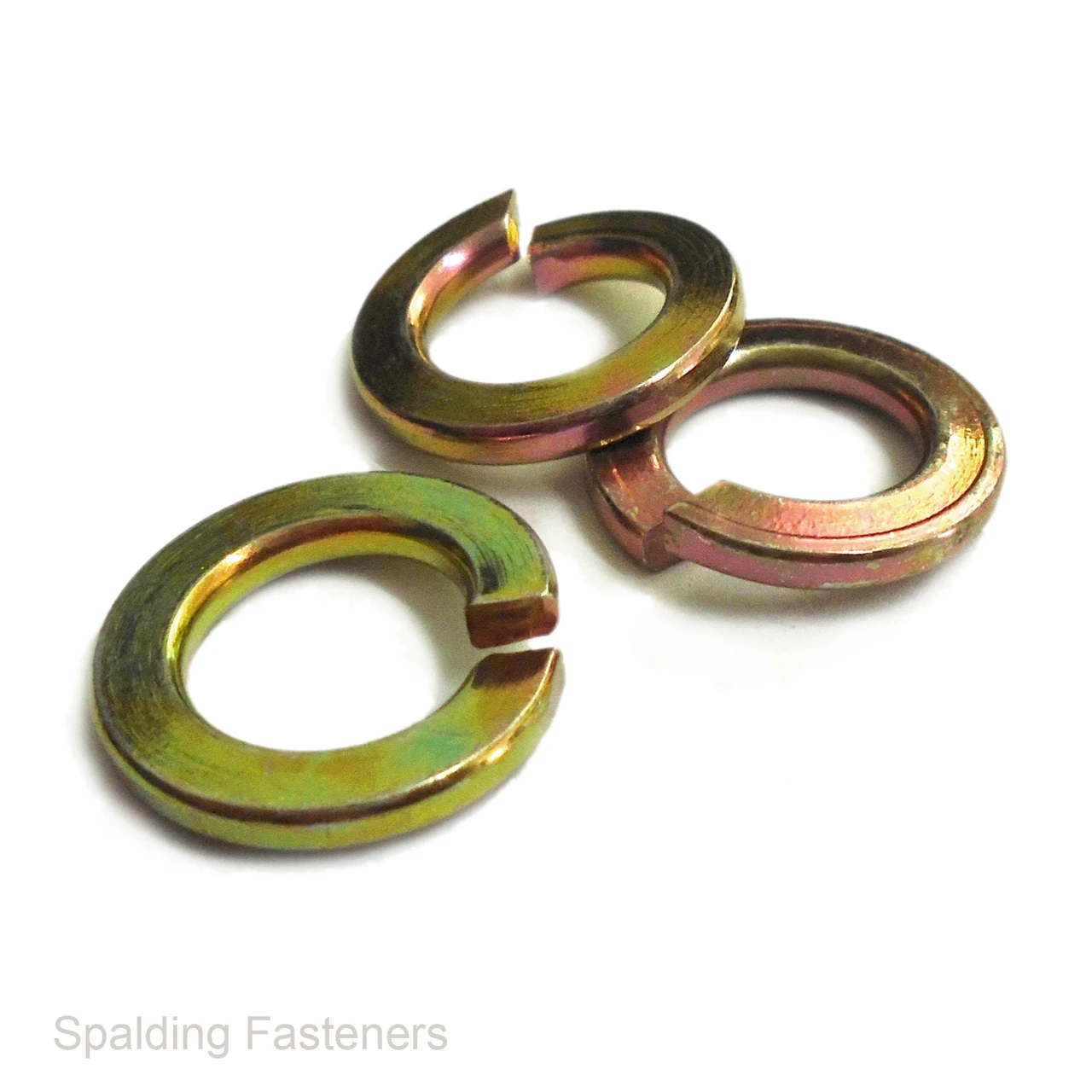

Imperial Yellow Zinc Plated Steel Spring Washers
Imperial regular spring washers manufactured from through-hardened steel with a yellow zinc plated finish. Available in seven nominal sizes from 5/16" to 1", these split spring washers are used beneath compatible nuts or bolt heads in mechanical assemblies, maintenance and repair work.
The split helical form deflects as the joint is tightened. The yellow zinc finish provides added corrosion resistance and matches other yellow zinc plated fasteners.
Specifications
| Product type | Imperial regular spring washer |
|---|---|
| Washer form | Split helical spring washer |
| Material | Through-hardened steel |
| Finish | Yellow zinc plated |
| Sizing system | Imperial nominal bolt diameter |
| Fastener compatibility | Matching diameter UNC, UNF, BSF and BSW bolts or screws, subject to clearance |
Available Sizes
- 5/16"
- 3/8"
- 7/16"
- 9/16"
- 5/8"
- 3/4"
- 1"
Sizes refer to the nominal bolt diameter, not the measured washer bore or outside diameter. Washers are unthreaded, so selection depends on fastener diameter rather than thread pitch.
Key Features
- Through-hardened steel construction.
- Regular split spring washer form.
- Yellow zinc plated finish.
- Imperial sizes for matching bolts and screws.
- Suitable for general assembly, maintenance and repair work.
Selection and Installation
Select the washer to suit the nominal bolt diameter and check clearance around the fastener. Fit beneath the nut or bolt head as specified for the assembly, then tighten the joint to its required torque.
Where resistance to vibration-induced loosening is essential, use the locking arrangement specified for the application.
Pack Sizes
Available in packs of 1, 5, 10, 20, 50, 100, 250 and 500. Select the required washer size and pack quantity from the options.
Standards and Dimensions
No specific DIN, BS or ASME dimensional standard has been verified for this range. Please confirm the bore, outside diameter and section thickness before ordering where dimensions are critical.
