Product Description
UNF Grade 5 Zinc Plated Serrated Flange Bolts – No.10-32 and 1/4"-28

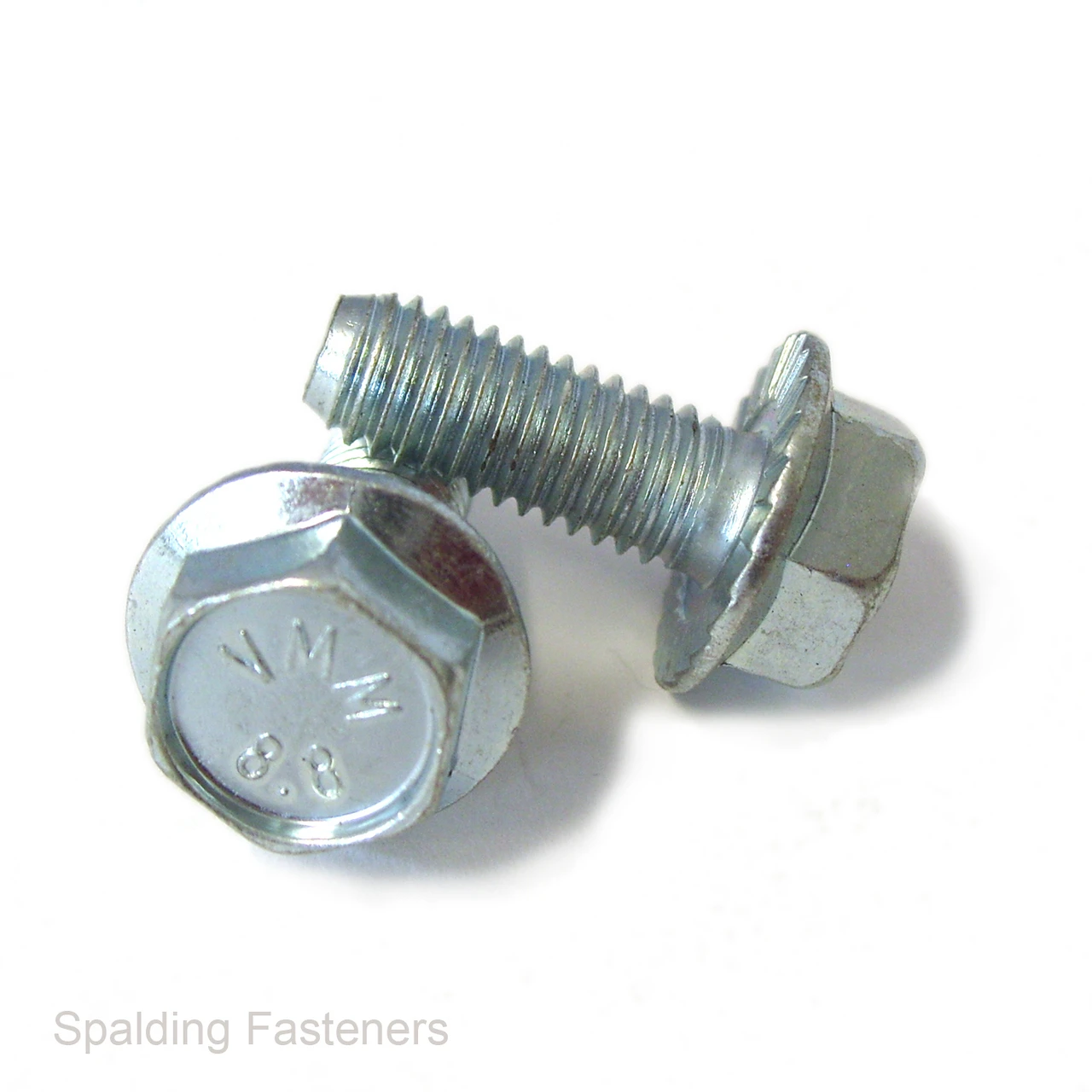

Grade 5 high tensile steel flange bolts with a zinc plated finish and UNF fine threads. Available in No.10-32 and 1/4"-28, these fully threaded bolts feature a hexagon head with an integral serrated flange.
The flange provides a wider bearing surface beneath the head, while the serrations engage the mating surface to help resist rotation. Suitable for machinery assembly, maintenance and repairs where a serrated flange fastener is specified.
Product Specifications
- Available thread sizes: No.10-32 UNF and 1/4"-28 UNF
- Thread type: Unified National Fine
- Material: High tensile steel
- Strength grade: Grade 5
- Finish: Zinc plated
- Head type: Hexagon with integral flange
- Flange face: Serrated
- Thread coverage: Fully threaded
- Lengths and pack sizes: Choose from the available product options
- Length measurement: Measured from underneath the flange to the end of the bolt
Thread Size Options
| Thread Size | Nominal Thread Diameter | Threads Per Inch |
|---|---|---|
| No.10-32 UNF | 0.190" / approximately 4.83mm | 32 TPI |
| 1/4"-28 UNF | 0.250" / 6.35mm | 28 TPI |
Installation
Select a bolt matching both the diameter and pitch of the nut or tapped hole. Start by hand to avoid cross-threading and tighten using a correctly fitting spanner or socket to the torque specified for the assembly.
The flange serrations can mark the mating surface. Check that the bearing surface is suitable for a serrated flange fastener.
Standards
No specific dimensional standard has been verified for this flange bolt listing.
