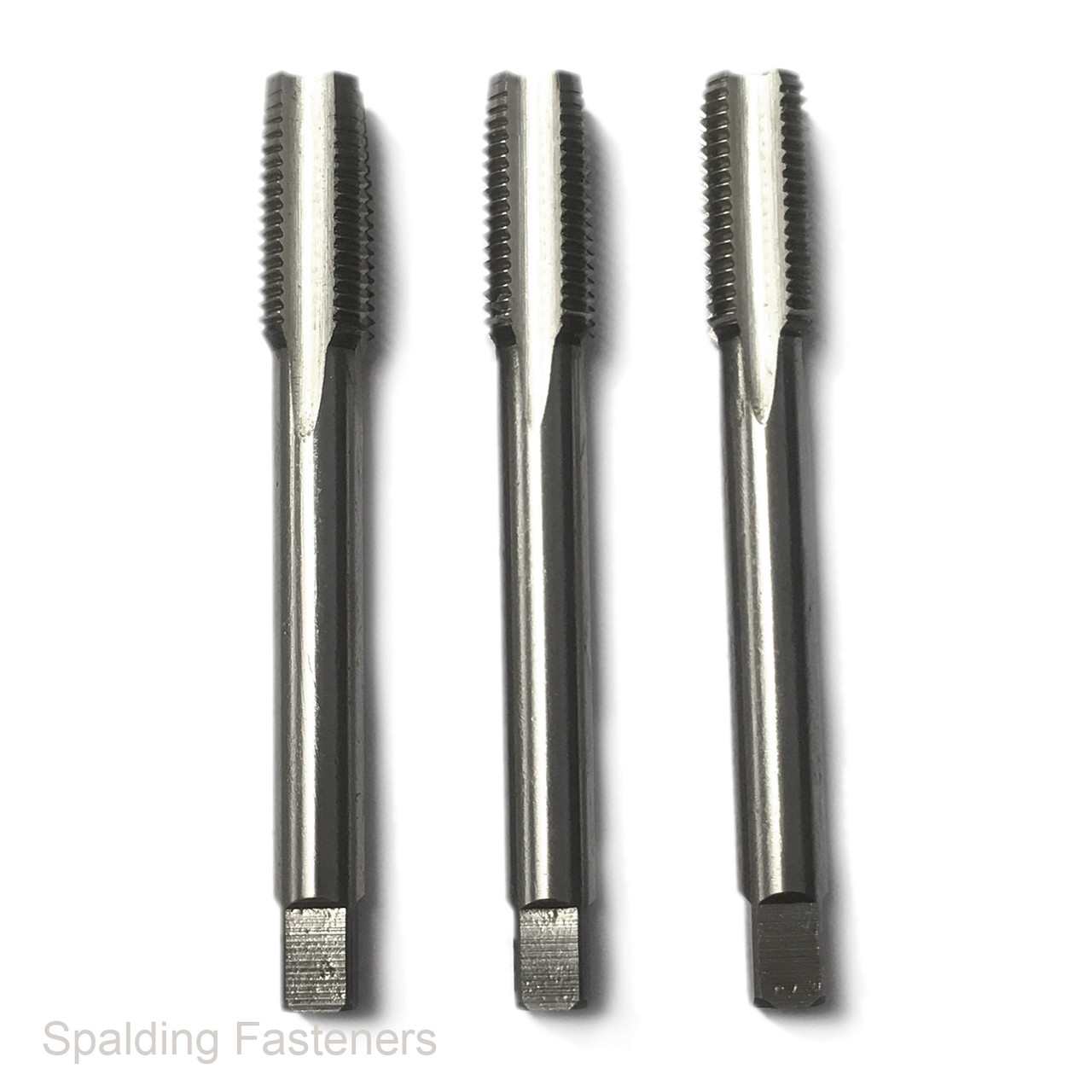

NPT High Speed Steel Straight Flute Pipe Taps

Product Description

National Pipe Thread high speed steel straight flute taps for cutting new internal tapered NPT pipe threads.

These high-quality UK made HSS taps are suitable for producing internal NPT threads in pipe fittings, adapters, manifolds, hydraulic components and general engineering parts. NPT uses a tapered 60-degree thread form and is commonly found on American-manufactured pneumatic, hydraulic and fluid-handling equipment.

• Thread form: NPT / National Pipe Taper
• Standard: ASME B1.20.1
• Material: High speed steel / HSS
• Flute type: Straight flute
• Thread type: Tapered pipe thread
• Use: Creating new internal threads
• Thread sizes available: 1/8"-27 NPT through to 2"-11.5 NPT
• Pass options: 1st taper, 2nd intermediate, 3rd bottoming or set of all three
• Made in the UK

Complete sets include the 1st taper, 2nd intermediate and 3rd bottoming taps. Sets are supplied in a plastic case, while individual taps are supplied in plastic bags.

Please note: NPT sizes refer to the nominal pipe size and do not equal the actual measured thread diameter. A suitable thread sealant is normally required when assembling NPT pipe connections.

Please note: Specifications are intended as a guide only. If dimensions are critical to your project, please check with us before ordering.
