Product Description

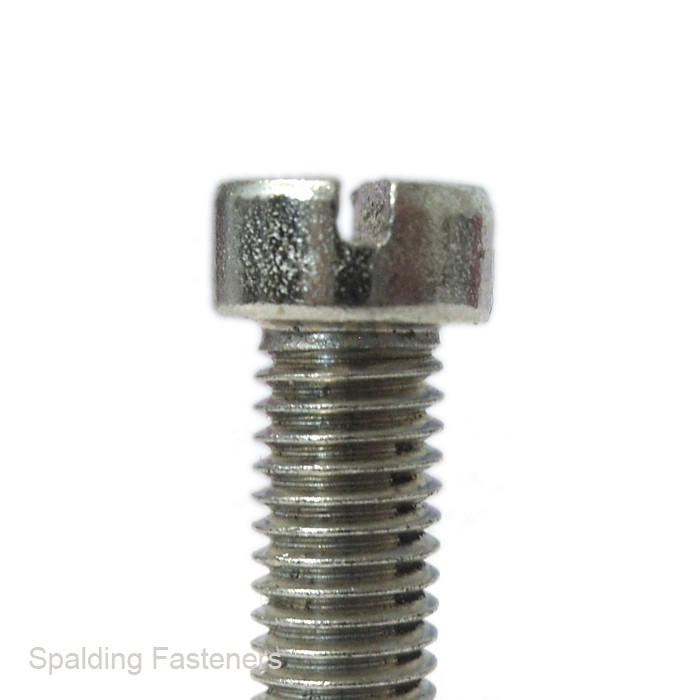

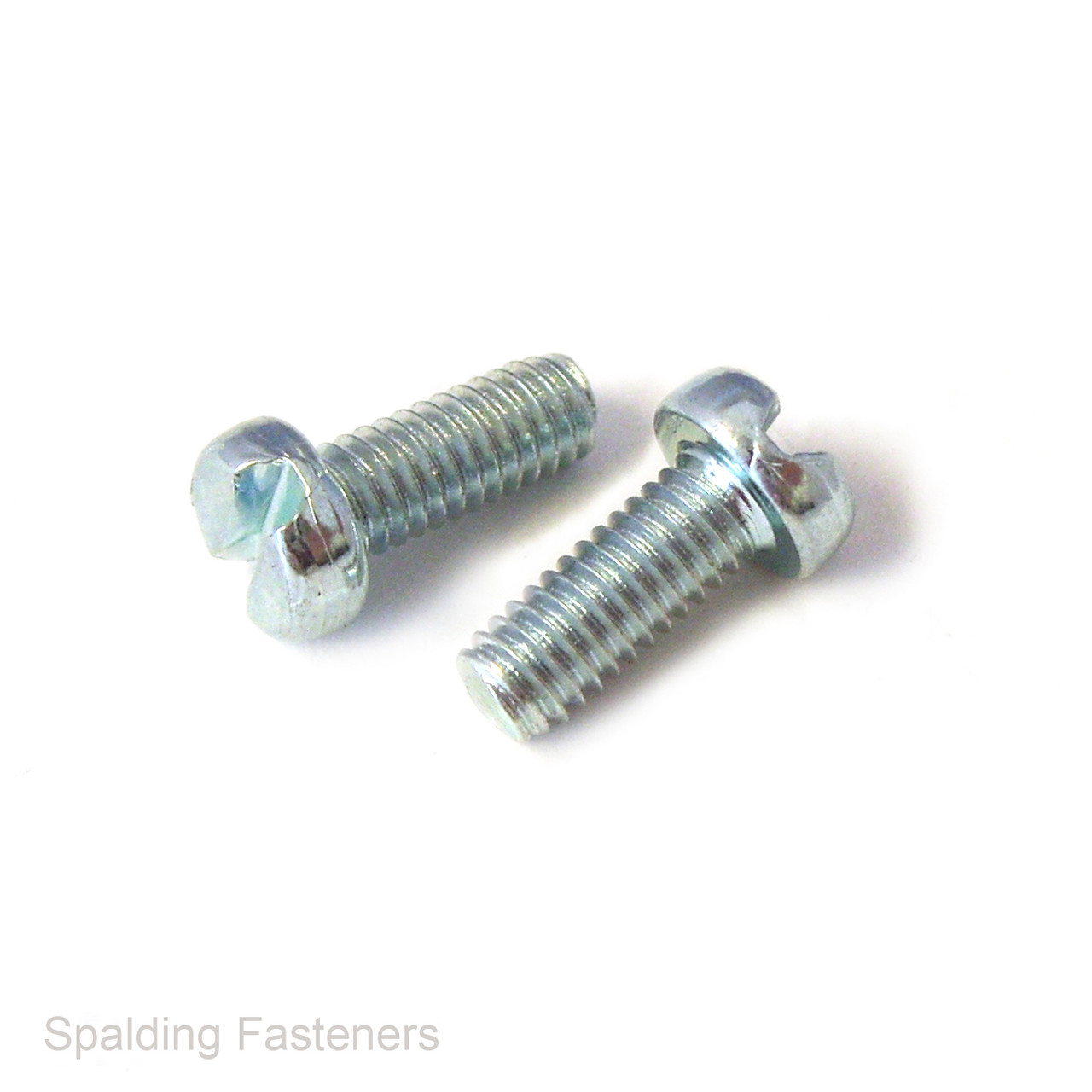

M4 metric 4.8 grade zinc plated steel cheese slotted head machine screws manufactured to DIN 84, with a standard 0.7mm metric coarse thread.
These machine screws feature a traditional slotted drive and cheese head, making them suitable for general engineering, machinery, electrical work, restoration, panel fixing and maintenance applications where a metric machine screw with a straight-sided head is required.
- Thread size: M4
- Thread pitch: 0.7mm metric coarse
- Material: 4.8 grade steel
- Finish: Bright zinc plated
- Standard: DIN 84
- Head style: Cheese head
- Drive type: Slotted
- Approximate head diameter: 7mm
- Approximate head height: 2.6mm
- Lengths available: 6mm, 10mm, 16mm and 25mm
- Pack sizes available: 10, 20, 50, 100, 250, 500 and 1000
Cheese slotted machine screws are commonly used with matching nuts, threaded holes, inserts or tapped components. The straight-sided cheese head provides a traditional appearance and a useful bearing surface under the head.
Bright zinc plated steel provides general corrosion resistance for indoor and sheltered applications. For outdoor, marine, coastal or more corrosive environments, stainless steel may be more suitable.
Length is measured from underneath the head to the end of the screw.
Please note: Specifications are intended as a guide only. If dimensions are critical to your project, please check with us before ordering.
| A | B | C | D | E |
| 4mm | 10mm | 7mm | 2.6mm | 0.7 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
