Product Description

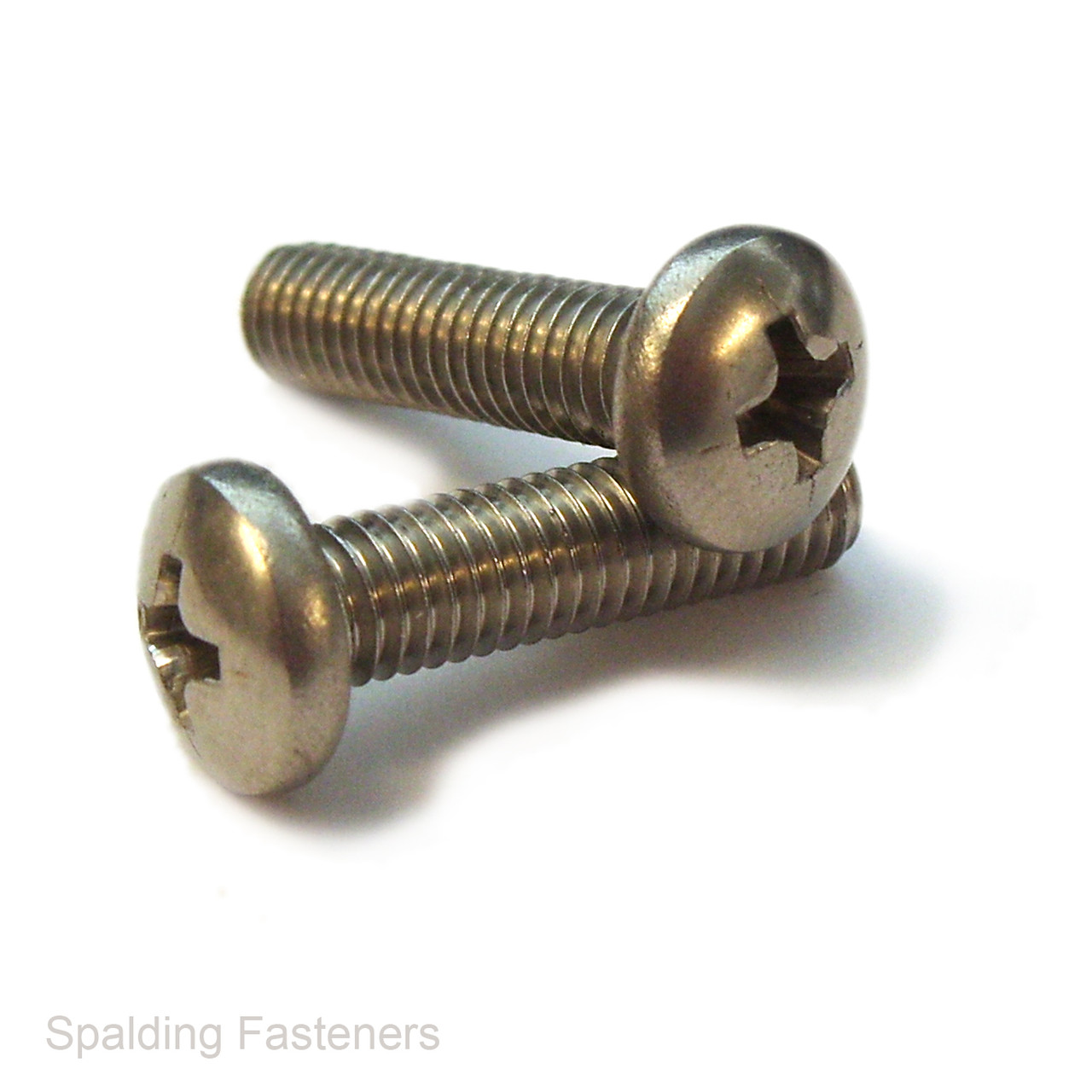

10-32 UNF A2 Stainless Steel Pan Phillips Machine Screws
Fully threaded 10-32 UNF pan-head Phillips machine screws manufactured from corrosion-resistant A2 stainless steel. The fine 32 TPI thread is intended for use with a compatible 10-32 UNF nut or tapped hole.
The rounded pan head provides a broad bearing surface, while the Phillips recess allows convenient installation with a cross-head driver. These imperial machine screws are suitable for engineering, machinery, automotive, restoration and general assembly applications.
Product specifications
- Thread size: No. 10-32 UNF
- Nominal diameter: 0.190"
- Thread pitch: 32 threads per inch
- Material: A2 stainless steel
- Head style: Pan head
- Drive: Phillips cross recess
- Thread coverage: Fully threaded
- Length measurement: From beneath the head
- Reference standard: ASME B18.6.3
Explore our UNF pan Phillips machine screws, including 8-36 UNF pan Phillips screws and 1/4" UNF pan Phillips screws. A 10-32 UNF pan-slotted version is also available.
For further help, see our UNF thread data guide and A2 versus A4 stainless steel guide.
Dimensions are provided as a guide. If any measurement or standard compliance is critical to your application, please contact us before ordering.
| A | B | C | D | E |
| 10-32 | 1" | 0.36" | 0.13" | 32 |
| 10-32 | 1/2" | 0.36" | 0.13" | 32 |
| 10-32 | 2" | 0.36" | 0.13" | 32 |
| 10-32 | 3/4" | 0.36" | 0.13" | 32 |
| 10-32 | 5/8" | 0.36" | 0.13" | 32 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
