Product Description

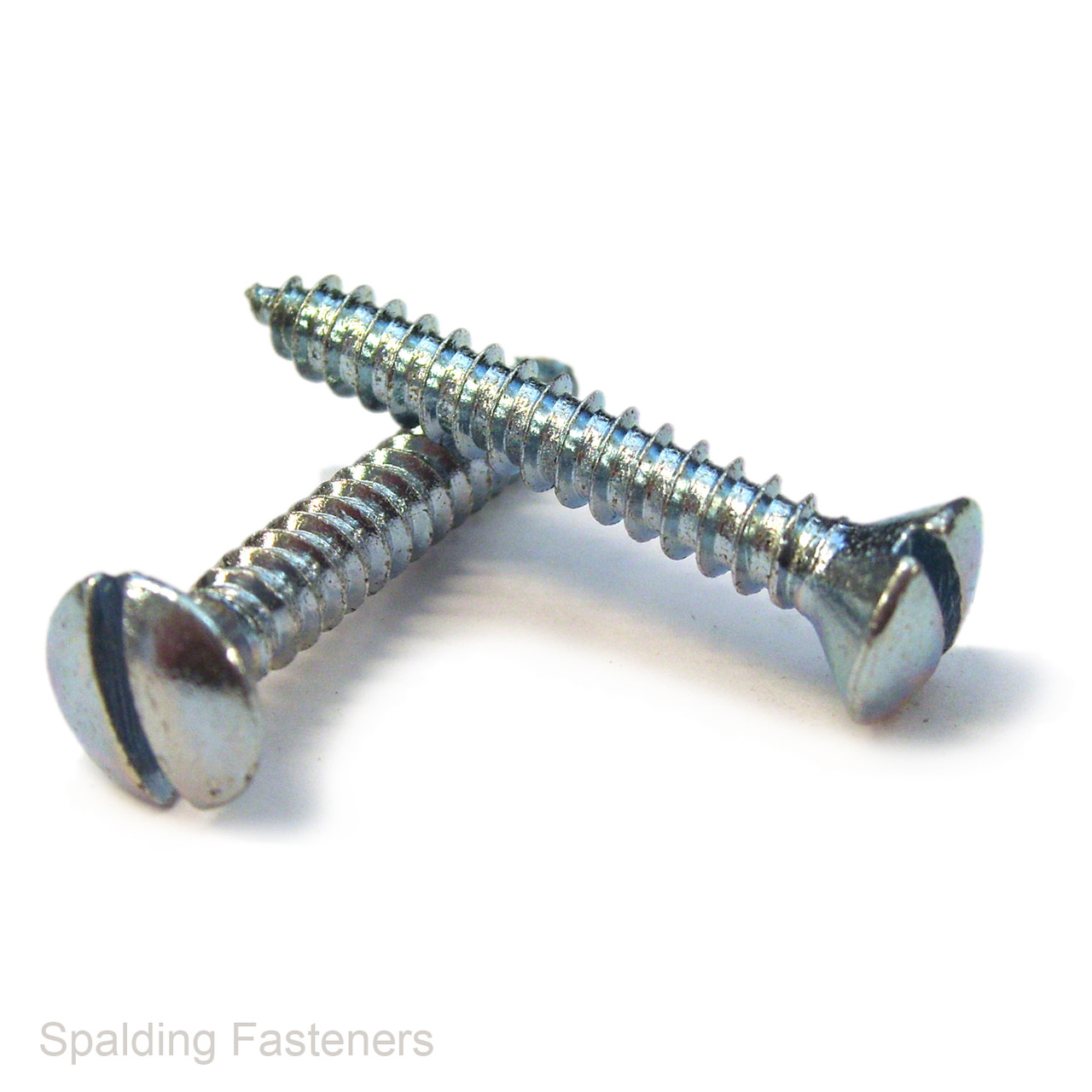

No.10 Zinc-Plated Raised Countersunk Slotted Self-Tapping Screws
No.10 raised countersunk slotted self-tapping screws manufactured from zinc-plated steel. The self-tapping thread is designed to form a mating thread when installed into a suitable pilot hole in sheet metal, plastics and other appropriate materials.

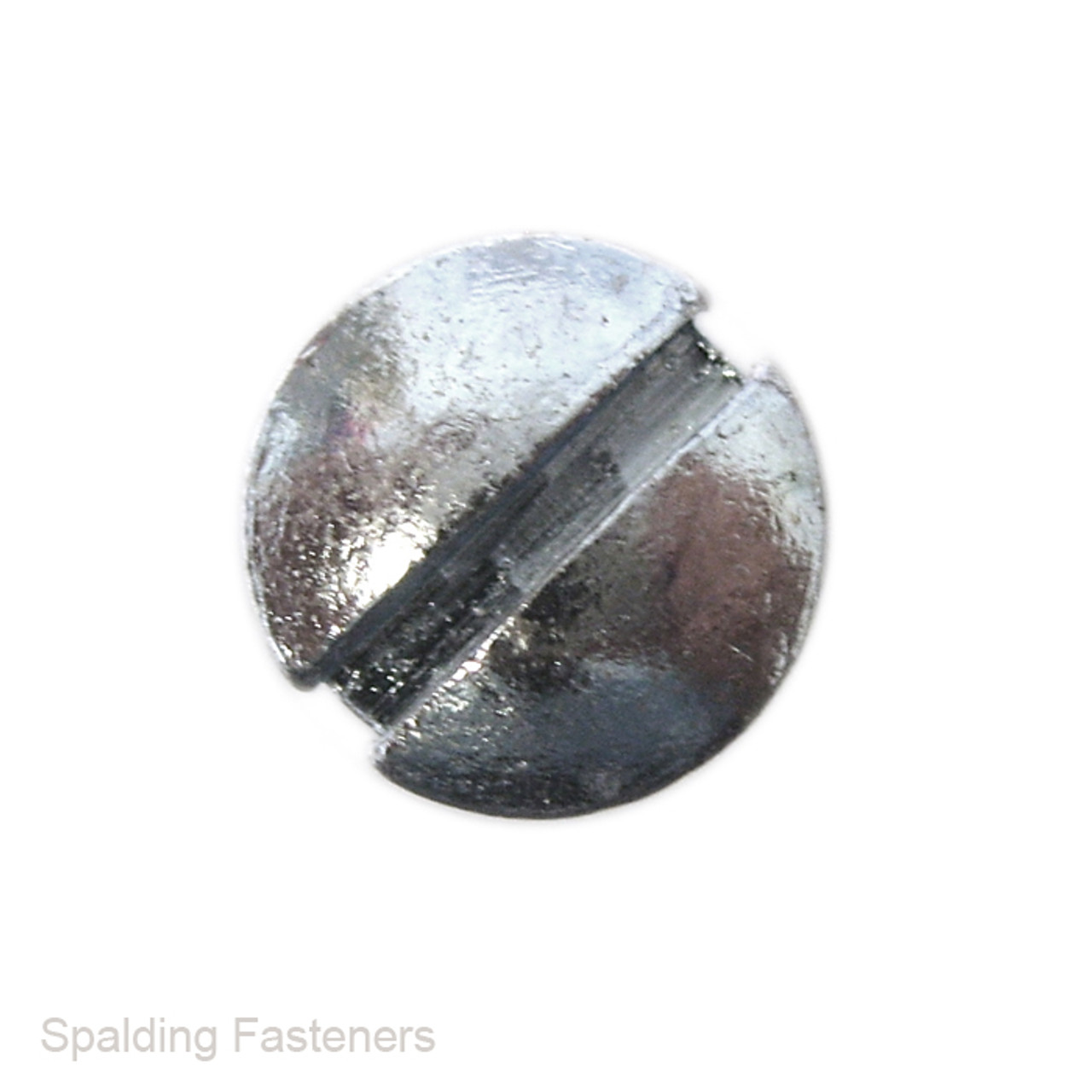

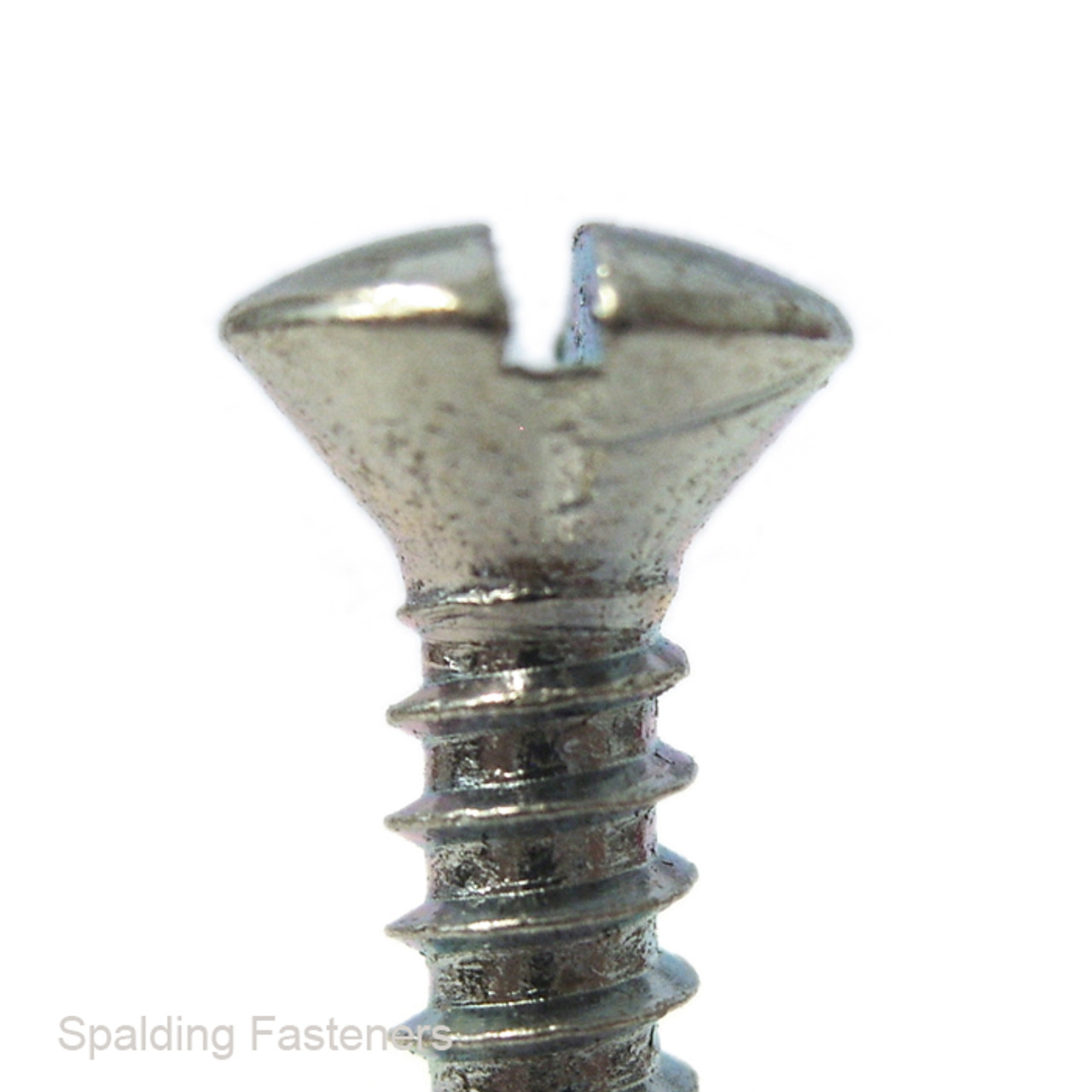

Also known as an oval countersunk head, the tapered underside locates in a correctly formed countersunk hole while the gently raised top provides a traditional decorative finish. The single-slot drive allows installation with a correctly sized flat-blade screwdriver or driver bit.
Product specifications
- Screw size: No.10 / 4.8mm
- Length: 1 1/4" / approximately 32mm
- Material: Steel
- Finish: Zinc plated
- Head style: Raised countersunk / oval countersunk
- Drive type: Slotted
- Head diameter: Approximately 3/8" / 9.5mm
- Thread pitch: Approximately 1.6mm
- Former standard: DIN 7973
- Current standard: ISO 1483
- British Standard: BS EN ISO 1483:2011
- Length measurement: Overall, including the raised countersunk head
Browse our complete raised countersunk slotted self-tapping screw range for alternative diameters, materials and lengths.
For a different drive style, see our No.14 zinc-plated countersunk Pozi self tappers or browse the complete self-tapping screw range.
A correctly sized pilot hole should be selected for the material type and thickness. Dimensions are provided as a guide; please contact us if a particular measurement or standards compliance is critical.
| A | B | C | D | E | F |
| No.10 | 4.8mm | 1" | 25mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1 1/4" | 32mm | 3/8" | 9.5mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
