M5 A4-80 Stainless Hex Set Screws DIN 933

Product Description

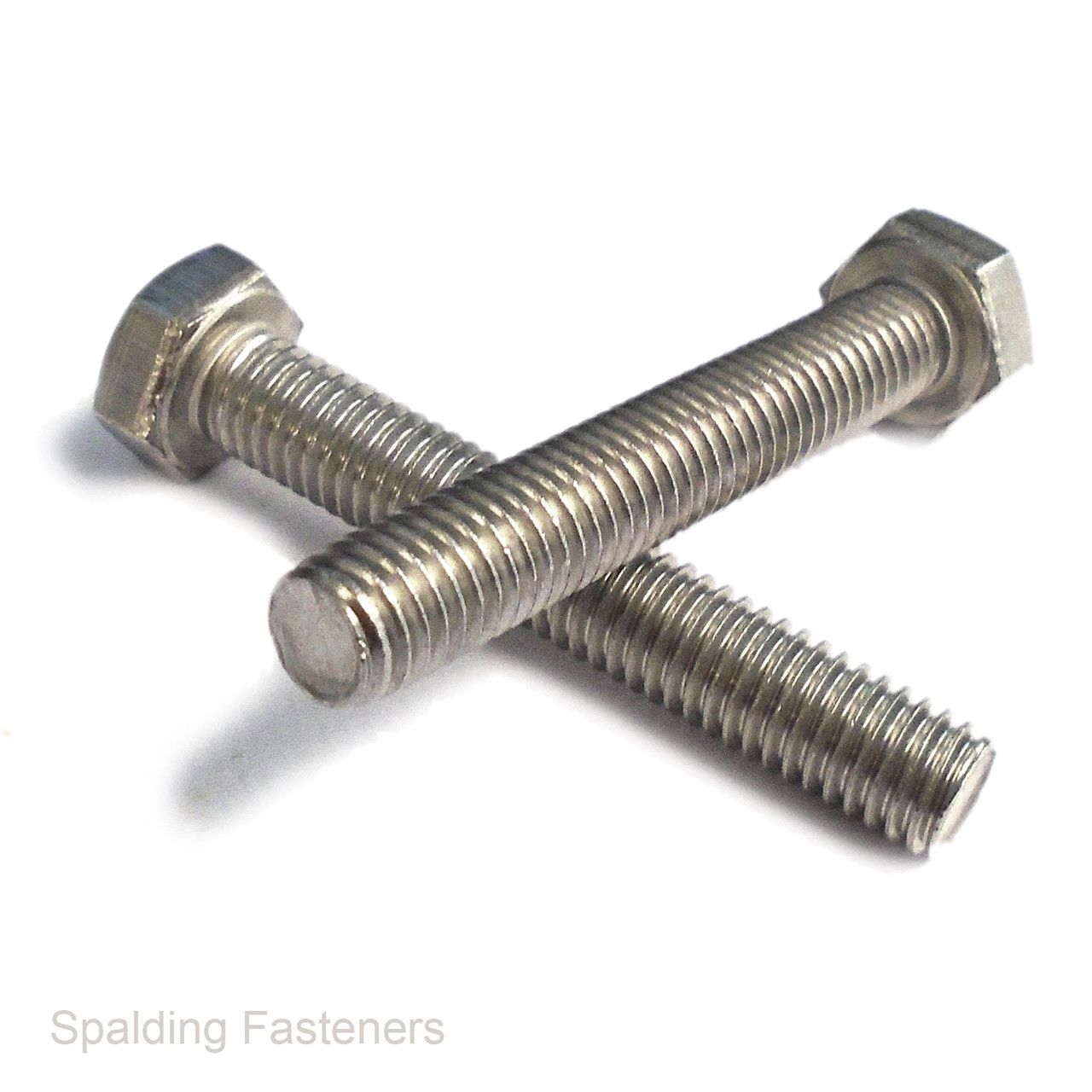

M5 A4-80 Stainless Steel Fully Threaded Hexagon Set Screws – DIN 933

These M5 fully threaded hexagon set screws are manufactured from high-strength A4-80 stainless steel. Often described as marine-grade stainless, A4 provides improved resistance to corrosion and chloride-containing environments compared with A2 stainless steel.

Property class A4-80 provides a minimum tensile strength of 800 N/mm² (800 MPa). The fully threaded design makes these fasteners suitable for clamping components where maximum thread engagement or adjustable grip is required.

Product Specifications

• Thread diameter: M5
• Thread pitch: 0.8mm metric coarse
• Available lengths: 8mm to 80mm
• Material: A4 stainless steel
• Property class: A4-80
• Minimum tensile strength: 800 N/mm²
• Head type: Hexagon
• Thread form: Fully threaded
• Spanner size: 8mm across flats
• Nominal head height: 3.5mm
• Finish: Natural stainless steel
• Dimensional standard: DIN 933 / ISO 4017

Available Lengths

M5 × 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 70 and 80mm.

Typical Applications

• Marine and coastal equipment
• Outdoor machinery and structures
• Food-processing and clean-production equipment
• Chemical-processing installations
• Automotive and engineering assemblies
• Applications requiring corrosion resistance and high tensile strength

For best corrosion performance, use these fasteners with compatible M5 × 0.8 A4 stainless steel nuts and washers. Stainless fasteners can be susceptible to thread galling, so a suitable anti-seize compound may be beneficial during assembly. Tightening torque should be determined from the joint design and operating conditions.

View more A4-80 stainless steel fasteners, metric hexagon bolts, nuts and washers.

Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
