Product Description

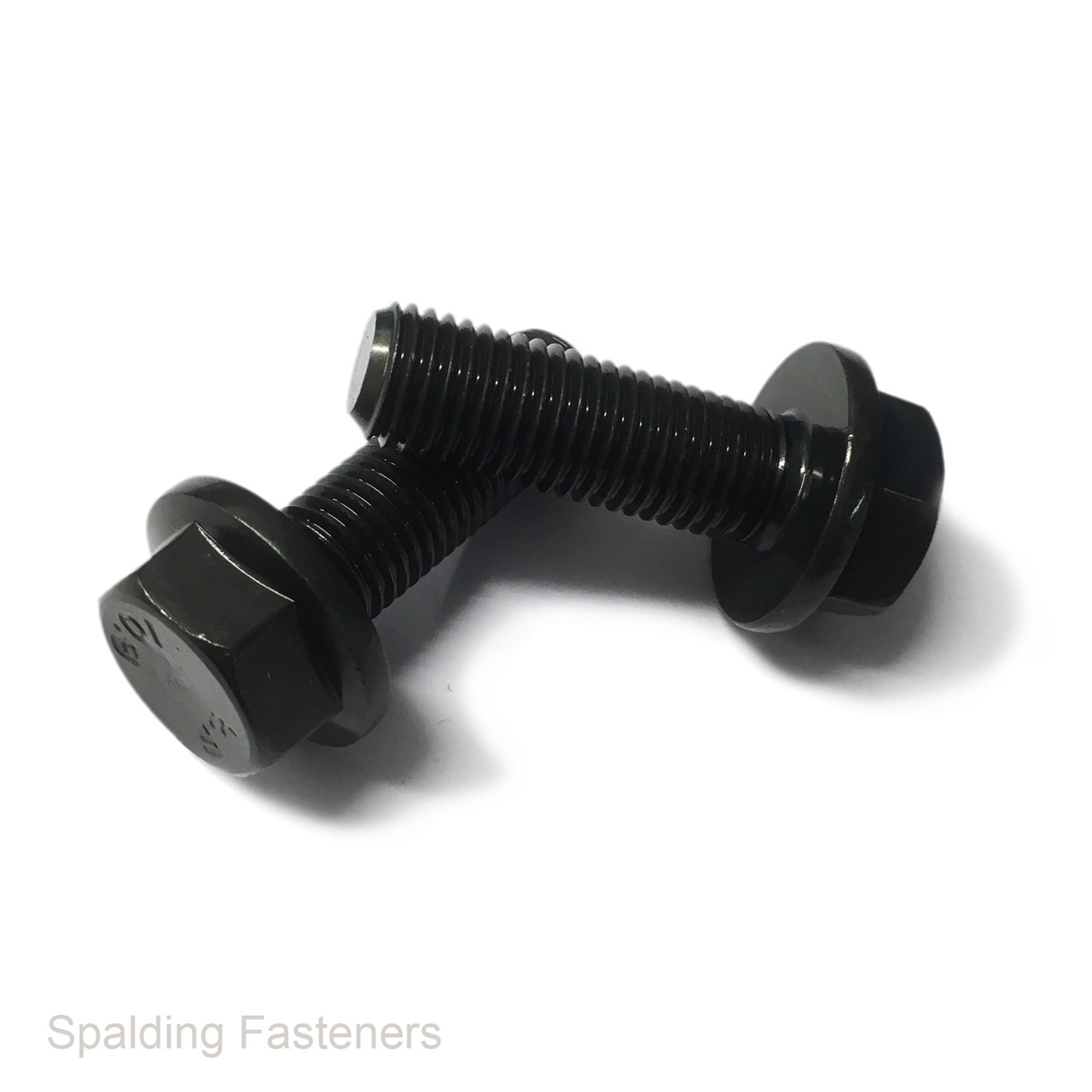

M10 10.9 Self Colour Hex Flange Set Screws
M10 high tensile steel hex flange set screws with fully threaded shanks and a metric coarse thread. The integral flange provides a broad bearing surface to spread the clamping load over the joint.
Specifications
| Feature | Specification |
|---|---|
| Thread size | M10 |
| Thread pitch | 1.5mm metric coarse |
| Material | High tensile steel |
| Property class | 10.9 |
| Finish | Self colour, unplated steel |
| Head type | Hexagon with integral flange |
| Thread coverage | Fully threaded |
| Listed flange diameter | 21mm |
| Listed head height | 9mm |
| Spanner size | 15mm |
Available Lengths
- M10 x 20mm
- M10 x 25mm
- M10 x 30mm
Length is measured from beneath the flange to the end of the screw.
Installation
Use a matching M10 x 1.5mm nut or tapped hole and follow the tightening specification for the assembly. Self colour steel has no plated corrosion protection and may require protection in damp or exposed conditions.
No verified DIN, BS or ISO dimensional standard is assigned to this listing.
