Product Description

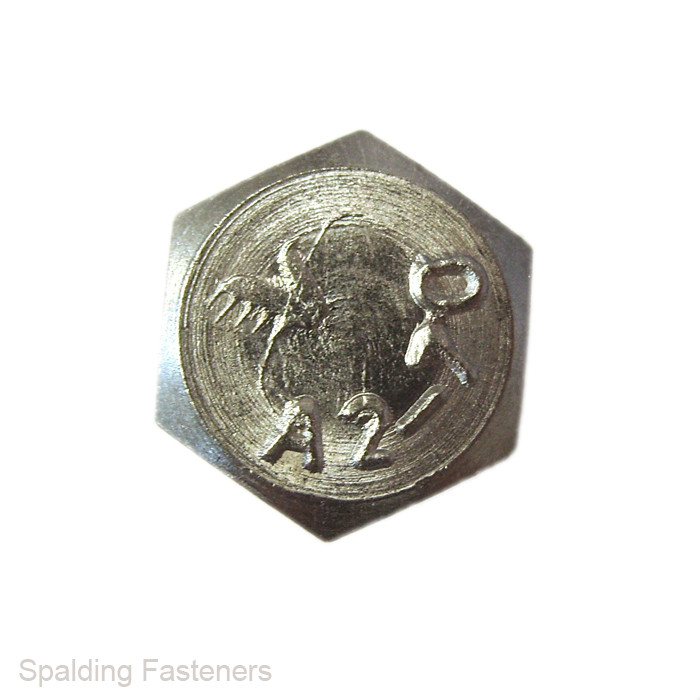

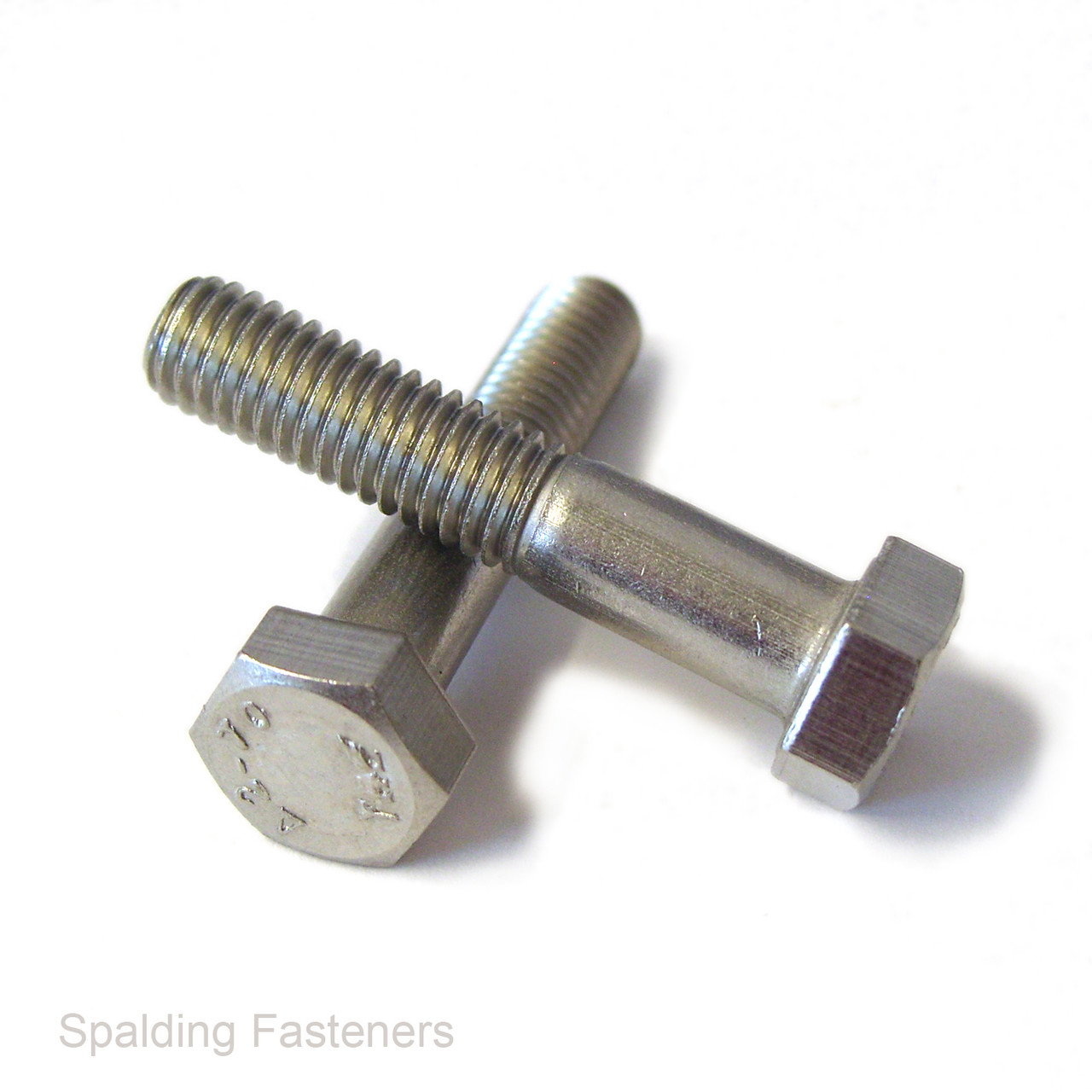

M7 A2 Stainless Steel Hex Head Bolts With Shank – DIN 931
M7 partially threaded hexagon head bolts manufactured from A2 stainless steel to DIN 931. These bolts feature an M7 x 1mm metric coarse thread and a plain, unthreaded shank beneath the head.
Suitable for machinery, equipment assembly and general engineering applications requiring a bolt with an unthreaded section. A2 stainless steel provides corrosion resistance, while the hexagon head allows tightening with an 11mm spanner or socket. Select your required length and pack quantity from the available options.
Technical Specifications
| Thread Size | M7 |
|---|---|
| Thread Pitch | 1mm – metric coarse |
| Material | A2 stainless steel |
| Standard | DIN 931 |
| Head Style | Hexagon |
| Thread Coverage | Partially threaded, with plain shank |
| Spanner Size | 11mm across flats |
| Head Height | 5mm nominal |
Length & Shank Dimensions
All dimensions are in millimetres. Bolt length is measured from underneath the head to the end of the bolt, excluding the head.
| Bolt Length | Threaded Length | Plain Shank Length |
|---|---|---|
| 35 | 20 | 15 |
| 40 | 20 | 20 |
| 45 | 20 | 25 |
| 50 | 20 | 30 |
| 60 | 20 | 40 |
| 70 | 20 | 50 |
Selecting Your Bolt
Use with matching M7 x 1mm nuts or tapped holes. Check both the threaded length and plain shank length to ensure the bolt suits the thickness of your assembly.
Please note: Dimensions are nominal and provided as a guide. Please contact us if measurements are critical to your application.
Browse Related Categories
| A | B | C | D | E | F | G |
| 7mm | 35mm | 20mm | 11mm | 5mm | 1mm | 15mm |
| 7mm | 40mm | 20mm | 11mm | 5mm | 1mm | 20mm |
| 7mm | 45mm | 20mm | 11mm | 5mm | 1mm | 25mm |
| 7mm | 50mm | 20mm | 11mm | 5mm | 1mm | 30mm |
| 7mm | 60mm | 20mm | 11mm | 5mm | 1mm | 40mm |
| 7mm | 70mm | 20mm | 11mm | 5mm | 1mm | 50mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
