Product Description
3/8" UNF A2 Stainless Steel Socket Cap Set Screws

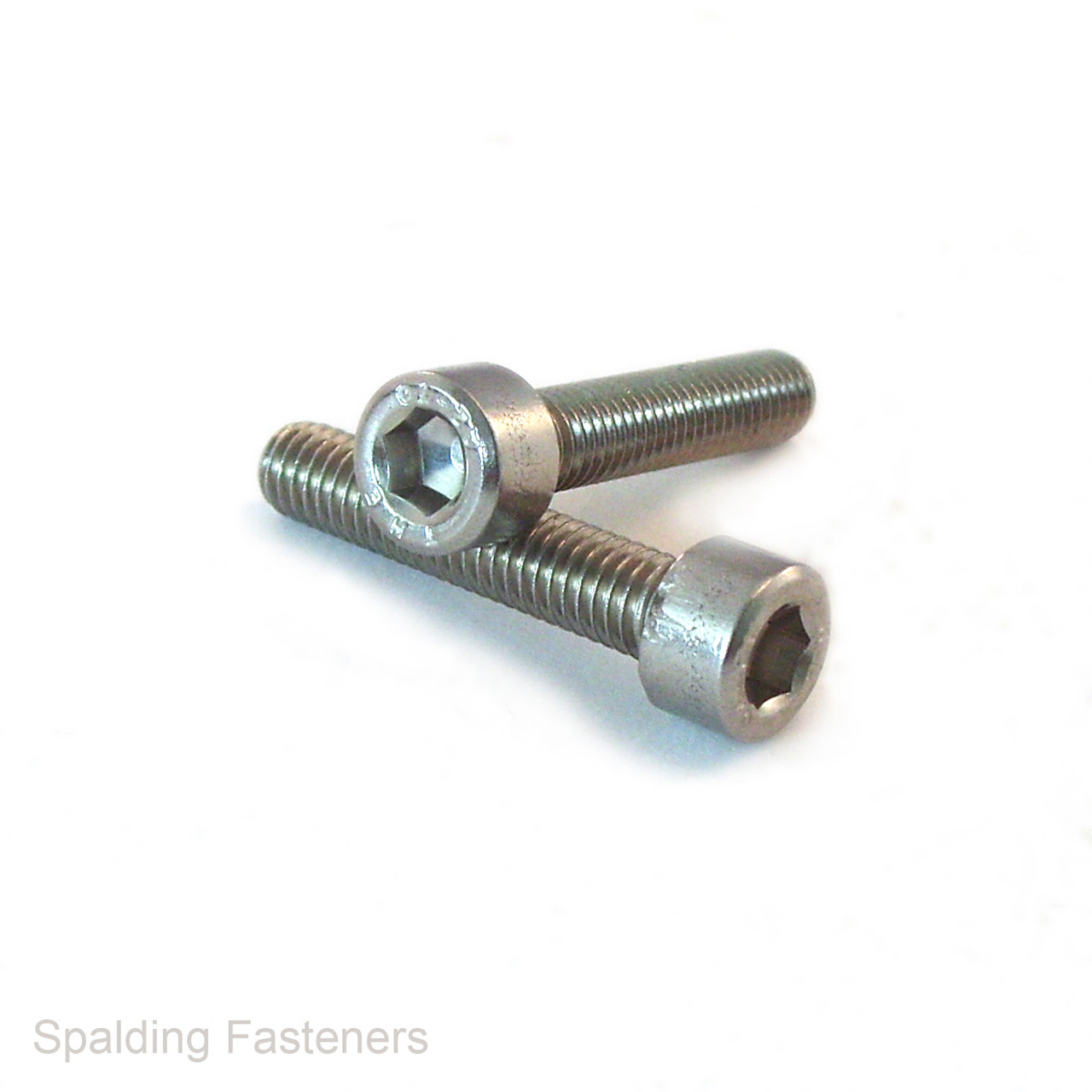

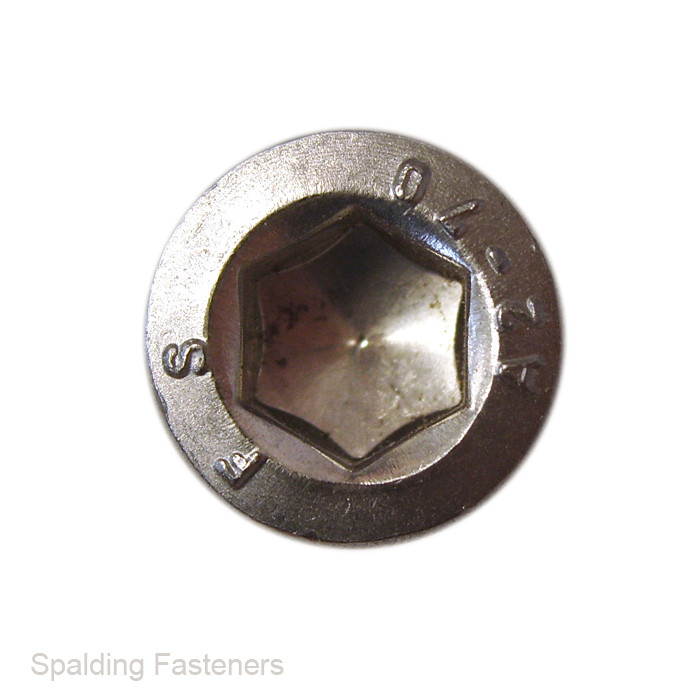

These 3/8" UNF socket cap set screws are manufactured from A2 stainless steel and feature a fully threaded shank. The cylindrical cap head has an internal hexagon socket for tightening with a 5/16" Allen key.
The fine UNF thread has 24 threads per inch. A2 stainless steel provides corrosion resistance for many general engineering, maintenance and assembly applications.
Technical Specifications
| Thread Size | 3/8" UNF |
|---|---|
| Threads Per Inch | 24 TPI |
| Thread Type | Unified National Fine |
| Material | A2 stainless steel |
| Thread Coverage | Fully threaded |
| Head Style | Cylindrical socket cap |
| Drive Type | Internal hexagon socket |
| Allen Key Size | 5/16" |
| Maximum Head Diameter | 0.562" |
| Maximum Head Height | 0.375" |
| Dimensional Reference | ASME B18.3 |
Available Lengths
| Thread Size | Length |
|---|---|
| 3/8" UNF – 24 TPI | 3/4" |
| 3/8" UNF – 24 TPI | 1" |
| 3/8" UNF – 24 TPI | 1 1/2" |
Screw length is measured from beneath the head to the end of the screw, excluding the head.
Selecting Your Screws
Select the required length and pack quantity from the available options. Use with a matching 3/8" UNF 24 TPI nut or tapped hole.
Use a correctly fitting 5/16" Allen key and keep it fully engaged during tightening. Check that the selected length provides sufficient thread engagement and clearance for the socket cap head.
