Product Description

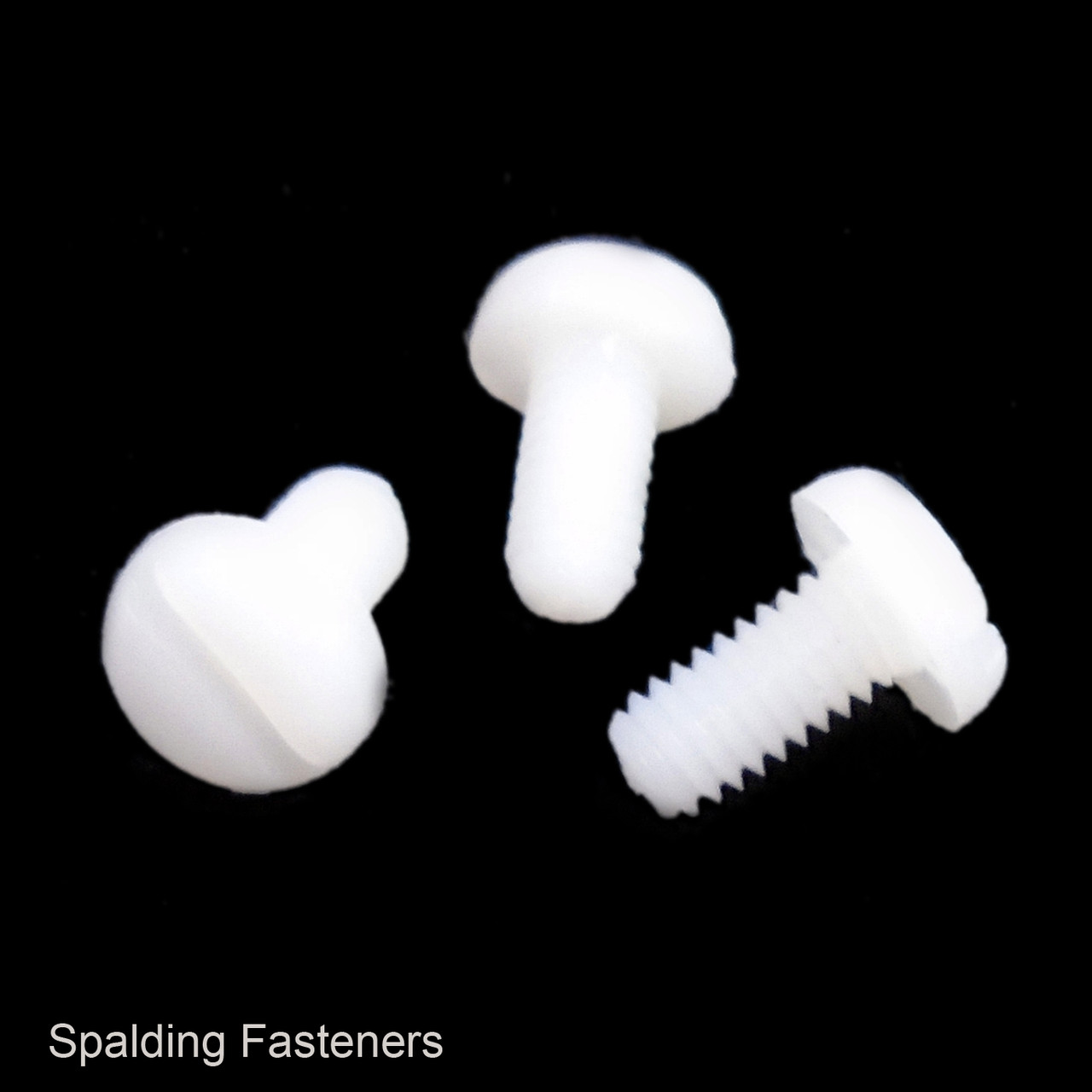

Metric Nylon Plastic Pan Head Slotted Drive Machine Screws
White nylon slotted pan head machine screws manufactured from polyamide 6.6. These lightweight plastic fasteners feature a raised pan head and a straight screwdriver slot for straightforward installation.
Suitable for light-duty assembly, covers, panels and components requiring a non-metallic fixing. Available in M3 and M4 metric thread sizes, with the size combinations listed below.
Technical Specifications
| Material | Nylon – polyamide 6.6 |
|---|---|
| Colour | White |
| Standard Reference | DIN 85 type |
| Head Style | Pan head |
| Drive Type | Slotted |
| Thread Type | Metric coarse machine thread |
| Thread Sizes | M3 and M4 |
| M3 Thread Pitch | 0.5mm |
| M4 Thread Pitch | 0.7mm |
| Length Measurement | Measured from beneath the head to the end of the screw |
Available Sizes
| Thread Size | Screw Length | Thread Pitch |
|---|---|---|
| M3 | 4mm | 0.5mm |
| M3 | 6mm | 0.5mm |
| M3 | 8mm | 0.5mm |
| M3 | 10mm | 0.5mm |
| M3 | 12mm | 0.5mm |
| M3 | 16mm | 0.5mm |
| M3 | 20mm | 0.5mm |
| M3 | 25mm | 0.5mm |
| M4 | 6mm | 0.7mm |
Select your required thread size, screw length and pack quantity from the options above.
Fitting Information
Fit into a matching metric threaded hole or use with a compatible nut. Start the screw by hand to avoid cross-threading, then tighten gently with a flat-bladed screwdriver that fits the slot correctly.
Avoid overtightening, which can damage the plastic head or threads. Choose a length that provides sufficient thread engagement without bottoming out in a blind hole. Allow for the lower strength of nylon compared with steel when selecting these screws for an assembly.
