Product Description

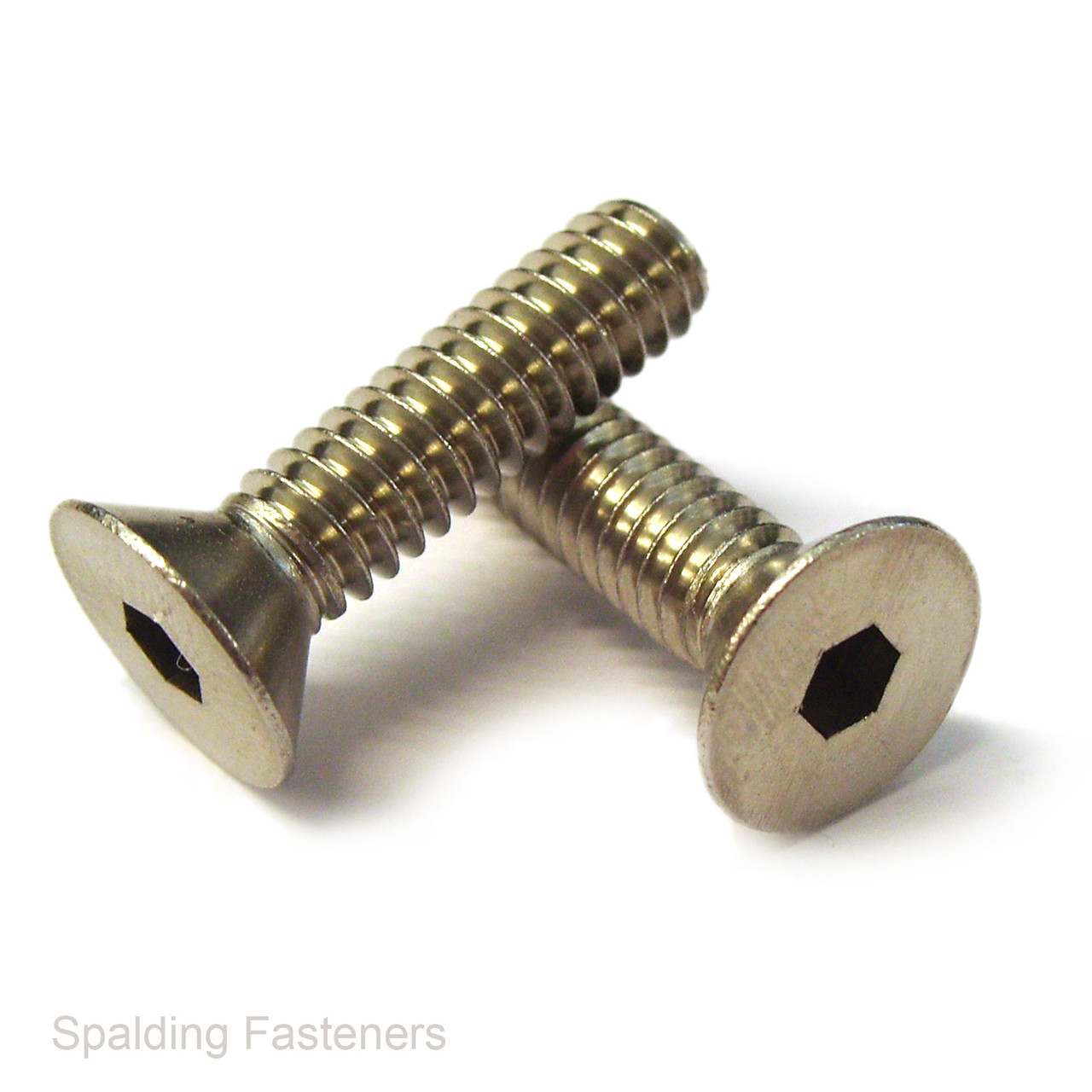

10-32 UNF A2 Stainless Steel Countersunk Socket Screws
These No.10-32 UNF countersunk socket screws are manufactured from A2 stainless steel for good general corrosion resistance. The fine 32 TPI thread is suitable for matching UNF nuts or tapped holes.
The flat countersunk head provides a flush finish when installed in a correctly prepared countersink. The internal hexagon socket accepts a 1/8" Allen key, making these screws suitable for panels, brackets, machinery and general engineering assemblies.
Technical Specifications
| Thread designation | No.10-32 UNF |
|---|---|
| Thread type | UNF — Unified National Fine |
| Threads per inch | 32 TPI |
| Material | A2 stainless steel |
| Dimensional standard | ASME B18.3 |
| Head style | Flat countersunk |
| Drive type | Internal hexagon socket |
| Allen key size | 1/8" |
| Maximum head diameter | 0.411" |
| Maximum head height | 0.127" |
| Minimum socket depth | 0.087" |
| Length measurement | Overall length, including the countersunk head |
Available Lengths
| Thread Size | Overall Length | Allen Key Size |
|---|---|---|
| No.10-32 UNF | 1/2" | 1/8" |
| No.10-32 UNF | 5/8" | 1/8" |
| No.10-32 UNF | 3/4" | 1/8" |
| No.10-32 UNF | 1" | 1/8" |
| No.10-32 UNF | 1¼" | 1/8" |
| No.10-32 UNF | 1½" — part threaded | 1/8" |
Please note: The 1½" length is part threaded. The head and unthreaded section together measure approximately 35/64". Allow for this when selecting the screw for your assembly.
Available Pack Quantities
Select the required length and pack quantity from the product options. Packs available: 5, 10, 20, 50 and 100.
Fitting Information
Use a correctly fitting 1/8" Allen key or hexagon bit with a matching No.10-32 UNF nut or tapped hole. Prepare the countersink to suit the head and select a screw length that provides adequate thread engagement without bottoming out.
Keep the driver fully engaged and tighten steadily. A suitable anti-seize compound can help reduce galling when assembling stainless steel threads. Follow the assembly's tightening requirements and account for lubrication.
