Product Description
125-Piece M6 & M8 Zinc Plated Hexagon Set Screw & Full Nut Assortment
A 125-piece assortment of M6 and M8 fully threaded hexagon head set screws with matching full nuts. The set screws are manufactured to DIN 933 in grade 8.8 high tensile steel with a zinc plated finish.
With five lengths in each thread size, this assortment keeps useful metric fasteners together for workshop repairs, maintenance and assembly work. Supplied in a plastic storage box with dividers and a clip-down lid.
Specifications
- Assortment Size: 125 piece
- Set Screw Standard: DIN 933
- Set Screw Property Class: 8.8
- Set Screw Material: High tensile steel
- Finish: Zinc plated
- Thread Sizes: M6 and M8
- Thread Type: Metric coarse, right hand
- Thread Coverage: Fully threaded
- Head Style: Hexagon
- Included Nuts: Matching hexagon full nuts
Thread and Head Dimensions
All dimensions are in millimetres. Head heights are nominal dimensions for the set screws.
| Thread Size | Thread Pitch | Set Screw Spanner Size | Nominal Head Height |
|---|---|---|---|
| M6 | 1.00 | 10 | 4.0 |
| M8 | 1.25 | 13 | 5.3 |

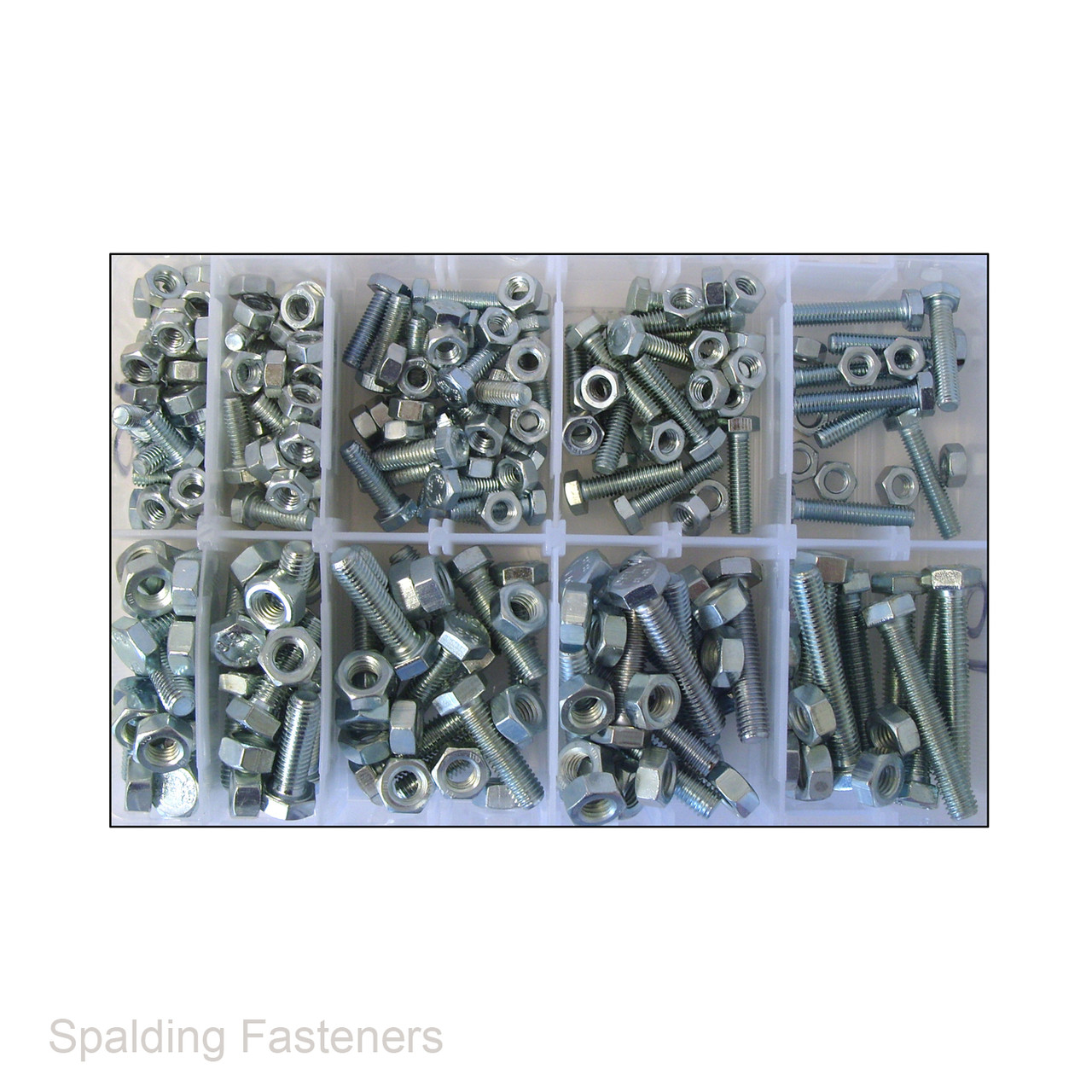

Assortment Contents
| Set Screw Size | Supplied With | Quantity |
|---|---|---|
| M6 × 12mm | Matching M6 full nut | 18 |
| M6 × 16mm | Matching M6 full nut | 18 |
| M6 × 20mm | Matching M6 full nut | 18 |
| M6 × 25mm | Matching M6 full nut | 15 |
| M6 × 30mm | Matching M6 full nut | 8 |
| M8 × 20mm | Matching M8 full nut | 10 |
| M8 × 25mm | Matching M8 full nut | 10 |
| M8 × 30mm | Matching M8 full nut | 10 |
| M8 × 40mm | Matching M8 full nut | 10 |
| M8 × 50mm | Matching M8 full nut | 8 |
Storage

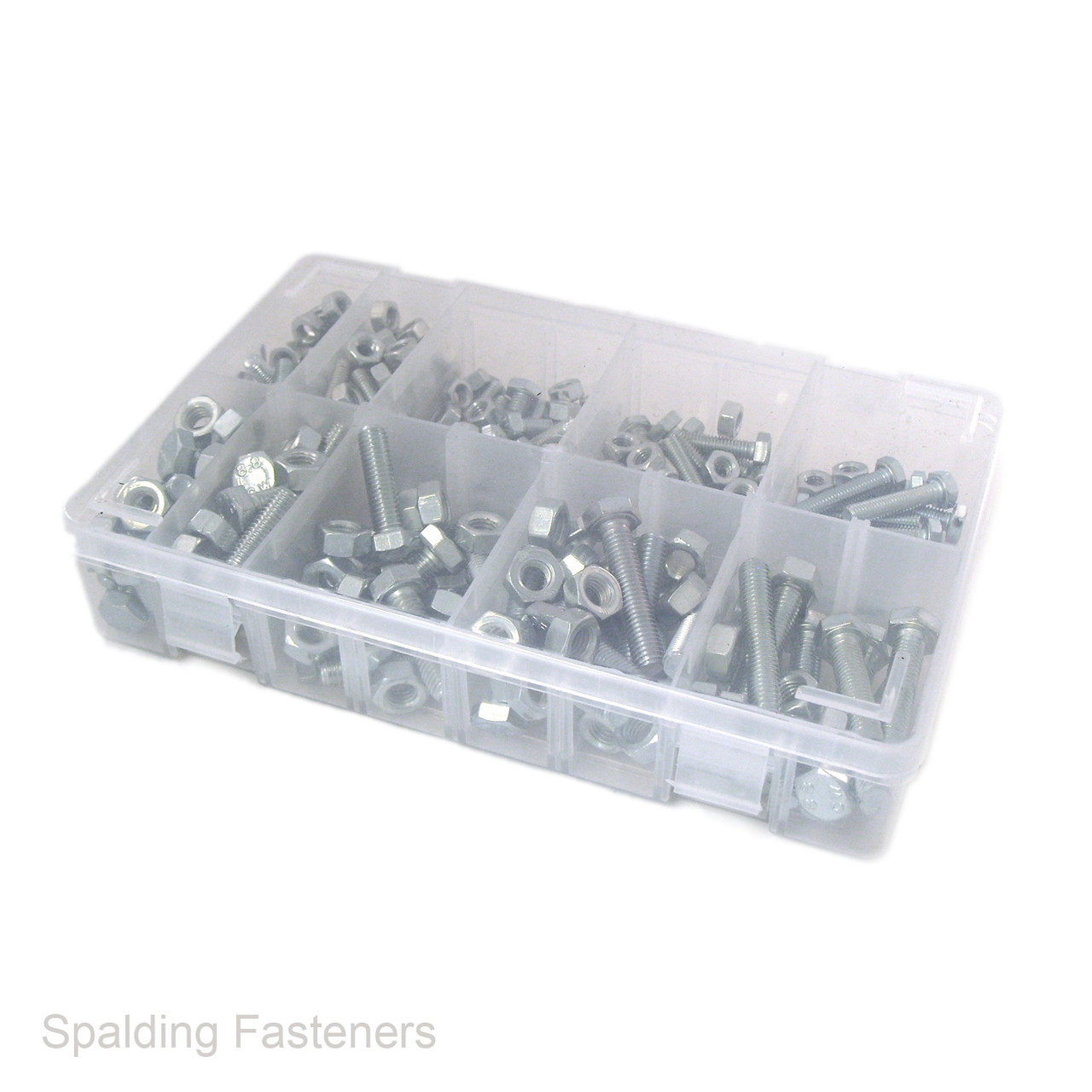

The complete set comes in a divided plastic box with a clip-down lid, helping keep the different sizes separated and easy to find.
Measuring and Fitting
Set screw lengths are measured from beneath the hexagon head to the end of the screw. Choose a length that provides sufficient engagement with the matching nut or tapped hole.
Start the thread by hand and tighten using the correct spanner or socket. The supplied full nuts are plain nuts; use a suitable locking method where required by the application.
