Product Description

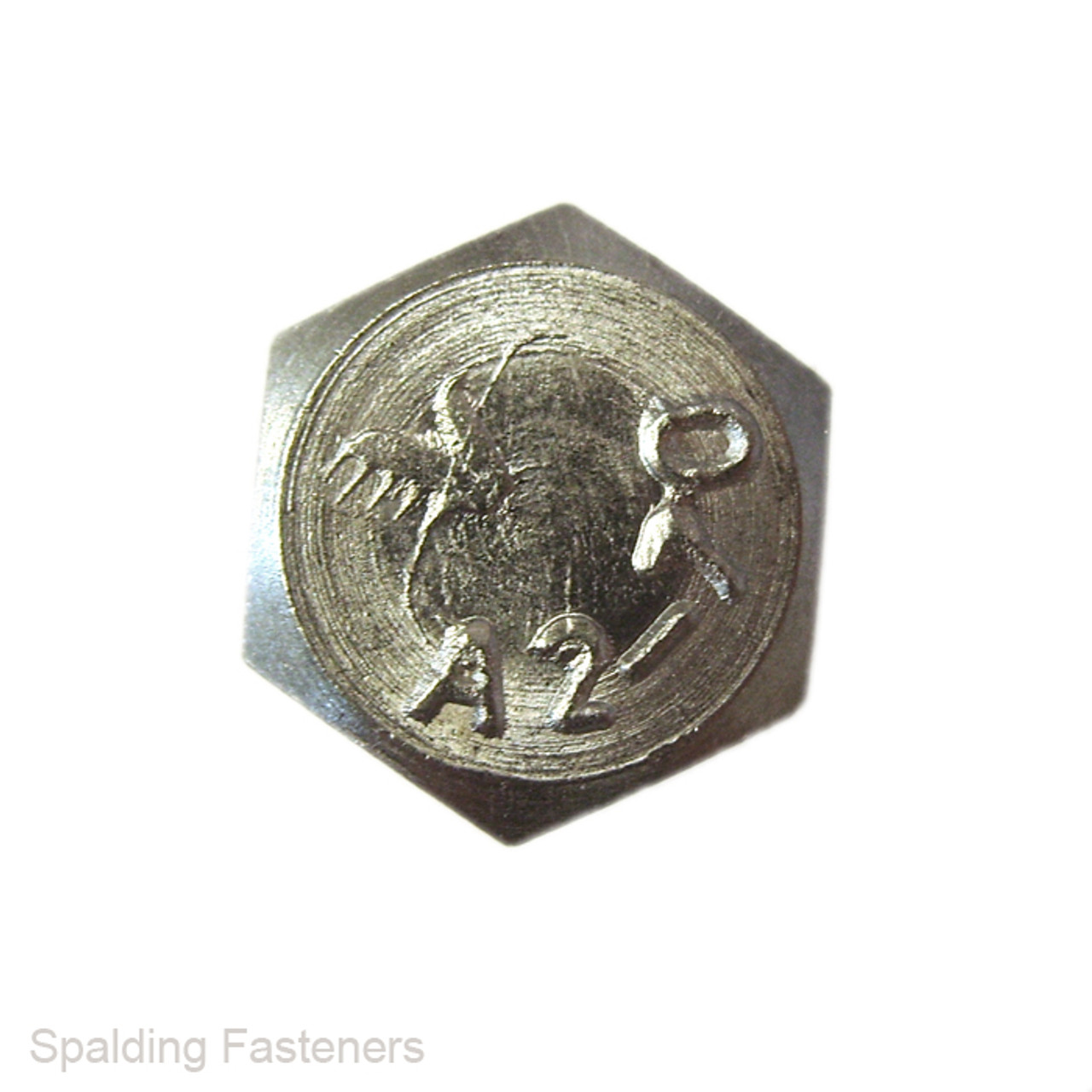

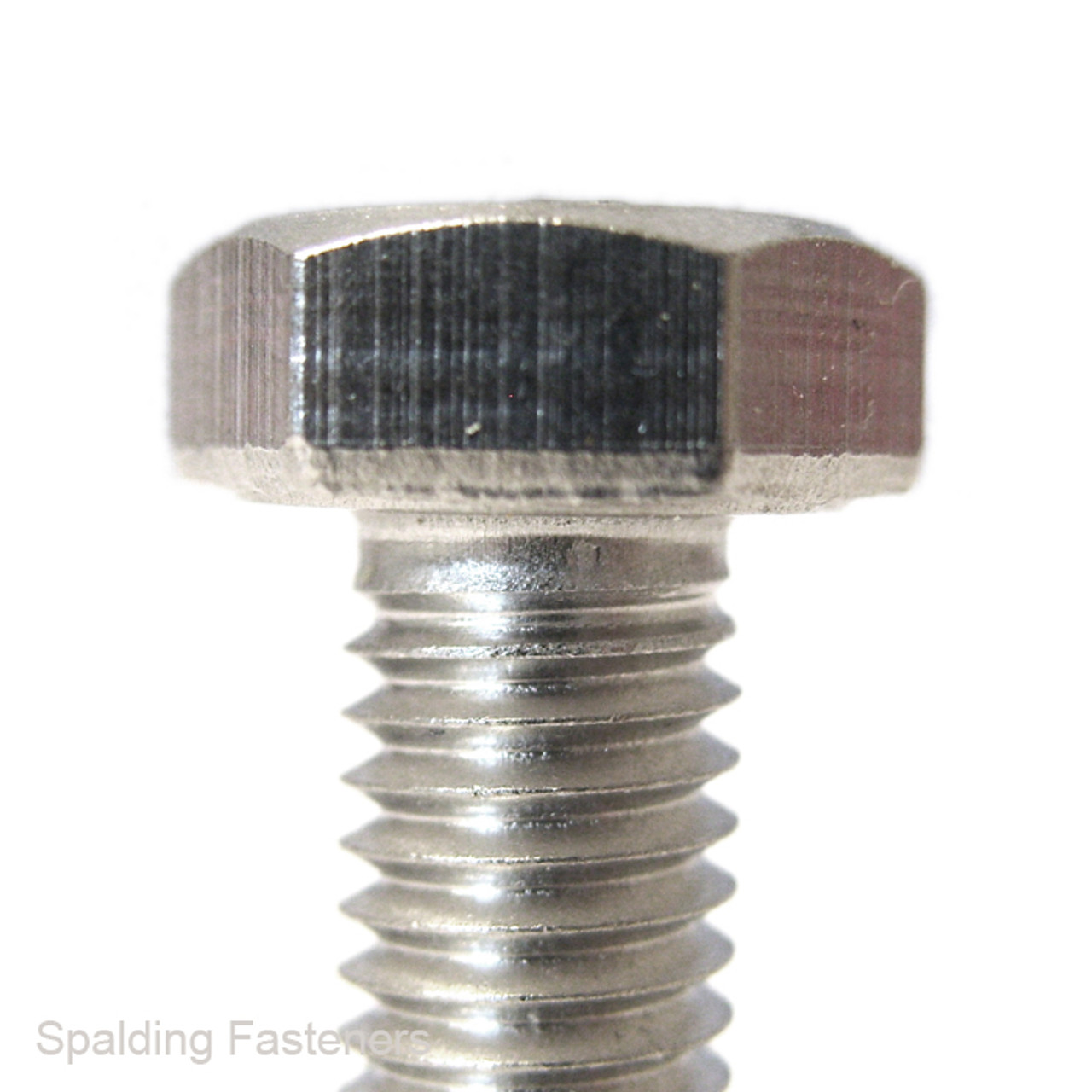

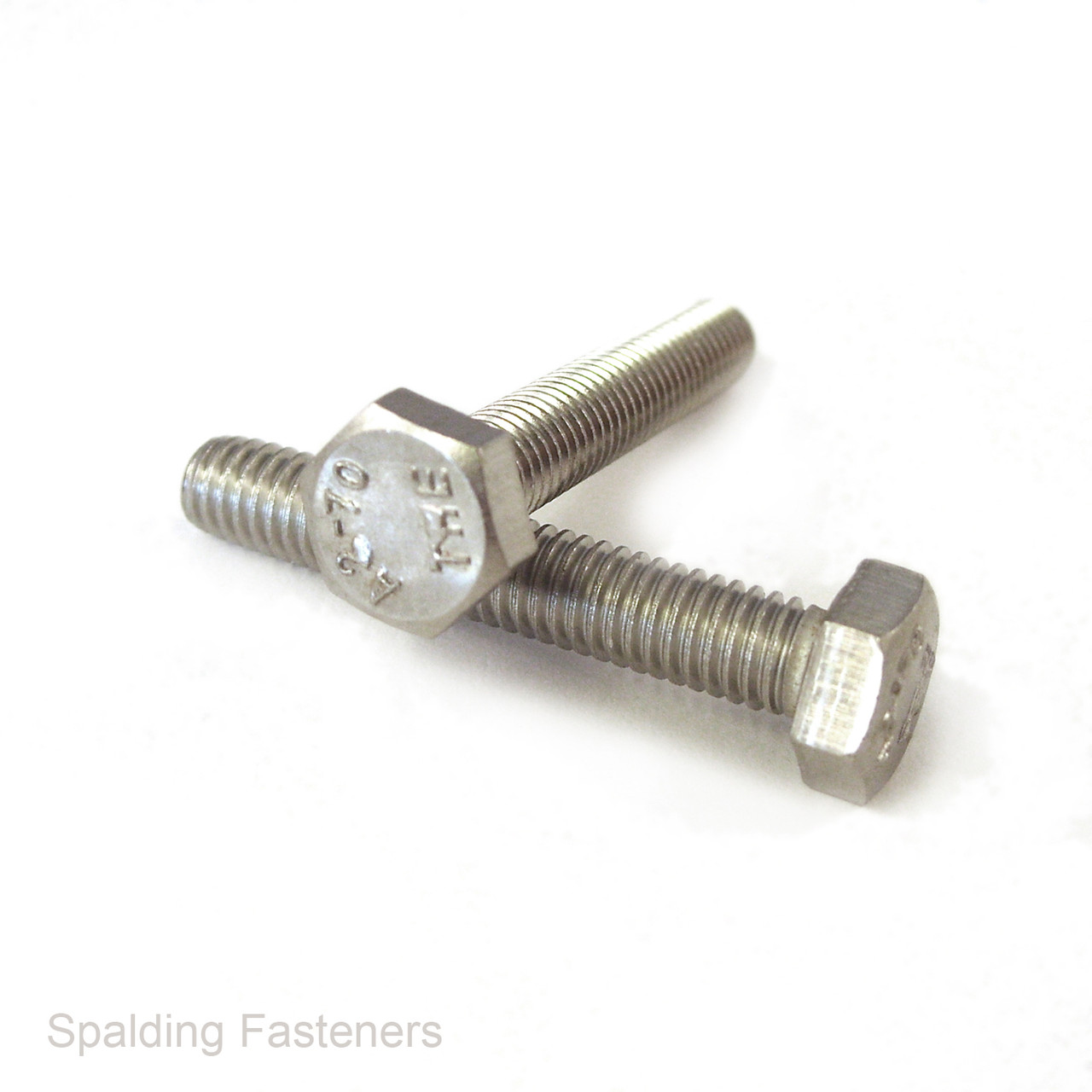

M6 x 1 A2 Stainless Steel Hexagon Set Screws
These M6 A2 stainless steel hexagon set screws feature a fully threaded shank and a standard 1mm metric coarse thread. They provide good resistance to everyday corrosion and are suitable for machinery, fabrication, automotive repairs, equipment assembly and general engineering work.
The screws are listed to DIN 933 dimensions. The current corresponding international and British standard is ISO 4017 / BS EN ISO 4017, covering fully threaded hexagon head screws manufactured from steel and stainless steel.
Product Details
- Thread diameter: M6
- Thread pitch: 1mm
- Thread type: Metric coarse
- Material: A2 stainless steel
- Head style: External hexagon head
- Spanner size: 10mm
- Nominal head height: 4mm
- Thread coverage: Fully threaded
- Legacy dimensional standard: DIN 933
- Current equivalent: ISO 4017 / BS EN ISO 4017
- Length measurement: From beneath the head
Technical Dimensions
| Thread Size | Thread Pitch | Width Across Flats | Nominal Head Height | Thread Coverage |
|---|---|---|---|---|
| M6 | 1mm | 10mm | 4mm | Fully threaded |
Select the required screw length and pack quantity from the available product options. Screw length is measured from beneath the hexagon head to the end of the threaded shank.
Benefits of A2 Stainless Steel
- Good resistance to moisture and atmospheric corrosion
- Suitable for many indoor and general outdoor applications
- No protective zinc coating to chip or wear away
- Clean appearance suitable for exposed installations
- Fully threaded design provides maximum adjustment and engagement
Typical Applications
- Machinery and equipment assembly
- Automotive and motorcycle repairs
- Brackets, panels, guards and enclosures
- Fabrication and workshop projects
- Furniture, fixtures and general construction
- Maintenance and engineering applications
Installation Guidance
Install using a correctly fitting 10mm spanner or socket. Select a suitable tightening torque for the fastener property class, mating thread and clamped materials. Avoid excessive tightening when fastening into aluminium, plastic or another relatively soft material.
Stainless steel threads can gall or seize when assembled quickly, without lubrication or under high tightening pressure. A suitable anti-seize compound may be beneficial where the fasteners will be repeatedly fitted and removed.
A2 stainless steel is suitable for many general applications but may not be appropriate for prolonged exposure to seawater, salt spray or strongly chlorinated environments. A4 stainless steel should be considered for demanding marine and chloride-rich conditions.
Please select the required screw length and pack quantity from the options provided.
