Product Description

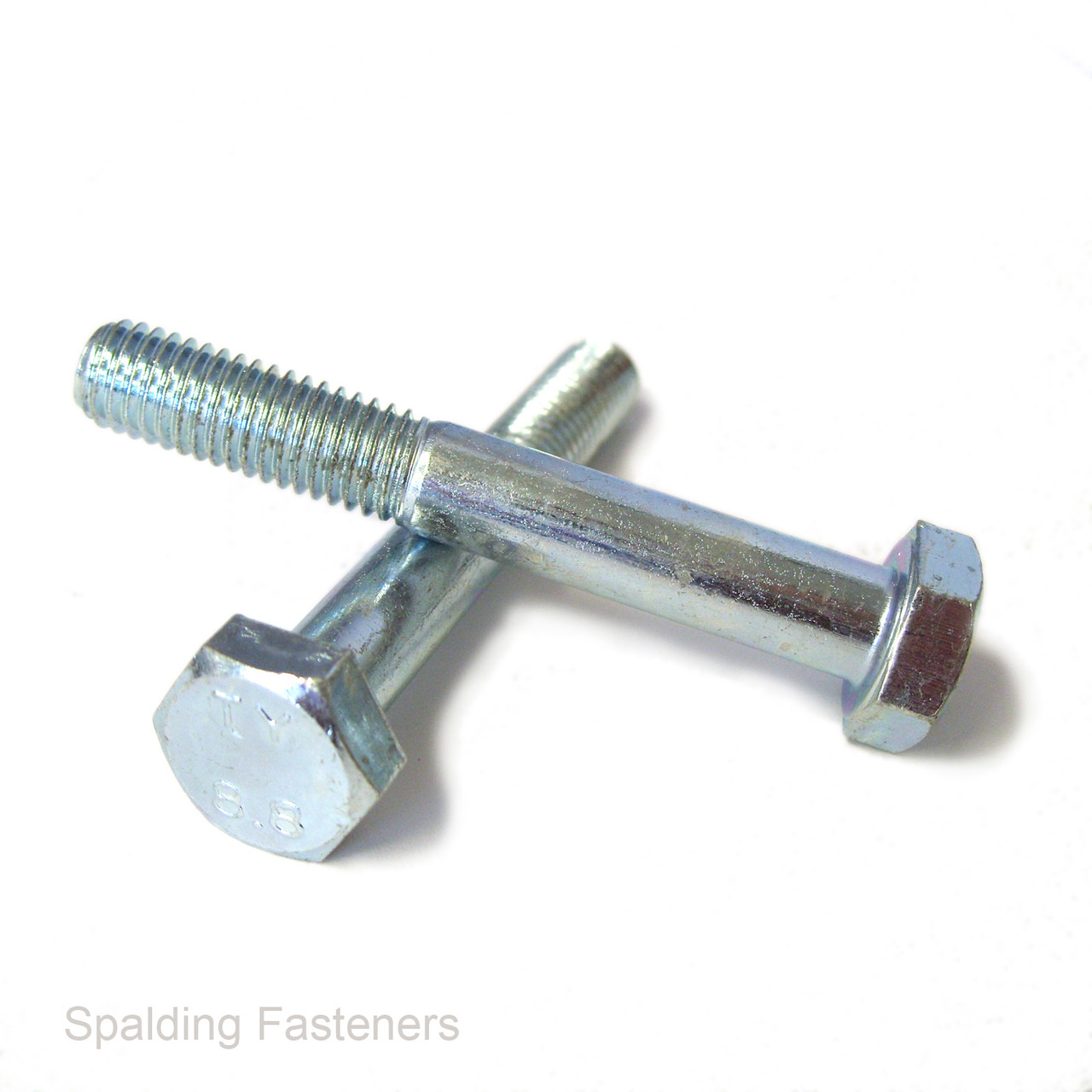

132 Assorted M7 Grade 8.8 Zinc Plated Hexagon Bolts & Full Nuts
An assortment of 66 part threaded hexagon head bolts and 66 matching full nuts for maintenance, repairs and general assembly. Includes six bolt lengths from 35mm to 70mm, each with an unthreaded shank beneath the head.
Specifications
- Material: steel.
- Finish: zinc plated.
- Bolt strength: property class 8.8 high tensile.
- Thread: M7 × 1.0mm metric coarse, right-hand.
- Head style: hexagon.
- Bolts are part threaded with an unthreaded shank.
- Total contents: 132 pieces.
Contents
Bolt sizes show thread diameter × length in millimetres.
| Component | Size | Quantity |
|---|---|---|
| Part threaded hexagon bolt | M7 × 35 | 15 |
| Part threaded hexagon bolt | M7 × 40 | 15 |
| Part threaded hexagon bolt | M7 × 45 | 10 |
| Part threaded hexagon bolt | M7 × 50 | 10 |
| Part threaded hexagon bolt | M7 × 60 | 8 |
| Part threaded hexagon bolt | M7 × 70 | 8 |

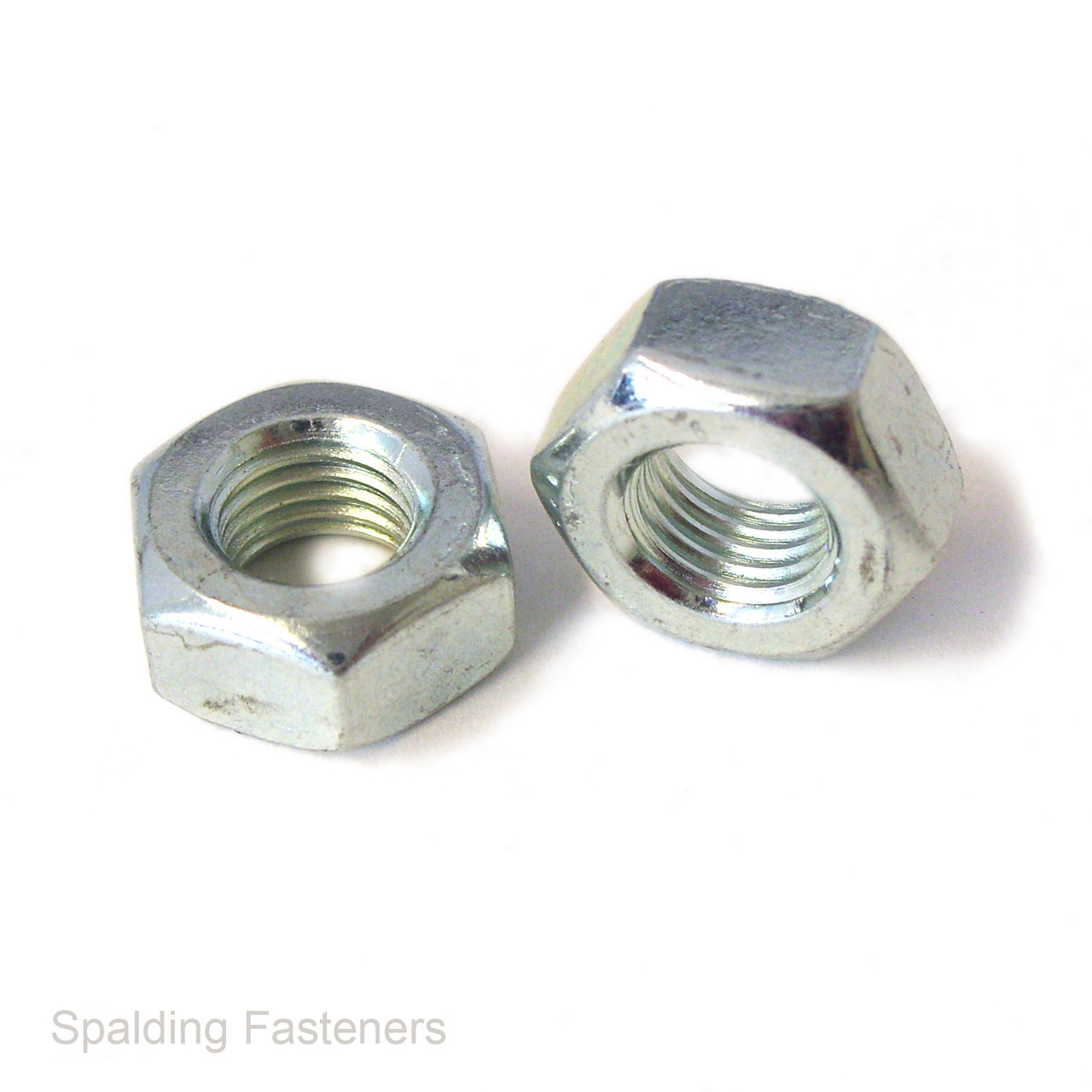

| Full nut | M7 × 1.0mm thread | 66 |
| Total | 132 | |
Bolt Dimensions
DIN 931 dimensional reference for M7 part threaded hexagon bolts.
| Measurement | Size |
|---|---|
| Nominal thread diameter | 7mm |
| Thread pitch | 1.0mm |
| Hexagon head spanner size | 11mm |
| Nominal head height | 4.8mm |
Packaging Options
- Boxed set: clear plastic storage box with clip-down lid.
- Refill pack: supplied without a storage box.
Measuring & Fitting
Measure bolt length from beneath the head to the tip, including both the shank and threaded section. Choose a length that provides sufficient thread engagement without the nut tightening against the unthreaded shank.
For fully threaded alternatives, see our M7 hexagon set screw and nut assortment. Browse additional washers and nuts.
