Product Description
A2 Stainless Steel Serrated Flange Nut Assortment – 84 Pieces
An 84-piece assortment of DIN 6923 A2 stainless steel serrated flange nuts in M4, M5, M6, M8 and M10 sizes. All feature standard metric coarse threads.
The integral flange spreads the fastening load, while serrations beneath the flange grip the mating surface to help resist loosening.
Technical Specifications
- Material: A2 stainless steel
- Standard: DIN 6923
- Thread: Metric coarse
- Flange: Serrated underside
- Total quantity: 84 nuts
Assortment Contents and Dimensions
| Thread Size | Thread Pitch | Spanner Size | Maximum Flange Diameter | Quantity |
|---|---|---|---|---|
| M4 | 0.7mm | 7mm | 10mm | 15 |
| M5 | 0.8mm | 8mm | 11.8mm | 20 |
| M6 | 1.0mm | 10mm | 14.2mm | 20 |
| M8 | 1.25mm | 13mm | 17.9mm | 19 |
| M10 | 1.5mm | 15mm | 21.8mm | 10 |
Packaging Options

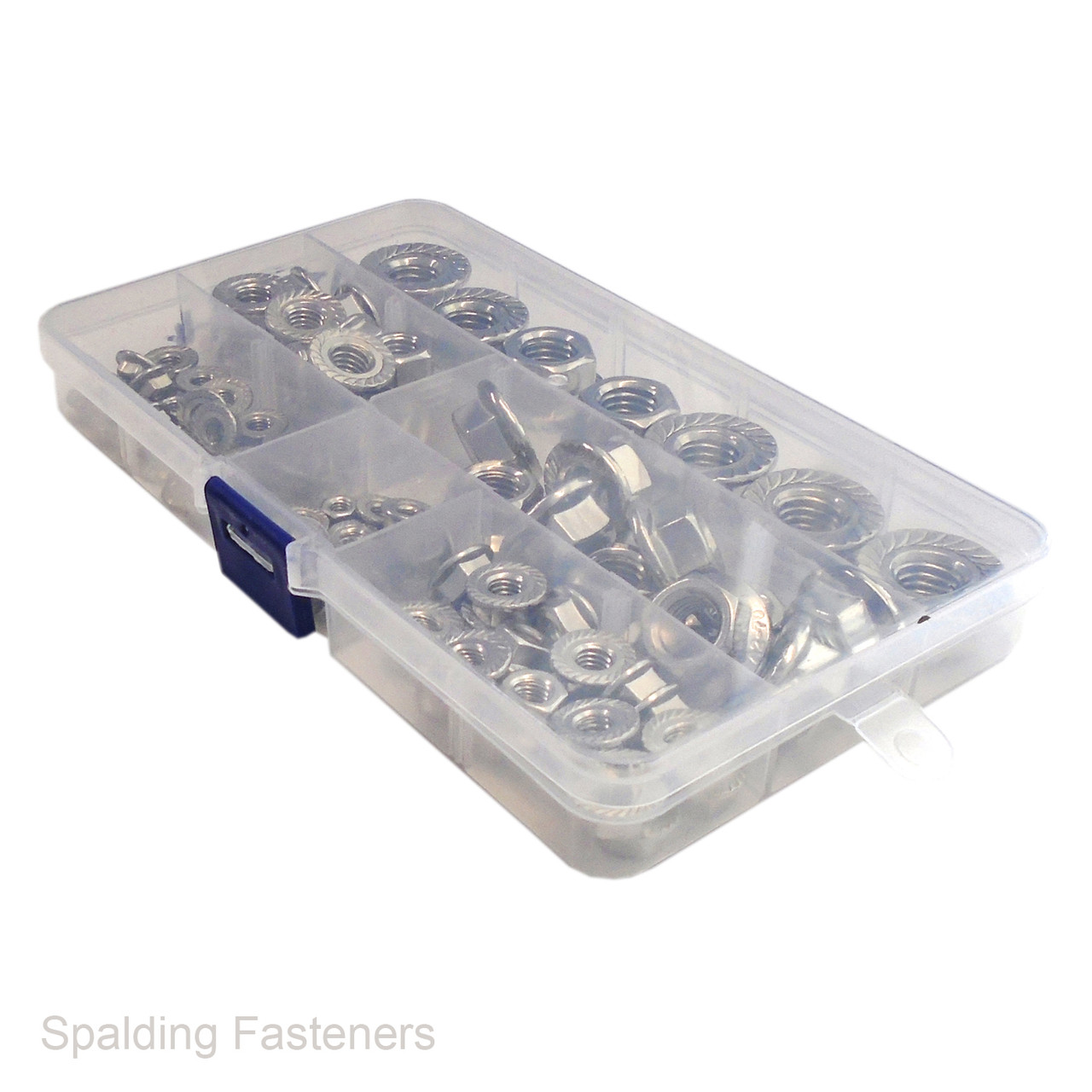

- Boxed kit: Plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a box.
Select the required packaging option before ordering. Match the nut size and thread pitch to the screw, bolt or threaded stud.
