Product Description
190 Assorted A2 Stainless Steel Serrated Hex Flange Nuts – M3 to M10
A 190-piece assortment of A2 stainless steel serrated hexagon flange nuts in six metric coarse thread sizes. Includes M3, M4, M5, M6, M8 and M10 nuts for workshop assembly, maintenance and repairs.
Specifications
- Material: A2 stainless steel.
- Nut type: hexagon flange nut with a serrated bearing face.
- Thread: standard metric coarse.
- Sizes included: M3, M4, M5, M6, M8 and M10.
- Total quantity: 190 nuts.

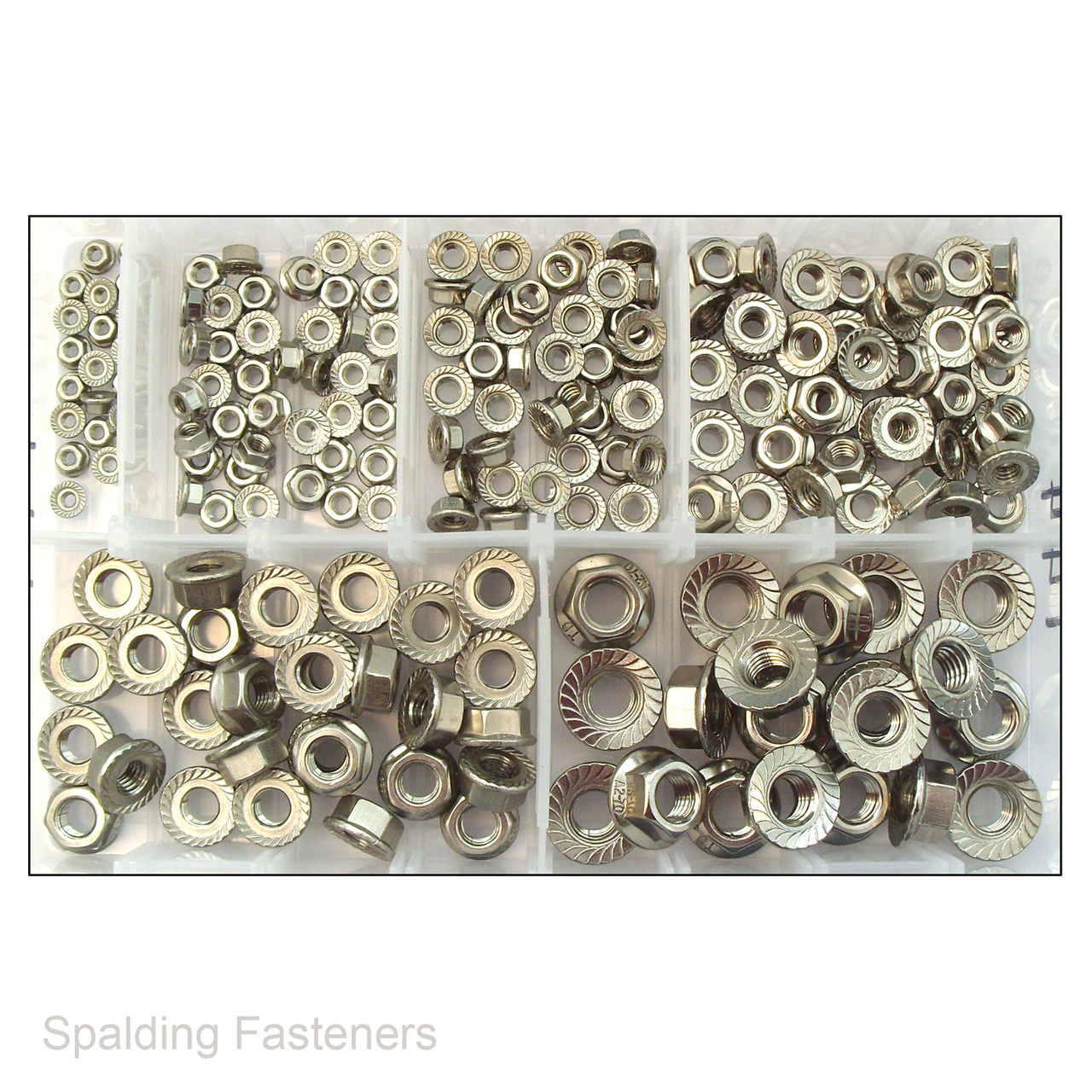

Assortment Contents
| Thread Size | Thread Pitch | Quantity |
|---|---|---|
| M3 | 0.50mm | 20 |
| M4 | 0.70mm | 40 |
| M5 | 0.80mm | 40 |
| M6 | 1.00mm | 40 |
| M8 | 1.25mm | 30 |
| M10 | 1.50mm | 20 |
| Total | 190 | |
Spanner Sizes and Nut Dimensions
Reference dimensions for the DIN 6923 serrated flange nut pattern. All measurements below are in millimetres.
| Thread Size | Spanner Size | Maximum Flange Diameter | Nut Height |
|---|---|---|---|
| M3 | 5.5 | 8.0 | 3.70–4.00 |
| M4 | 7 | 10.0 | 4.20–4.50 |
| M5 | 8 | 11.8 | 4.70–5.00 |
| M6 | 10 | 14.2 | 5.70–6.00 |
| M8 | 13 | 17.9 | 7.60–8.00 |
| M10 | 15 | 21.8 | 9.60–10.00 |
Packaging Options

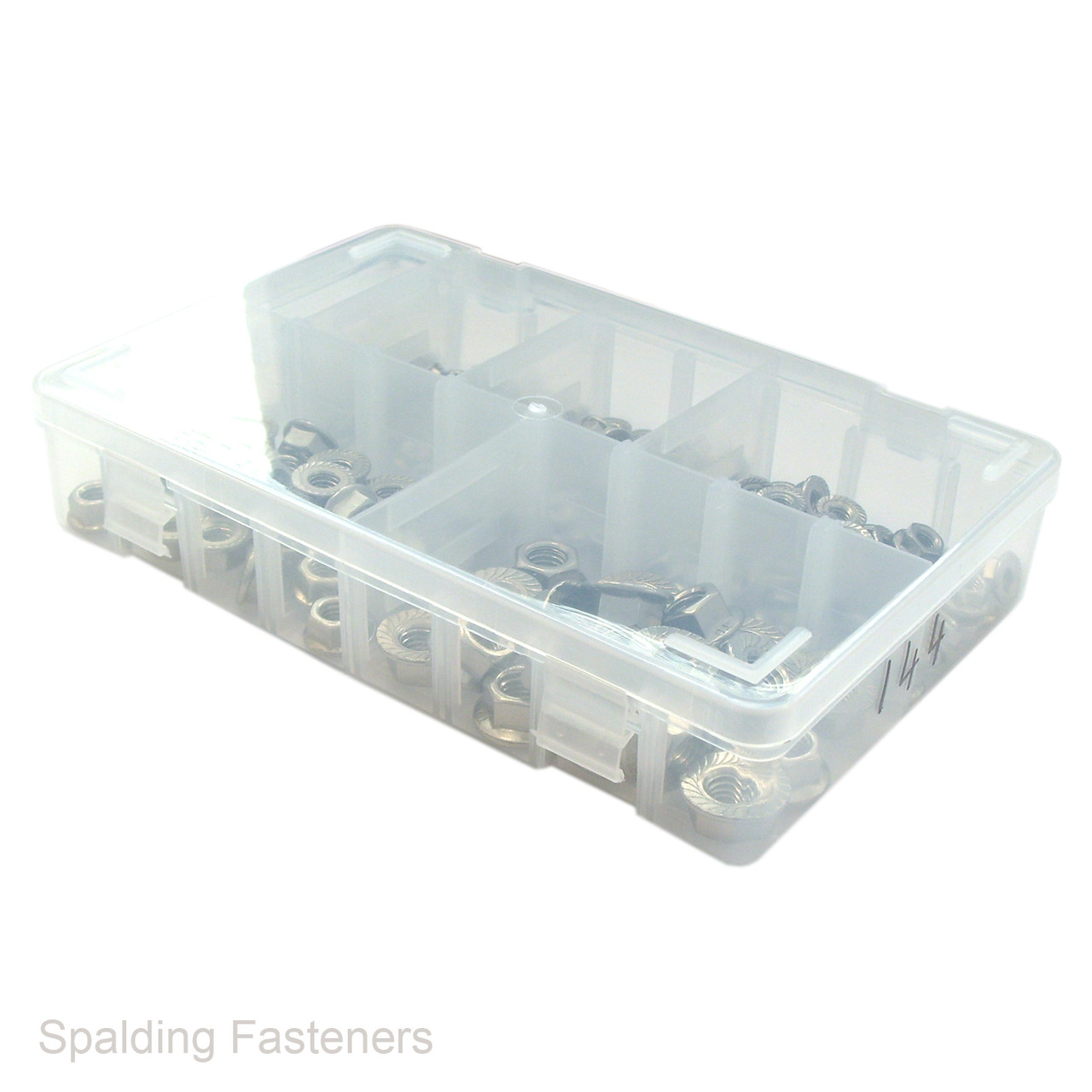

- Boxed set: supplied in a plastic storage case with a clip-down lid.

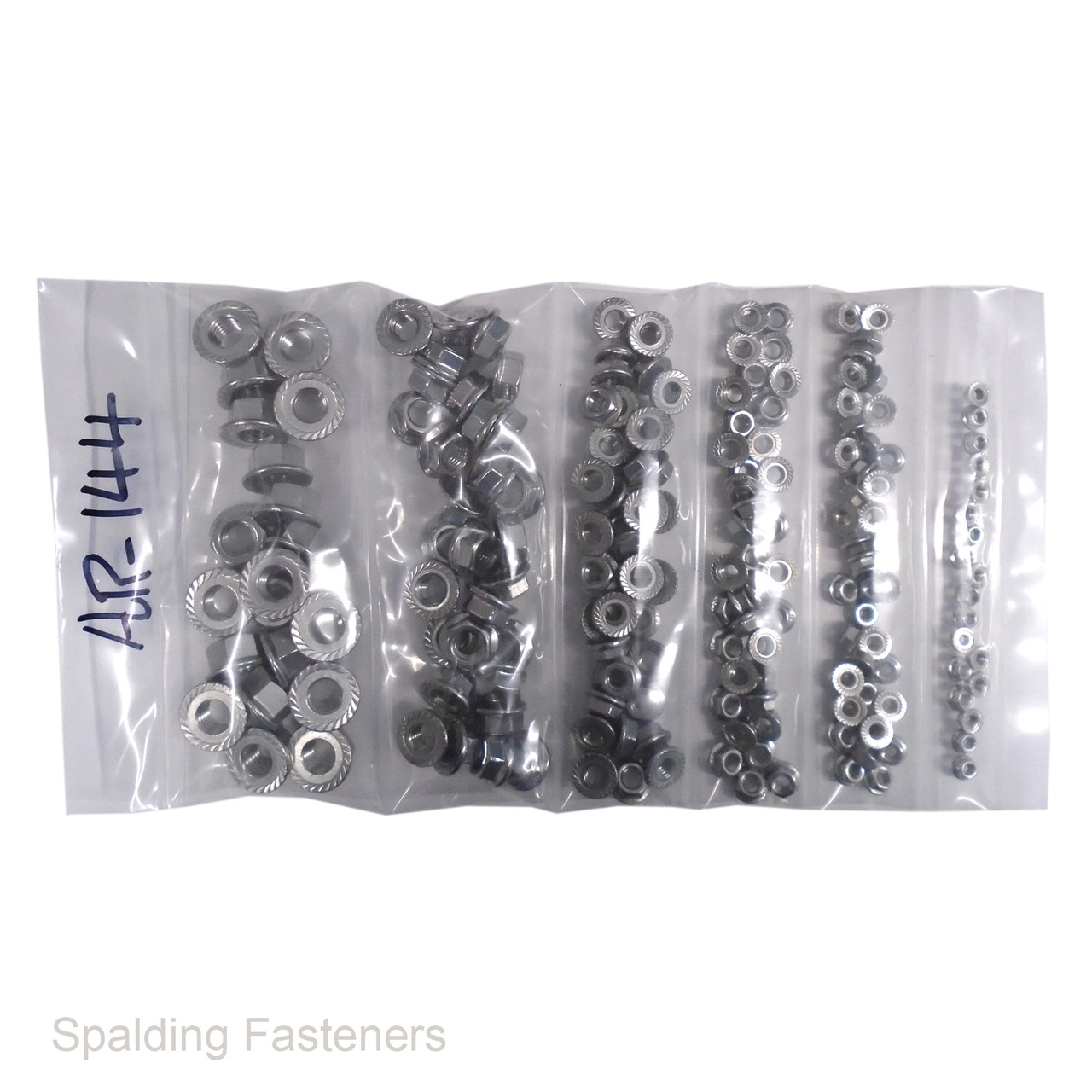

- Refill pack: supplied without a storage box.
Selecting and Fitting
Match the thread diameter and pitch to the bolt, set screw or threaded bar. Start the nut by hand before tightening with the correct spanner or socket. The M size identifies the thread diameter, not the spanner size.
