Product Description
Zinc Plated Steel Hexagon Rivet Nut Kit – 79 Pieces, M4–M10
A 79-piece assortment of zinc plated steel hexagon body rivet nuts in five metric sizes. Also known as rivnuts or nutserts, these inserts create an internal thread in suitable sheet materials where access is available from one side.

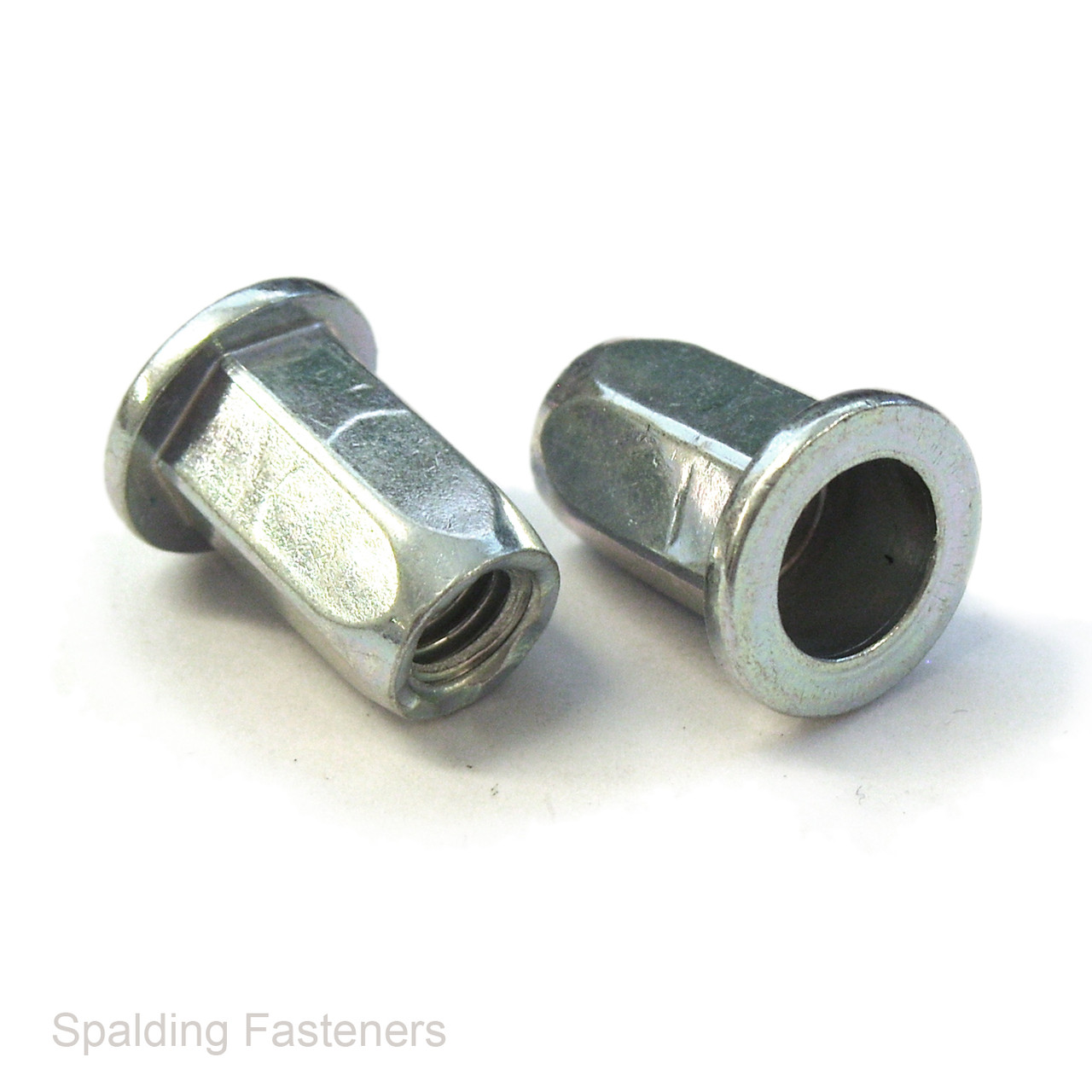

The hexagon body fits into a matching hexagonal hole to help resist rotation. Installation requires a suitable rivet nut setting tool with the correct threaded mandrel.
Specifications
- Material: Steel.
- Finish: Zinc plated for corrosion resistance.
- Body type: Hexagon.
- Thread: Metric coarse.
- Sizes: M4, M5, M6, M8 and M10.
- Total quantity: 79 rivet nuts.

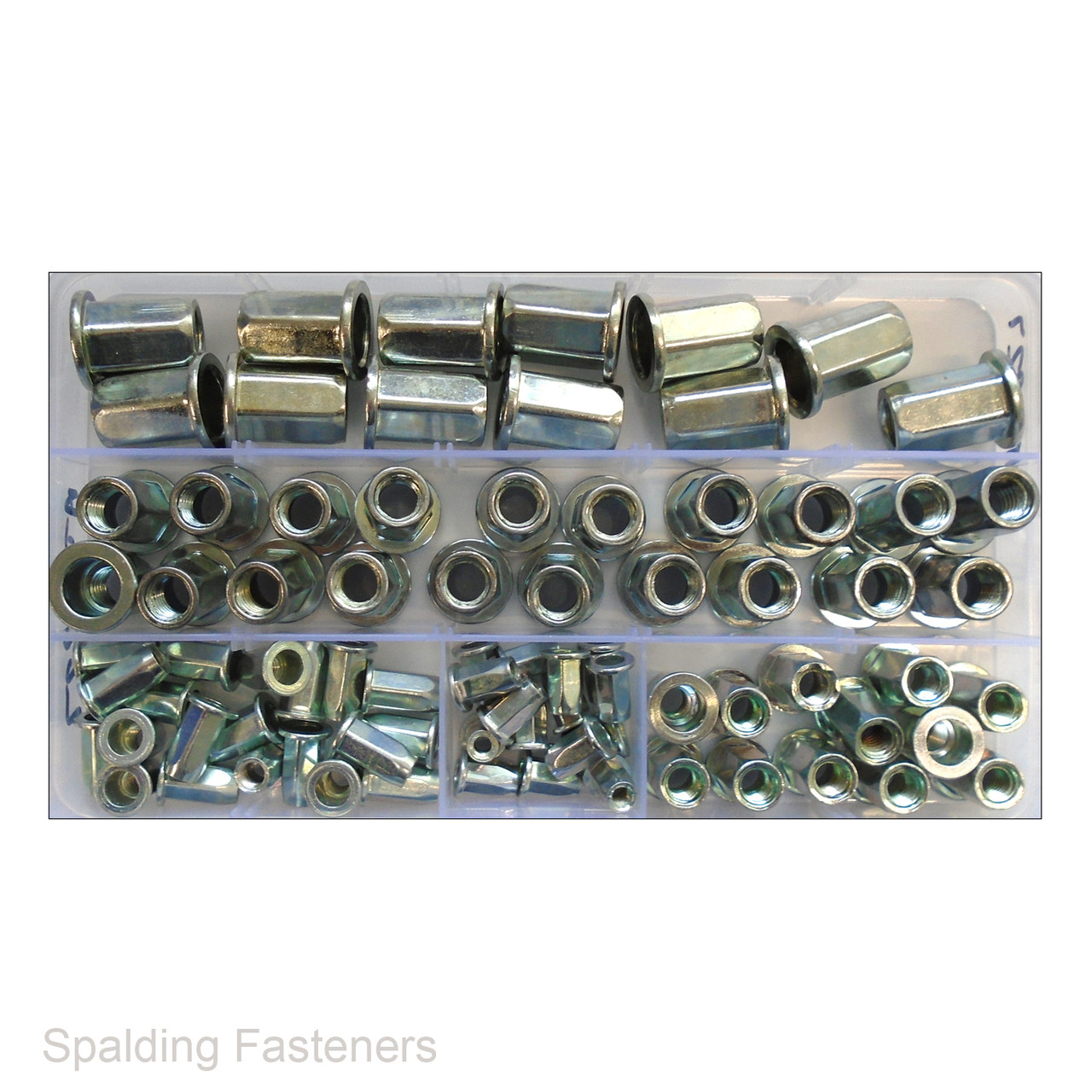

Kit Contents and Thread Pitches
| Thread Size | Thread Pitch | Quantity |
|---|---|---|
| M4 | 0.7mm | 15 |
| M5 | 0.8mm | 20 |
| M6 | 1.0mm | 12 |
| M8 | 1.25mm | 20 |
| M10 | 1.5mm | 12 |
Installation
Match the rivet nut to the required screw thread, panel thickness and installation hole dimensions. The M-size identifies the internal thread, not the hole size. Set the insert using a compatible rivet nut tool.
Packaging Options

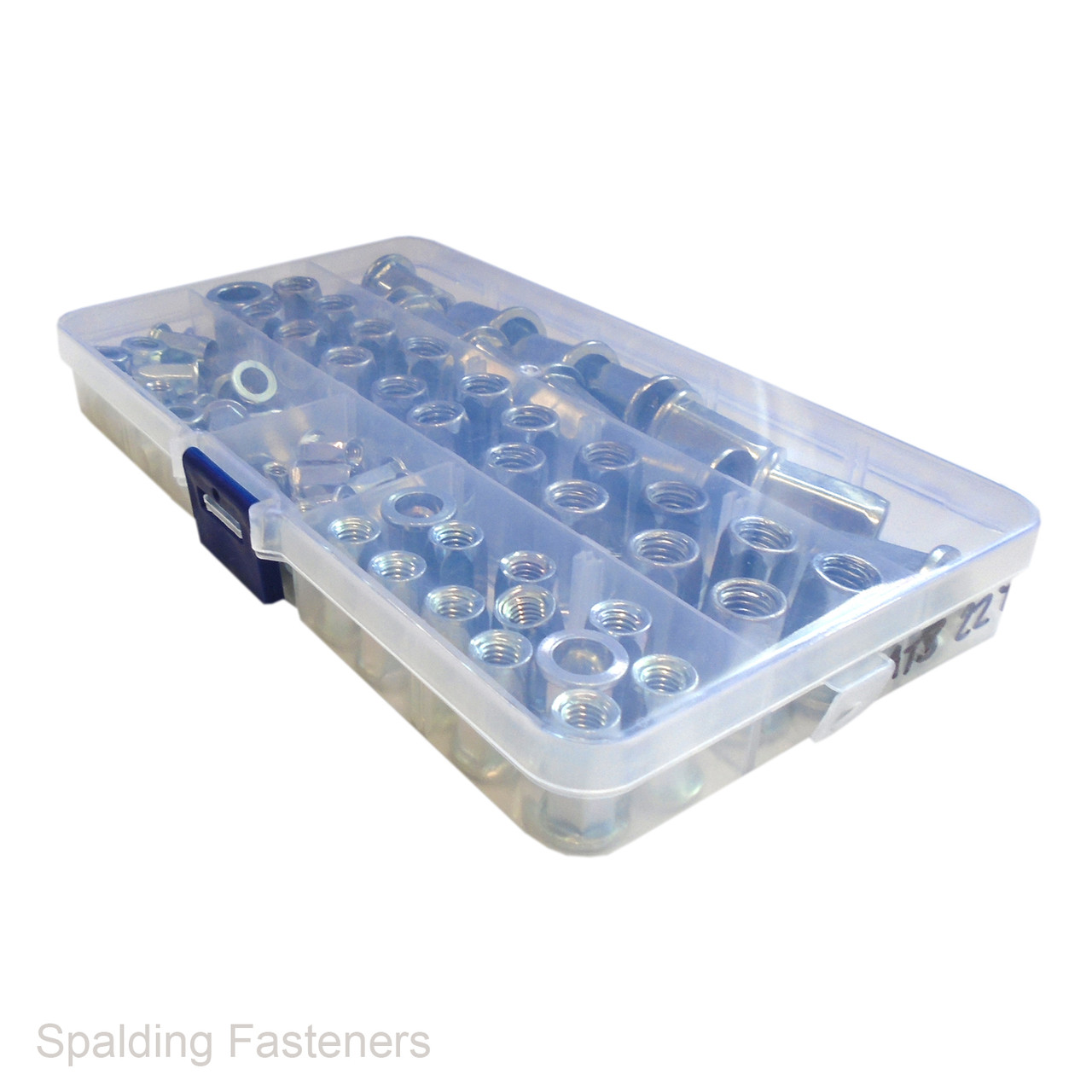

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

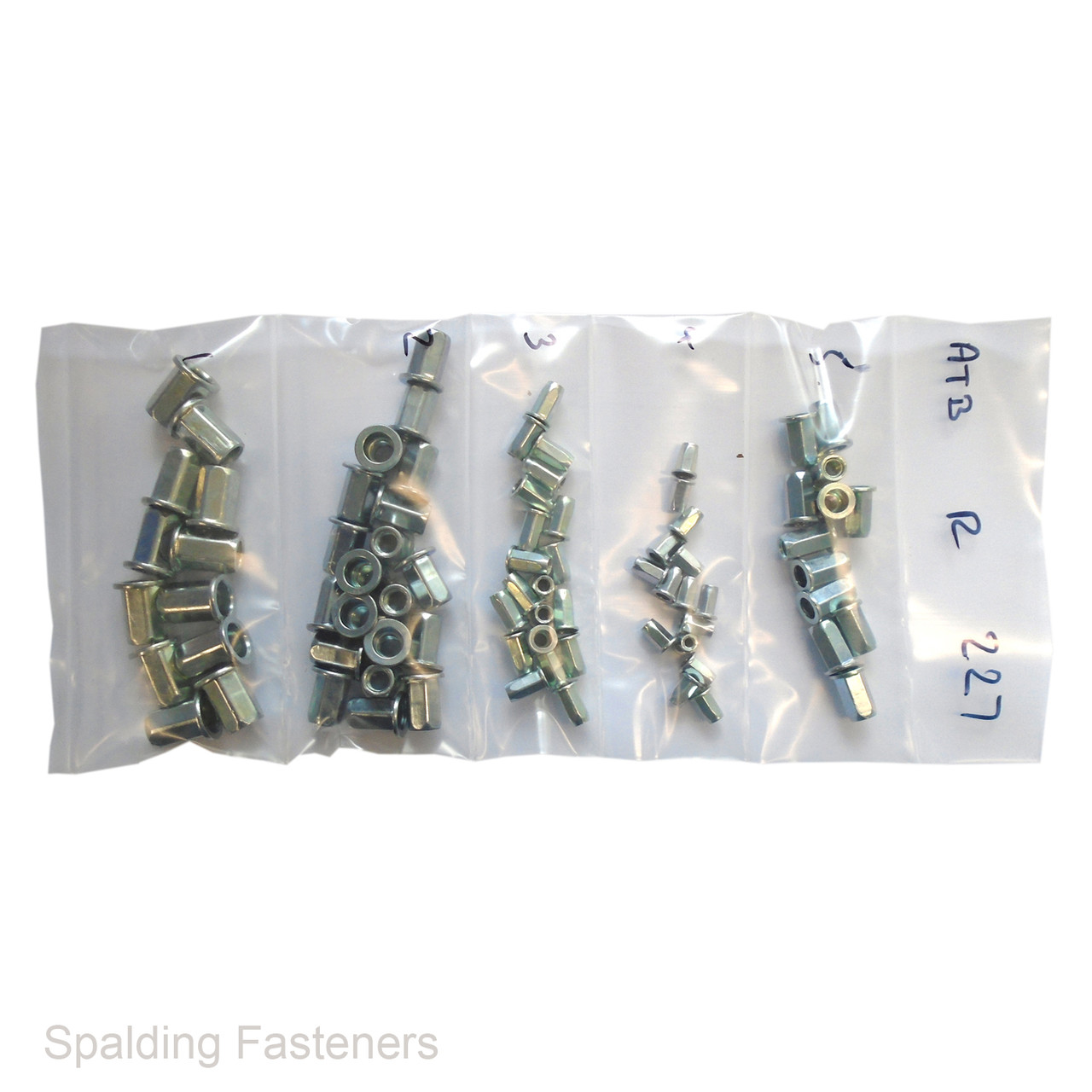

- Refill pack: Supplied without a storage box.
Select the boxed kit or refill pack when ordering.
