Product Description

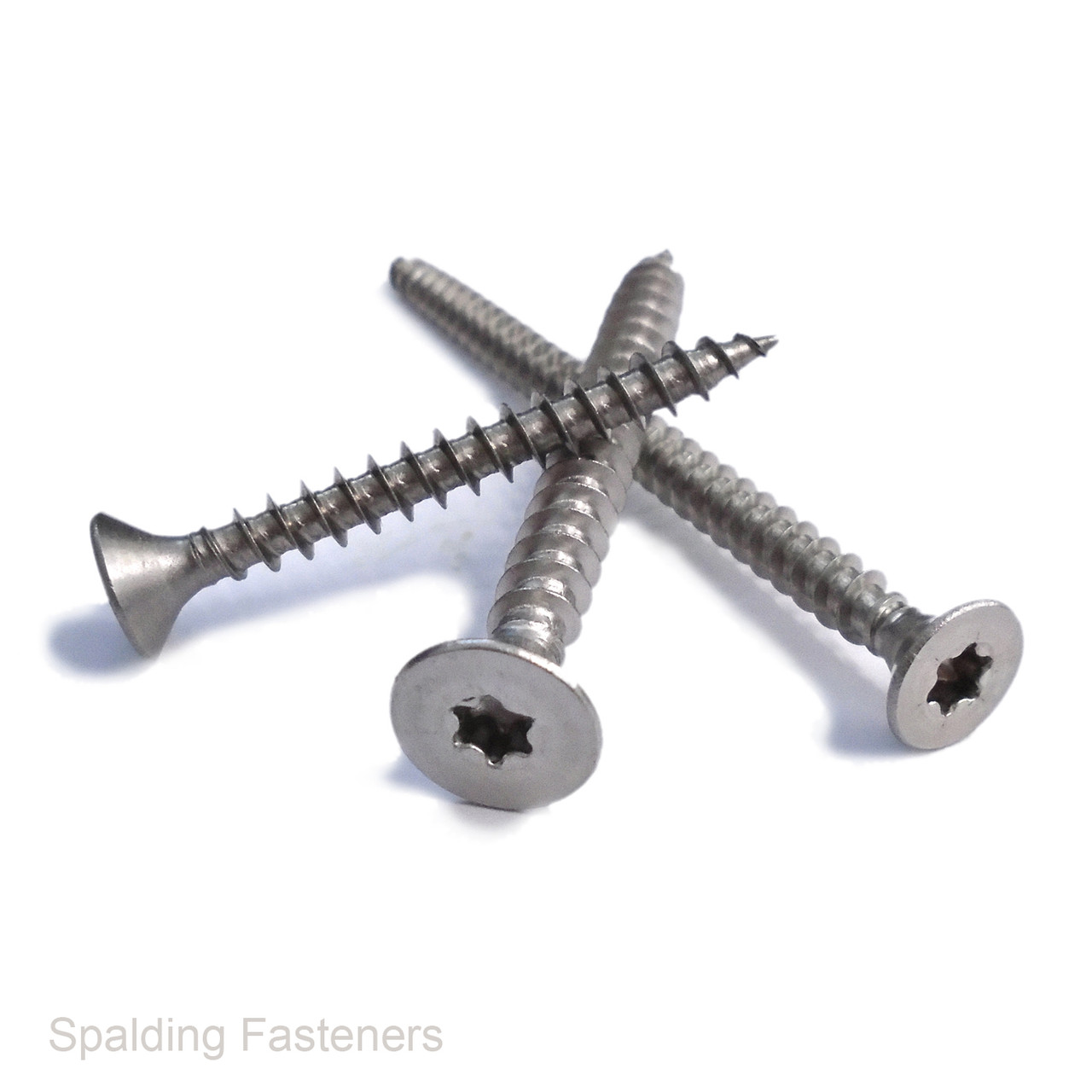

3mm A2 Stainless Steel Countersunk Torx Chipboard Screws
These 3mm chipboard screws are manufactured from A2 stainless steel and feature a countersunk head with a TX10 Torx drive. Suitable for chipboard and other wood materials, they provide a corrosion-resistant fastening option for furniture, cabinetry, repairs and general woodworking.
The countersunk head allows a flush finish when correctly seated. The six-lobe Torx recess provides positive engagement with a matching TX10 driver bit.
Product Specifications
| Material | A2 stainless steel |
|---|---|
| Nominal Screw Diameter | 3mm |
| Head Type | Countersunk / flat head |
| Drive Type | Torx / six-lobe |
| Driver Size | TX10 |
| Application | Chipboard and other wood materials |
| Length Measurement | Overall length, including the head |
Available Sizes
| Nominal Diameter | Overall Length | Driver Size |
|---|---|---|
| 3mm | 12mm | TX10 |
| 3mm | 16mm | TX10 |
| 3mm | 20mm | TX10 |
| 3mm | 25mm | TX10 |
| 3mm | 30mm | TX10 |
| 3mm | 35mm | TX10 |
| 3mm | 40mm | TX10 |
Head Dimensions
Reference dimensions for the 3mm countersunk Torx chipboard screw head:
- Head diameter: 5.70–6.00mm
- Nominal head height: 1.80mm
- Drive: TX10
Installation
Choose a screw length that provides suitable engagement without breaking through the opposite face. Use a correctly fitting TX10 driver bit and control the final tightening to seat the head without damaging the board.
A suitable pilot hole is advisable in hardwood, near edges or where splitting is a concern. Screw length is measured from the top of the countersunk head to the tip.
Select the required length and pack quantity using the product options.
