Product Description
No.2 zinc plated steel pan pozi self tapping screws to DIN 7981, also known as Type AB pan pozi self tappers.

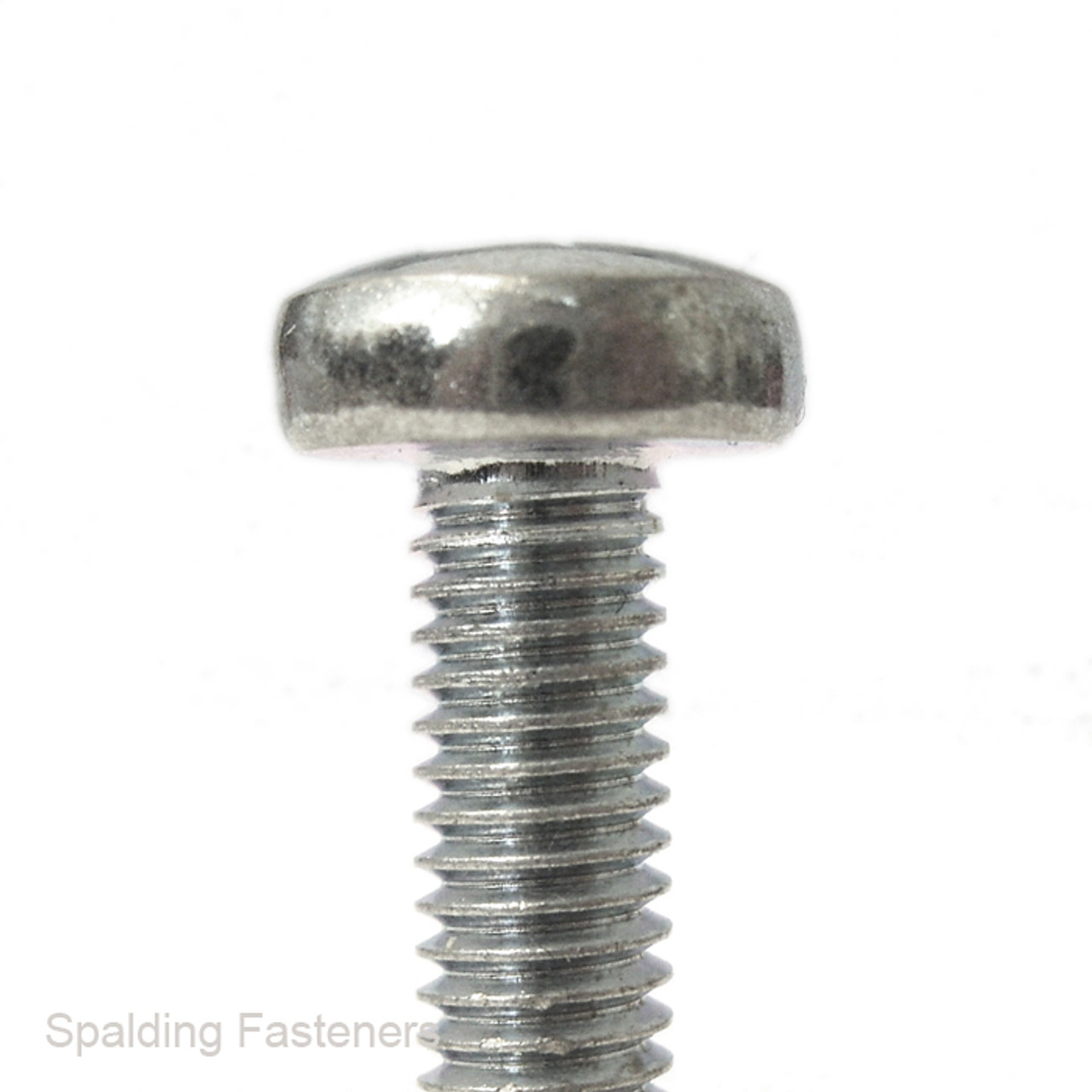

These small self tapping screws feature a pan head for a neat rounded finish, with a pozi drive for easy installation using standard pozi screwdrivers or bits. The self tapping thread is designed for fastening into suitable pilot holes in sheet metal, plastics and other light materials.
The zinc plated steel finish provides general corrosion resistance for indoor, workshop, repair, maintenance and light engineering applications.
- No.2 imperial size self tapping screws
- 2.2mm screw diameter
- Zinc plated steel finish
- DIN 7981 pan pozi self tapping screw pattern
- Type AB self tapping thread
- Pan head for a neat rounded finish
- Pozi drive
- Available in 3/16", 1/4", 3/8", 1/2" and 5/8" lengths
| A | B | C | D | E | F | G | H |
| No.2 | 2.2mm | 1/2" | 13mm | 11/64" | 4.2mm | 1/16" | 1.8mm |
| No.2 | 2.2mm | 1/4" | 6mm | 11/64" | 4.2mm | 1/16" | 1.8mm |
| No.2 | 2.2mm | 3/16" | 5mm | 11/64" | 4.2mm | 1/16" | 1.8mm |
| No.2 | 2.2mm | 3/8" | 9.5mm | 11/64" | 4.2mm | 1/16" | 1.8mm |
| No.2 | 2.2mm | 5/8" | 16mm | 11/64" | 4.2mm | 1/16" | 1.8mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
