Product Description

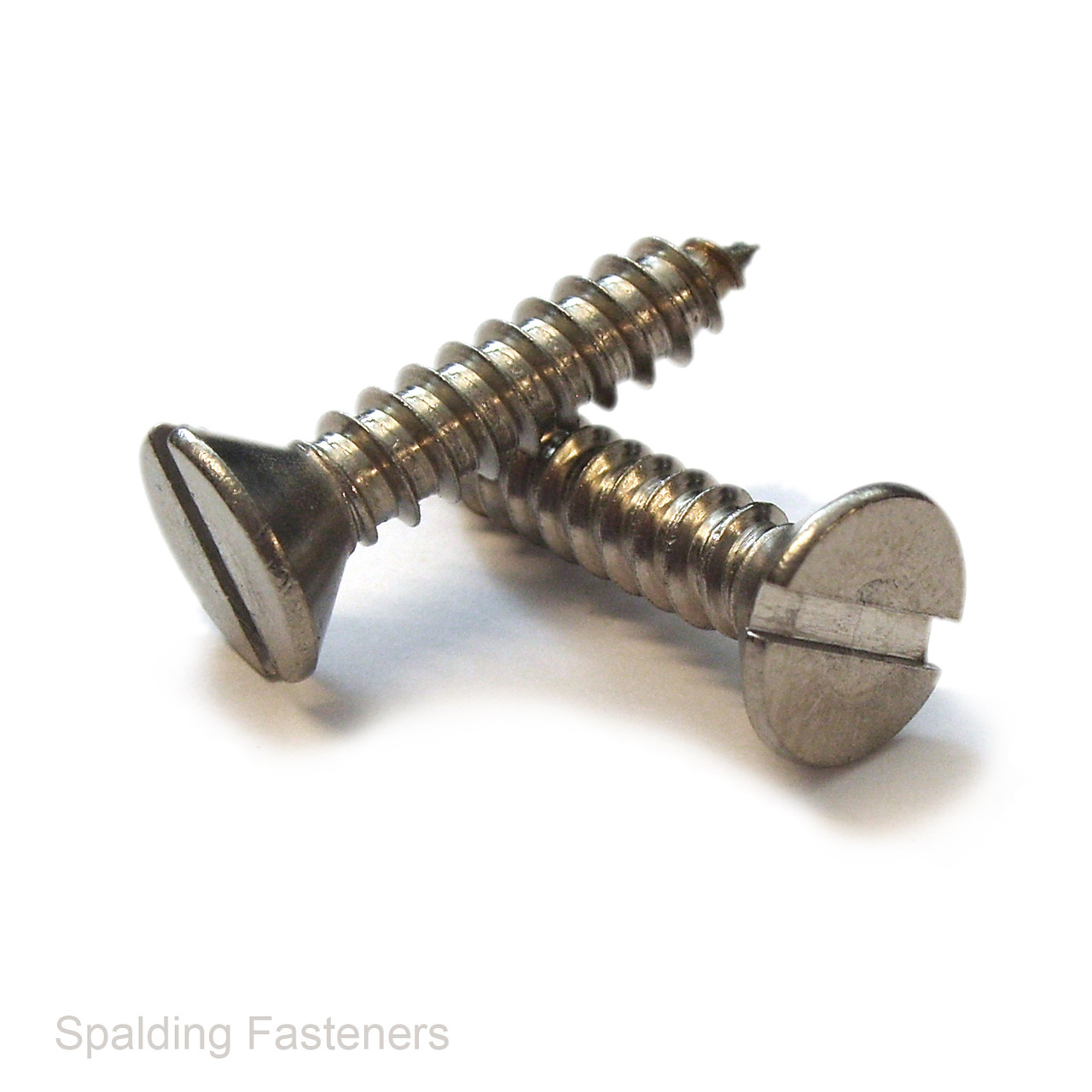

No.8 A4 Marine Stainless Steel Countersunk Slotted Self Tapping Screws – DIN 7972C
No.8 / 4.2mm self tapping screws manufactured from A4 marine grade stainless steel to DIN 7972C. Featuring a countersunk head, traditional slotted drive and Type C pointed tip, these screws are available in 25mm overall length.
The countersunk head provides a flush finish in a correctly prepared recess. A4 stainless steel offers corrosion resistance for outdoor and marine fittings where the screw and base material are suitable for the application.
Specifications
| Product type | Countersunk slotted self tapping screw |
|---|---|
| Standard | DIN 7972C |
| Material | A4 marine grade stainless steel |
| Nominal size | No.8 / ST4.2 |
| Nominal thread diameter | 4.2mm |
| Thread pitch | 1.4mm |
| Head style | Countersunk |
| Drive type | Slotted |
| Point style | Type C – cone point |
| Overall length | 25mm |
| Length measurement | Includes the countersunk head |
Key Features
- A4 marine grade stainless steel construction.
- DIN 7972C countersunk self tapping design.
- Traditional slotted screwdriver drive.
- Pointed tip for starting in a correctly sized pilot hole.
- No.8 / 4.2mm diameter with 25mm overall length.
Typical Applications
- Marine and coastal fittings.
- Outdoor panels, covers and trim.
- Maintenance and restoration requiring slotted fasteners.
- Suitable sheet material and plastic assemblies.
Selection and Installation
Prepare a pilot hole appropriate to the base material and its thickness, together with a matching countersink where a flush head is required. These self tapping screws require a prepared hole and do not have a drill-point tip.
Use a flat-bladed screwdriver that fits the slot correctly. Tighten carefully to seat the head without damaging the screw or stripping the formed thread.
Pack Sizes and Ordering
Available pack quantities: 5, 10, 20, 50, 100, 250, 500 and 1,000 screws. Select the required pack quantity. Supplied as screws only.
Standards
- DIN 7972C – slotted countersunk head tapping screws with cone point.
- Thread size – ST4.2 with 1.4mm pitch.
