Product Description

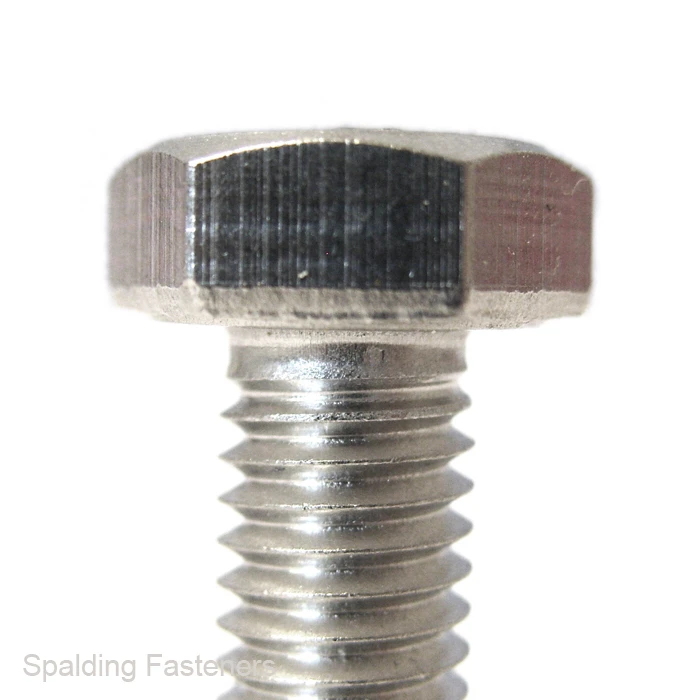

M7 x 1 A2 Stainless Steel Hexagon Set Screws
These M7 A2 stainless steel hexagon set screws feature a fully threaded shank and a standard 1mm metric coarse thread. M7 is a less commonly encountered metric diameter, making these fasteners particularly useful for maintaining machinery, vehicles and equipment originally designed around an M7 thread.
Manufactured from A2 stainless steel, they provide good resistance to moisture and everyday atmospheric corrosion. The screws are listed to DIN 933 dimensions, with ISO 4017 / BS EN ISO 4017 being the current corresponding standard for fully threaded hexagon head screws.
Product Details
- Thread diameter: M7
- Thread pitch: 1mm
- Thread type: Metric coarse
- Material: A2 stainless steel
- Head style: External hexagon head
- Thread coverage: Fully threaded
- Legacy dimensional standard: DIN 933
- Current corresponding standard: ISO 4017 / BS EN ISO 4017
- Available lengths: 10mm to 70mm
- Length measurement: From beneath the head
Available Sizes
| Thread Size | Length | Thread Pitch | Material | Thread Coverage |
|---|---|---|---|---|
| M7 | 10mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 16mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 20mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 25mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 30mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 35mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 40mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 45mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 50mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 60mm | 1mm | A2 stainless steel | Fully threaded |
| M7 | 70mm | 1mm | A2 stainless steel | Fully threaded |
Screw length is measured from beneath the hexagon head to the end of the threaded shank.
Benefits of A2 Stainless Steel
- Good resistance to moisture and atmospheric corrosion
- Suitable for many indoor and general outdoor applications
- No protective zinc coating to chip or wear away
- Clean appearance suitable for exposed installations
- Fully threaded design provides maximum adjustment and engagement
Typical Applications
- Automotive and motorcycle repairs
- European machinery and equipment
- Restoration and replacement work
- Brackets, panels and equipment enclosures
- Fabrication and workshop projects
- General maintenance and engineering
Installation Guidance
Confirm that the mating nut or tapped hole has an M7 x 1 metric thread before installation. M7 fasteners must not be forced into M6, M8 or similarly sized imperial threads.
Use a correctly fitting spanner or socket. Stainless steel threads can gall or seize when assembled quickly, without lubrication or under high tightening pressure. A suitable anti-seize compound may be beneficial where the fasteners will be repeatedly fitted and removed.
A2 stainless steel is suitable for many general applications but may not be appropriate for prolonged exposure to seawater, salt spray or strongly chlorinated environments. A4 stainless steel should be considered for demanding marine and chloride-rich conditions.
Please select the required screw length and pack quantity from the options provided.
